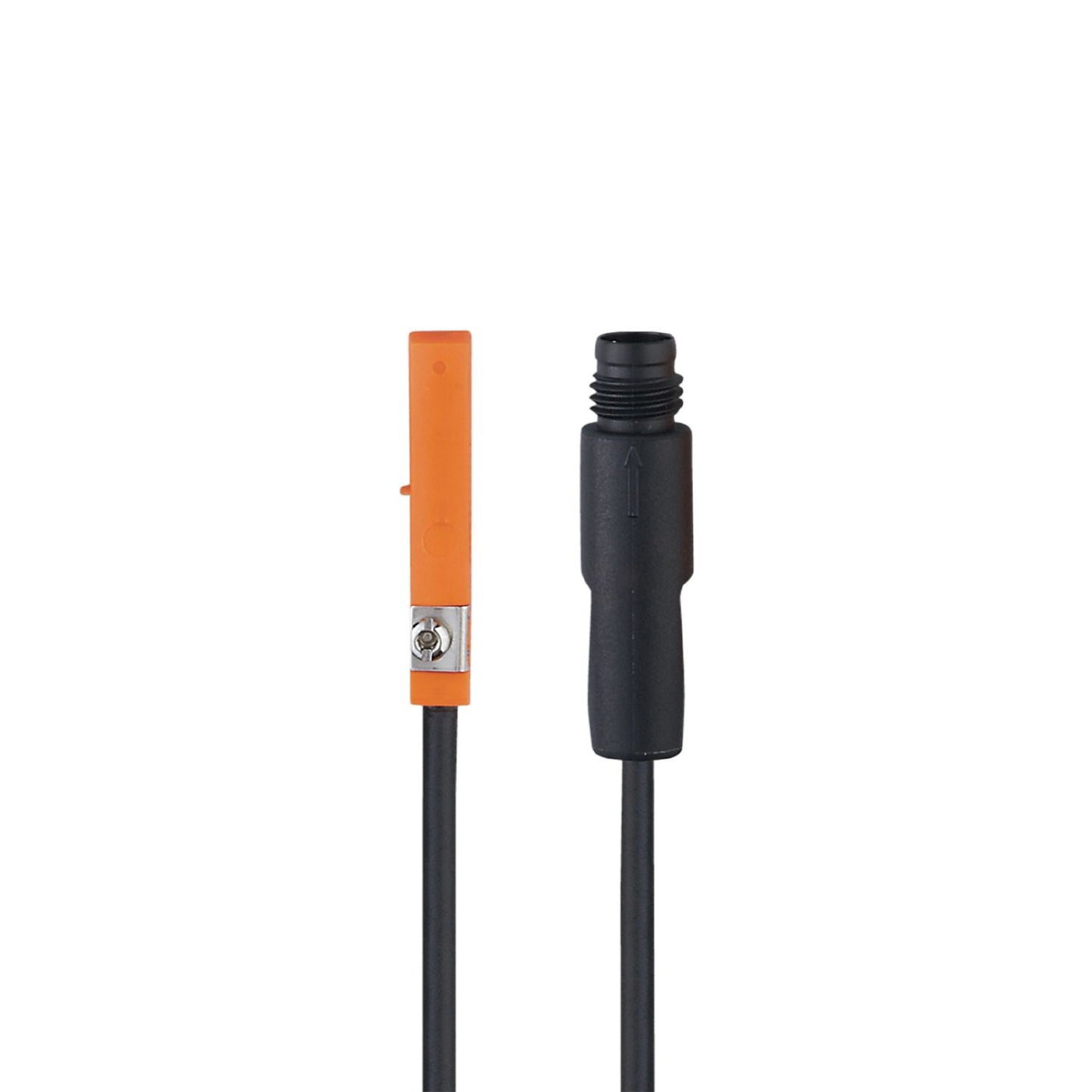

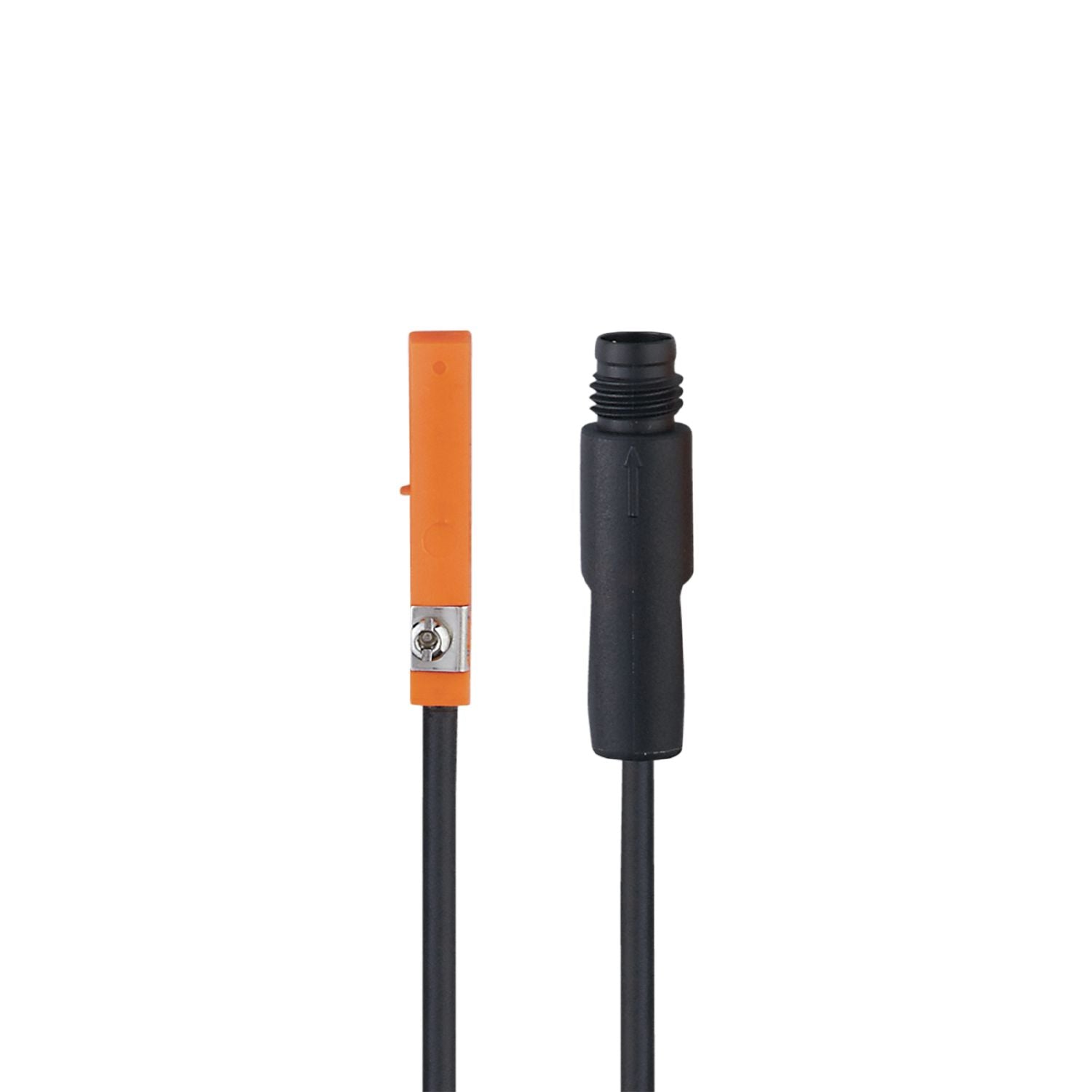

Self-locking fixture for quick mounting and easy adjustment. Easy fit 'drop from the top' into a slot. Moulded cable ensuring very good strain relief. Three-wire version for applications with high load currents. Very high switching frequency
Permanent current rating of switching output AC [mA]
350
Permanent current rating of switching output DC [mA]
500
Switching frequency AC [Hz]
1000
Switching frequency DC [Hz]
1000
Max. switching power [W]
10
Short-circuit protection
no
Short-circuit proof
no
Overload protection
no
Detection zone
Response sensitivity [mT]
3.8
Travel speed [m/s]
10
Accuracy / deviations
Hysteresis [mm]
1
Repeatability [mm]
< 0.2
Response times
Max. fall time [ms]
0.1
Max. make time incl. bounce [ms]
0.6
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
- CD / 8 kV AD
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-4 Burst
2 kV
EN 61000-4-6 HF conducted
10 V
EN 55011
class B
MTTF [years]
20384
UL approval
UL Approval no.
C004
Weight [g]
12.3
Mounting
flush mountable
Cylinder type
T-slot cylinders
Dimensions [mm]
30.5 x 5 x 6.5
Materials
PA; fastening clamp: stainless steel
Displays / operating elements
Display
switching status
1 x LED, yellow
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 0,75 A; fast acting; DC operation; ≤ 0,6 A; fast acting; AC operation
Accessories
Items supplied
rubber placeholder: 1
Cable clip: 1
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection - plug
Cable: 0.3 m, PUR
Connector: 1 x M8; coding: A; Locking: snap-fit
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MR0129-00 — 13.04.2023 —
