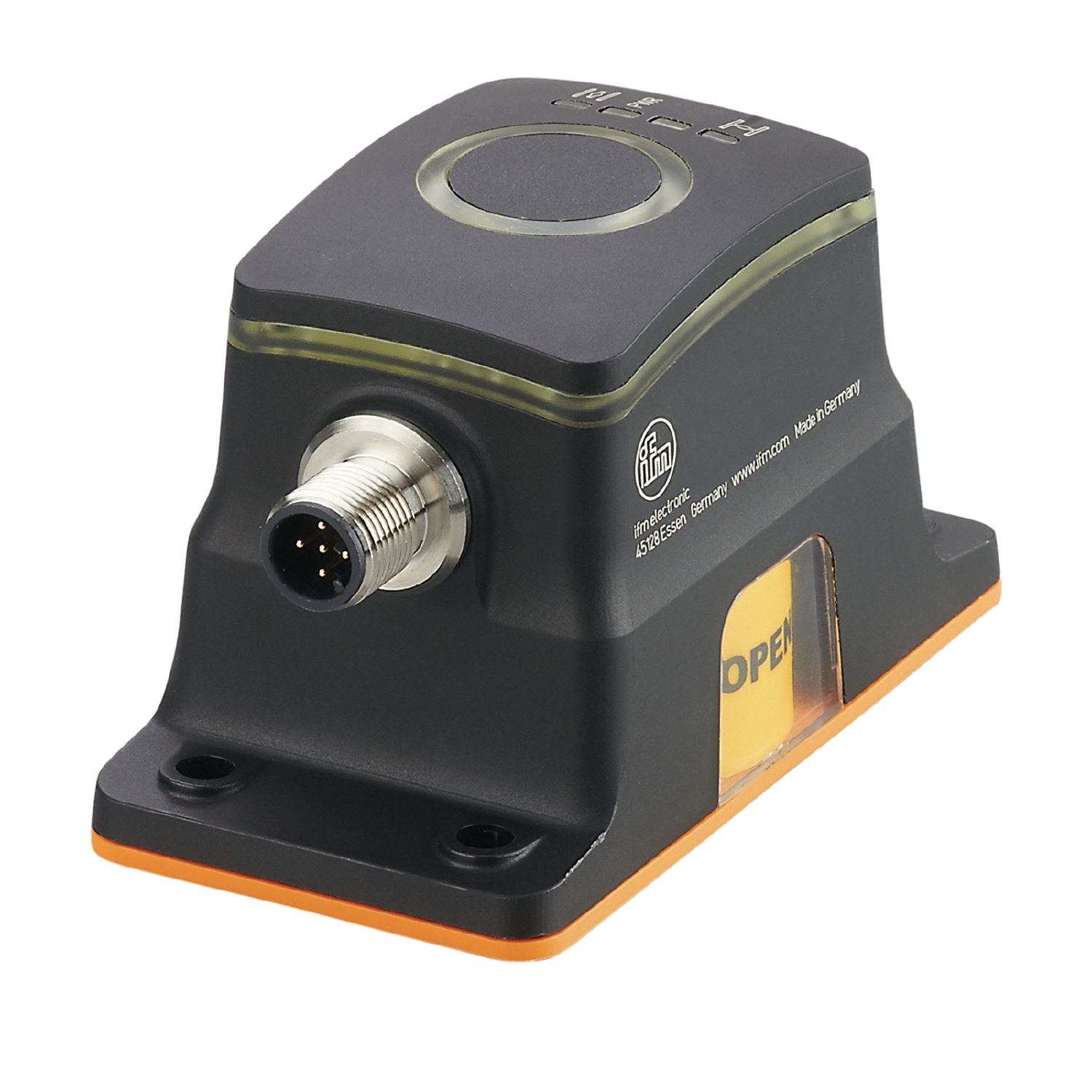

configurable RGB LED for a fast visual localisation of the sensor. End position setting with just one click for quick set-up. Self-diagnostics regarding wear, blockages or deposits for preventive maintenance
Electrical design
PNP
Output function
3 x normally open / normally closed;(selectable)
Communication interface
IO-Link
Housing
rectangular
Dimensions [mm]
95 x 50 x 57
Operating principle
magnetic
Application
angle of rotation detection absolute
Operating voltage [V]
10...30 DC
Current consumption [mA]
< 40
Protection class
III
Reverse polarity protection
yes
Max. power-on delay time [ms]
300
Outputs
Electrical design
PNP
Output function
3 x normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
100
Short-circuit protection
yes
Overload protection
yes
Detection zone
Detection zone [°]
360
Accuracy / deviations
Accuracy [°]
± 1
Resolution [°]
0.1
Tolerance [°]
0.1...15;(Default 10)
Hysteresis [°]
0.1...5;(Default 3)
Temperature drift [°/K]
0,02
Repeatability [°]
0,1
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9 CDV
Profiles
Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable; Blob; Measurement Data Channel
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
4
Supported DeviceIDs
Type of operation
DeviceID
default
595
Operating conditions
Ambient temperature [°C]
-25...70
Protection
IP 65; IP 67;(Target puck area dust-protected)
Tests / approvals
EMC
EN 61000-4-2
4 kV CD / 8 kV AD
EN 61000-4-3
10 V/m
EN 61000-4-4
2 kV
EN 61000-4-6
10 V
EN 55011
class B
Vibration resistance
EN 60068-2-6 Fc
1 mm (10...55 Hz) / 1 octave per minute in 3 axes
Shock resistance
EN 60068-2-27 Ea
30 g 11 ms half sine; 6 shocks each in every direction along the three coordinate axes
MTTF [years]
410
Embedded software included
yes
UL approval
UL Approval no.
S001
Weight [g]
175
Housing
rectangular
Dimensions [mm]
95 x 50 x 57
Materials
PA
Tightening torque [Nm]
1.5
Displays / operating elements
Display
operation
1 x LED, green
switching status
2 x LED, white RGB
Accessories
Items supplied
socket head screws: 4 x M5 x 16, stainless steel
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Connector: 1 x M12; coding: A; Moulded body: stainless steel
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — MVQ101-00 — 25.08.2023 —
