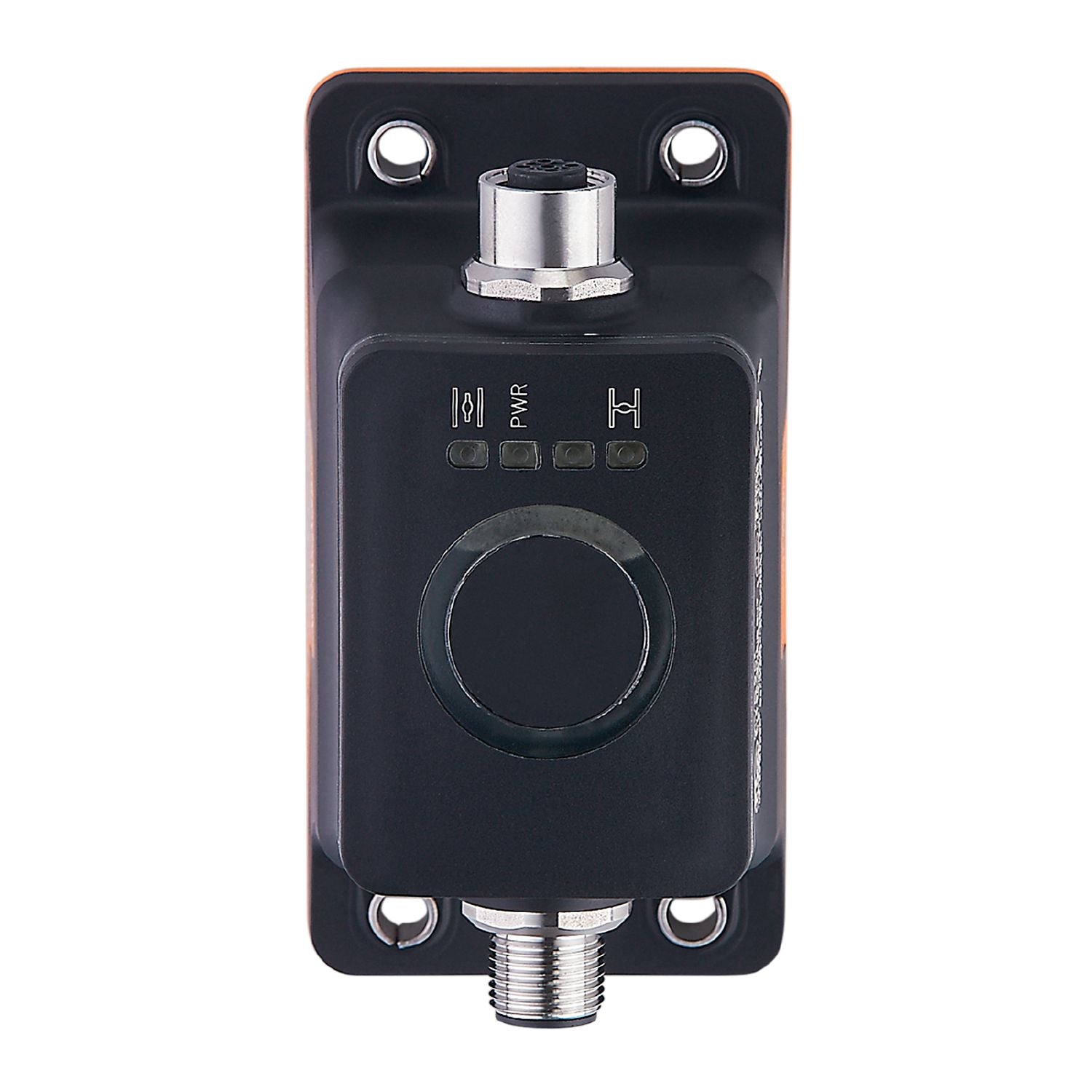

IFM MVQ201 - Position sensor for valve actuators SVS SOLENOID OUT

Reduced wiring due to direct control of the control valve.
Self-diagnostics regarding wear, blockages or deposits for preventive maintenance.
End position setting with just one click for quick set-up.
LED flash mode for a fast visual localisation of the sensor

Electrical design	PNP
Output function	2 x normally open / normally closed;(selectable)
Communication interface	IO-Link
Housing	rectangular
Dimensions [mm]	95 x 50 x 57

Output function	2 x normally open

Operating principle	magnetic
Application	angle of rotation detection absolute

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 40
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	300

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 1; Number of digital outputs: 2

Inputs

Number of digital inputs	1

Outputs

Electrical design	PNP
Number of digital outputs	2
Output function	2 x normally open / normally closed;(selectable)
Max. voltage drop switching output DC [V]	2.5
Max. current load per output [mA]	100
Short-circuit protection	yes
Overload protection	yes

Output function	2 x normally open
Max. current load per output [mA]	200
Short-circuit protection	yes
Overload protection	yes

Detection zone

Detection zone [°]	360

Accuracy / deviations

Accuracy [°]	± 1
Resolution [°]	0.1
Tolerance [°]	0.1...15;(Default 10)
Hysteresis [°]	0.1...5;(Default 3)
Temperature drift [°/K]	0,02
Repeatability [°]	0,1

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9 CDV
Profiles	Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable; Blob; Measurement Data Channel
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	4
Supported DeviceIDs	Type of operation DeviceID default 1190

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 65; IP 67;(Target puck area dust-protected)

Tests / approvals

EMC	EN 61000-4-2 4 kV CD / 8 kV AD EN 61000-4-3 10 V/m EN 61000-4-4 2 kV EN 61000-4-6 10 V EN 55011 class B
Vibration resistance	EN 60068-2-6 Fc 1 mm (10...55 Hz) / 1 octave per minute in 3 axes
Shock resistance	EN 60068-2-27 Ea 30 g 11 ms half sine; 6 shocks each in every direction along the three coordinate axes
MTTF [years]	363
Embedded software included	yes
UL approval	UL Approval no. S002

Weight [g]	192
Housing	rectangular
Dimensions [mm]	95 x 50 x 57
Materials	PA
Tightening torque [Nm]	3

Displays / operating elements

Display	operation 1 x LED, green switching status 2 x LED, white 1 x LED, RGB

Accessories

Items supplied	socket head screws: 4 x M5 x 16, stainless steel

Pack quantity	1 pcs.

Electrical connection - solenoid valve

	Connector: 1 x M12; coding: A; Moulded body: stainless steel
