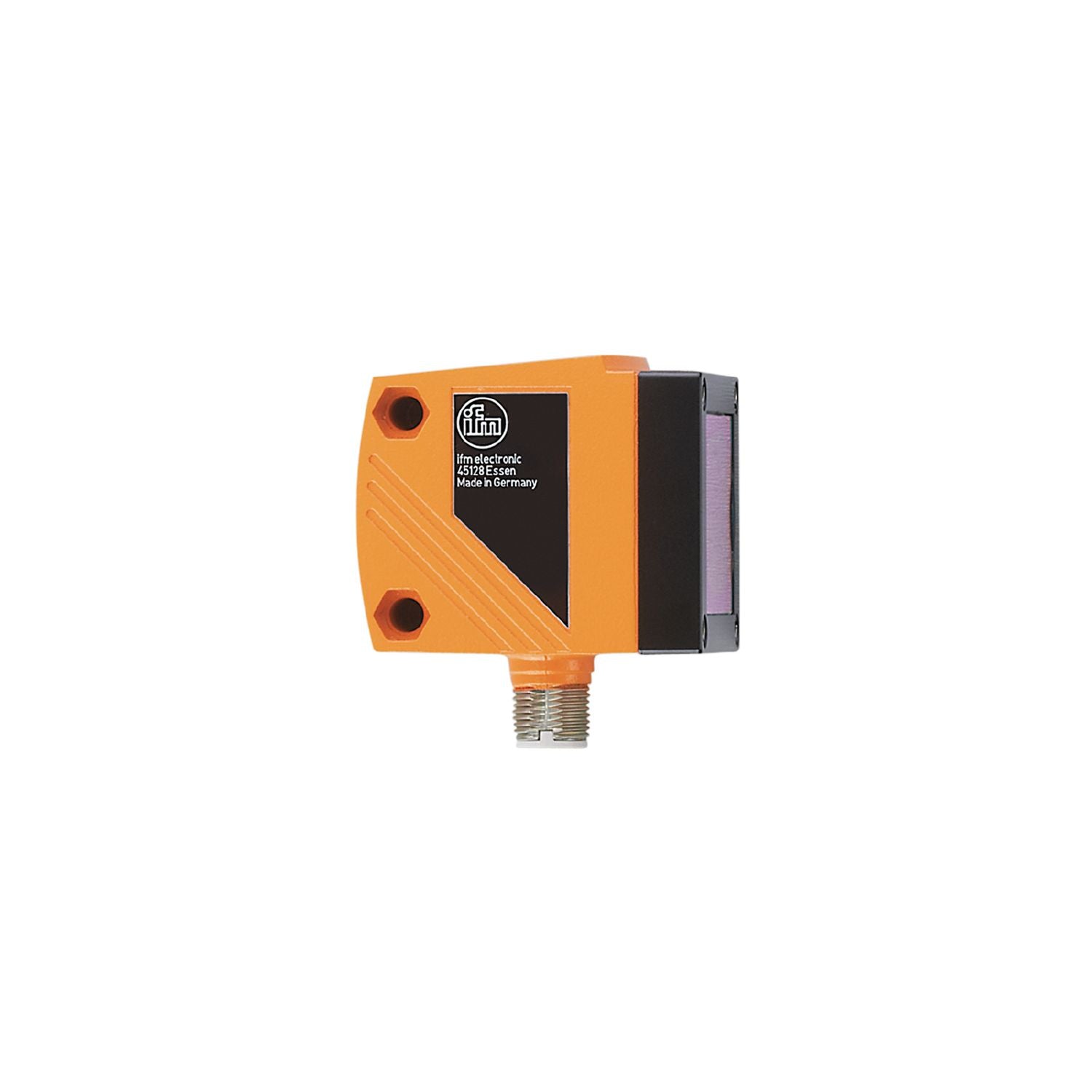

Reliable optical distance measurement. Two switching outputs, one of them programmable as analogue output. Scalable measuring range and window function. Use in applications with background suppression. Excellent price/performance ratio
Laser protection class
2
Housing
rectangular
Operating voltage [V]
18...30 DC
Current consumption [mA]
< 150
Protection class
III
Reverse polarity protection
yes
Typ. lifetime [h]
50000
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Electrical design
PNP
Number of digital outputs
2
Output function
normally open / normally closed;(programmable)
Max. current load per output [mA]
200
Number of analogue outputs
1
Analogue current output [mA]
4...20; (IEC 61131-2)
Max. load [Ω]
250
Analogue voltage output [V]
0...10; (IEC 61131-2)
Min. load resistance [Ω]
5000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Max. light spot width [mm]
6
Max. light spot height [mm]
6
Light spot dimensions refer to
3,5 m
Background suppression [m]
0...4
Measuring/setting range
Measuring range [m]
0.2...3.5;(black glossy surfaces)
Sampling rate [Hz]
1...50;(preset: 5)
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode
yes
Required master port type
A
Process data analogue
2
Process data binary
3
Min. process cycle time [ms]
6
Supported DeviceIDs
Type of operation
DeviceID
default
808
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
2
Notes on laser protection
Caution:
laser light
Power:
<= 4,0 mW
Wave length:
650 nm
pulse:
1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class:
2
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
173
Weight [g]
241.7
Housing
rectangular
Dimensions [mm]
59 x 42 x 52
Materials
housing: diecast zinc; front pane: glass; LED window: PC
Lens alignment
side lens
Displays / operating elements
Display
switching status
2 x LED, yellow
operation
LED, green
distance value, programming
alphanumeric display, 4-digit
Accessories
Accessories (optional)
Protective cover, E21133
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Other data
Parameter
Setting range
Factory setting
Uni
mm, m, inch
mm
OU1
Hno, Hnc, Fno, Fnc
Hno
SP1 [mm]
200...3500
1000
nSP1 [mm]
200...3500
800
FSP1 [mm]
200...3500
1200
OU2
Hno, Hnc, Fno, Fnc, I, U
I
SP2 [mm]
200...3500
2000
nSP2 [mm]
200...3500
1800
FSP2 [mm]
200...3500
2200
ASP [mm]
0...3500
0
AEP [mm]
0...3500
3500
rATE [Hz]
1...50
5
dS1 [s]
0...0.1...5
0
dr1 [s]
0...0.1...5
0
dS2 [s]
0...0.1...5
0
dr2 [s]
0...0.1...5
0
dFo [s]
0...0.1...5
0
dIS
d1...3 ; rd1...3; OFF
d3
repeatability of the measured values
accuracy
white (90 % remission)
grey (18 % remission)
white (90 % remission)
grey (18 % remission)
200...1000 mm
± 6.5 mm
±7.5 mm
± 32 mm
± 40 mm
1000...2000 mm
± 8 mm
±9.5 mm
± 33 mm
± 40 mm
2000...3000 mm
± 17 mm
±19 mm
± 42 mm
± 50 mm
3000...3500 mm
± 23 mm
±25 mm
± 50 mm
± 55 mm
The values apply at
constant ambient conditions
23 °C / 960 hPa
minimum power-on time in minutes
10
