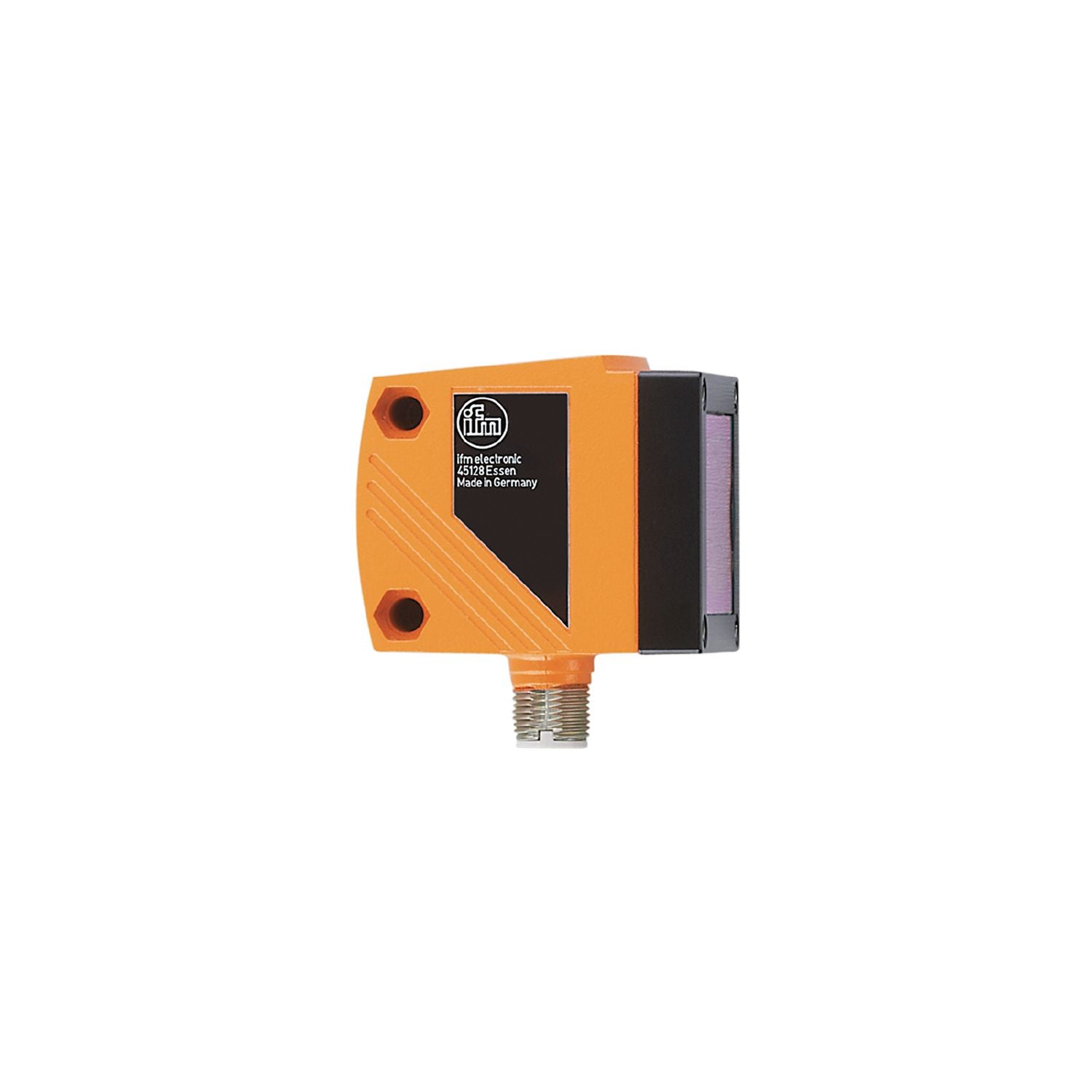

Reliable optical object detection with high ranges up to 10 m. Precise background suppression. Scalable measuring range and window function. Use in applications with background suppression. Excellent price/performance ratio
Laser protection class
2
Special feature
Background suppression
Operating voltage [V]
18...30 DC
Current consumption [mA]
< 150
Protection class
III
Reverse polarity protection
yes
Typ. lifetime [h]
50000
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 1
Outputs
Total number of outputs
1
Electrical design
NPN
Number of digital outputs
1
Output function
normally open / normally closed;(programmable)
Max. current load per output [mA]
200
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Max. light spot width [mm]
15
Max. light spot height [mm]
15
Light spot dimensions refer to
10 m
Background suppression available
yes
Background suppression [m]
10...100
Measuring/setting range
Measuring range [m]
0.2...10;(white paper 200 x 200 mm 90% remission)
Sampling rate [Hz]
5
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
Profiles
Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode
yes
Required master port type
A
Process data analogue
2
Process data binary
1
Min. process cycle time [ms]
6
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 67
Tests / approvals
Laser protection class
2
Notes on laser protection
Caution:
laser light
Power:
<= 4,0 mW
Wave length:
650 nm
pulse:
1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class:
2
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
106
Weight [g]
285.5
Dimensions [mm]
59 x 42 x 52
Materials
housing: diecast zinc; front pane: glass; LED window: PC
Displays / operating elements
Display
switching status
LED, yellow
operation
LED, green
distance value, programming
alphanumeric display, 4-digit
Accessories
Accessories (optional)
Protective cover, E21133
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
