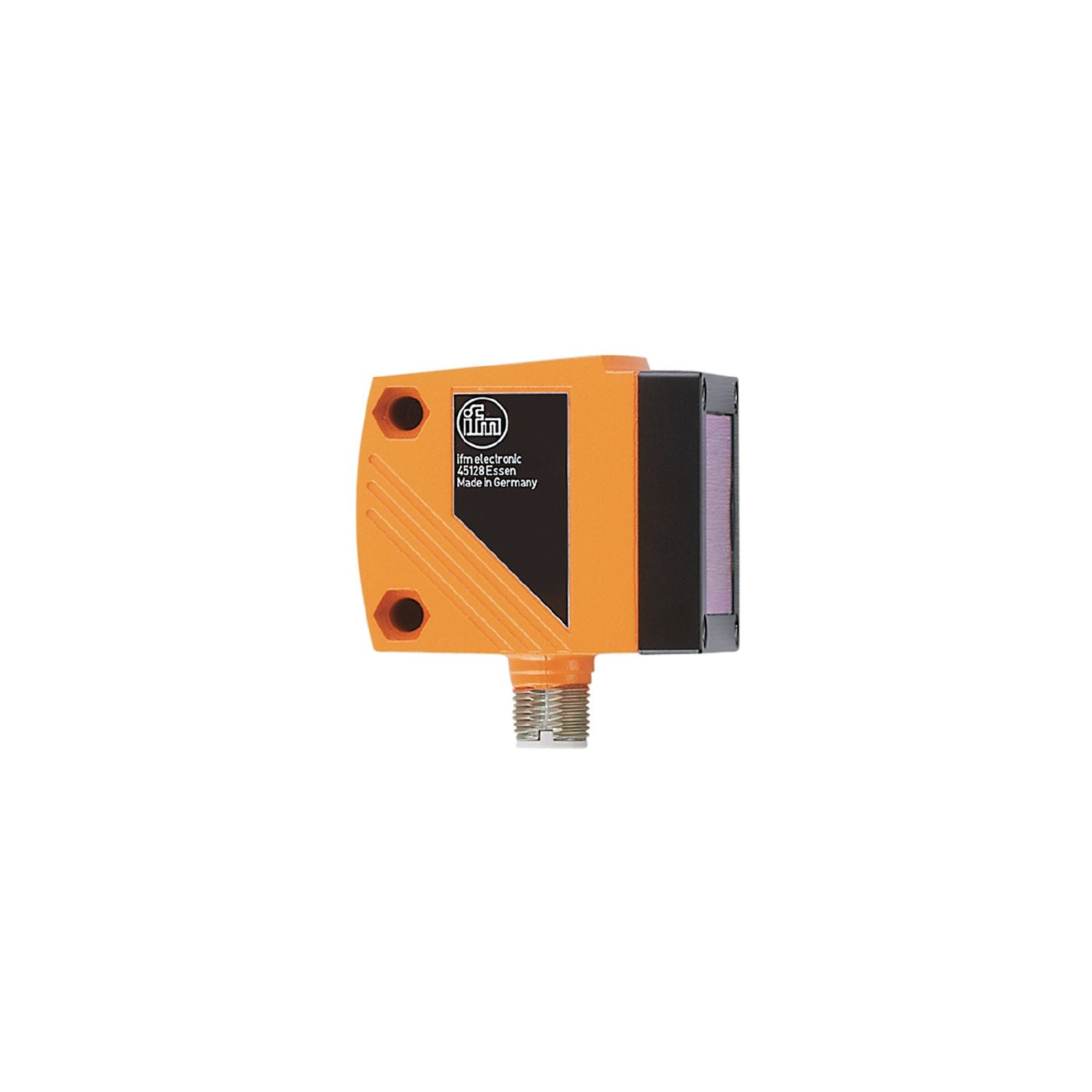

Reliable optical distance measurement. Range up to 75 m for use on cranes. Two switching outputs, one of them programmable as analogue output. Excellent price/performance ratio. Wide range of components for quick mounting and precise fine adjustment
Laser protection class
2
Housing
rectangular
Operating voltage [V]
18...30 DC
Current consumption [mA]
< 150
Protection class
III
Reverse polarity protection
yes
Typ. lifetime [h]
50000
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Electrical design
PNP
Number of digital outputs
2
Output function
normally open / normally closed;(programmable)
Max. current load per output [mA]
200
Number of analogue outputs
1
Analogue current output [mA]
4...20; (scalable IEC 61131-2)
Max. load [Ω]
250
Analogue voltage output [V]
0...10; (scalable IEC 61131-2)
Min. load resistance [Ω]
5000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Max. light spot width [mm]
150
Max. light spot height [mm]
150
Light spot dimensions refer to
75 m
Background suppression [m]
75...150
Measuring/setting range
Measuring range [m]
1...75;(Reflector E21159)
Sampling rate [Hz]
1...33
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode
yes
Required master port type
A
Process data analogue
1
Process data binary
2
Min. process cycle time [ms]
6
Supported DeviceIDs
Type of operation
DeviceID
default
810
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
2
Notes on laser protection
Caution:
laser light
Power:
<= 4,0 mW
Wave length:
650 nm
pulse:
1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class:
2
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
106
Weight [g]
312
Housing
rectangular
Dimensions [mm]
59 x 42 x 52
Materials
housing: diecast zinc; front pane: glass; LED window: PC
Lens alignment
side lens
Displays / operating elements
Display
switching status
2 x LED, yellow
operation
LED, green
distance value, programming
alphanumeric display, 4-digit
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Other data
Parameter
Setting range
Factory setting
Uni
m, feet
m
OU1
Hno, Hnc, Fno, Fnc
Hno
SP1
1.00...75.00
10.00
nSP1
1.00...75.00
8.00
FSP1
1.00...75.00
12.00
OU2
Hno, Hnc, Fno, Fnc, I, U
I
SP2
1.00...75.00
20.00
nSP2
1.00...75.00
18.00
FSP2
1.00...75.00
22.00
ASP
0...75.00
0
AEP
0...75.00
75.00
rATE [Hz]
1...33
15
dS1
0...0.1...5
0
dr1
0...0.1...5
0
dS2
0...0.1...5
0
dr2
0...0.1...5
0
dFo
0...0.1...5
0.2
dIS
d1...3; rd1...3; OFF
d3
repeatability/accuracy
repeatability of the measured values
accuracy
1...25 m
± 15 mm
± 35 mm
30 m
± 15 mm
± 35 mm
40 m
± 15 mm
± 35 mm
50 m
± 19 mm
± 39 mm
60 m
± 27 mm
± 47 mm
70 m
± 43 mm
± 63 mm
Sampling rate
Reflector
33 Hz
repeatability/accuracy
repeatability of the measured values
accuracy
1...75 m
± 15 mm
± 35 mm
Sampling rate
Reflector
1 Hz
The values apply at
Extraneous light on the object
< 100 klx
constant ambient conditions
23 °C / 960 hPa
minimum power-on time in minutes
10
