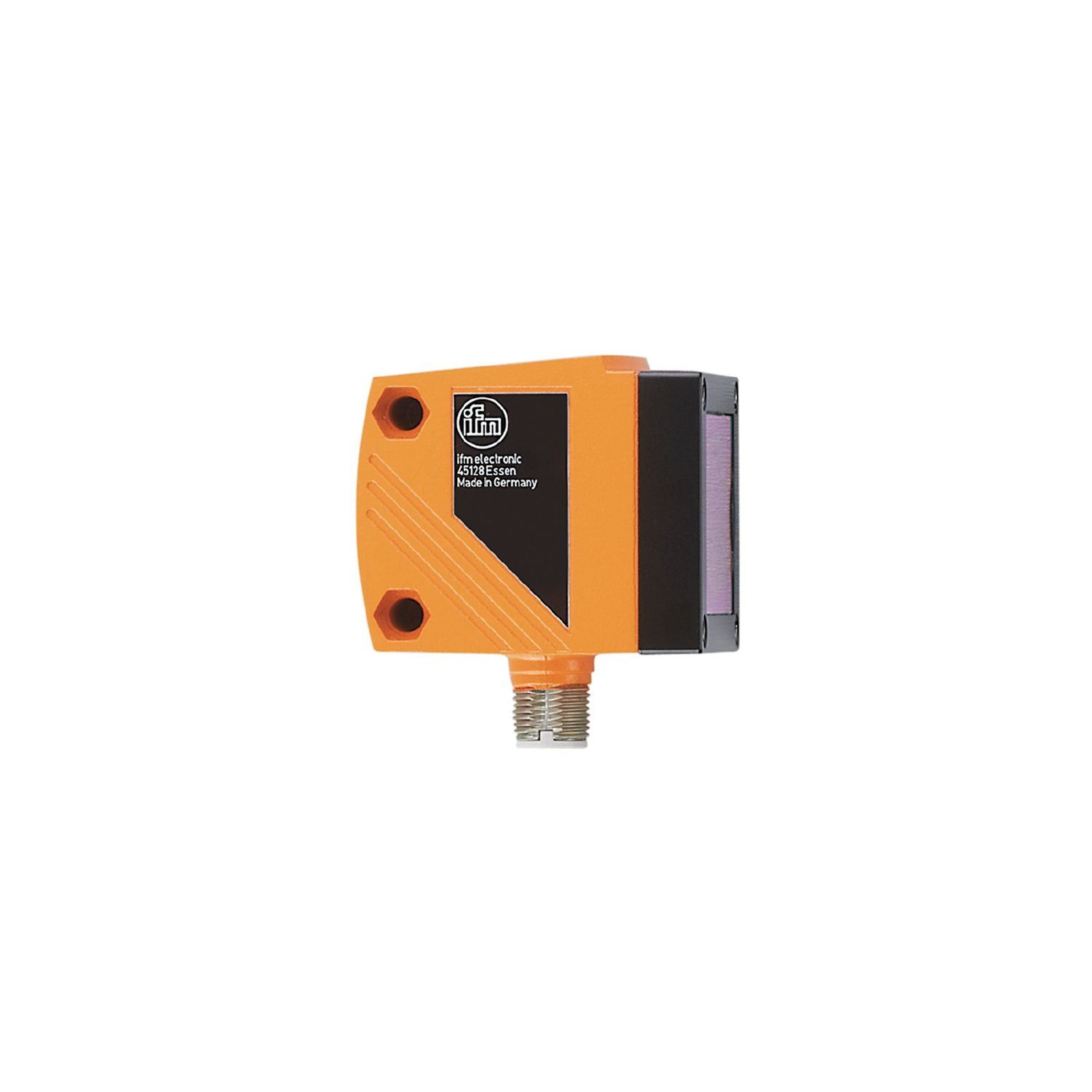

Reliable optical distance measurement with background suppression. Two switching outputs, one of them programmable as analogue output. Scalable measuring range and window function. Use in applications with background suppression. Excellent price/performance ratio
Laser protection class
2
Housing
rectangular
Application [m]
0.2...100
Operating voltage [V]
18...30 DC;("supply class 2" to cULus)
Current consumption [mA]
< 150
Protection class
III
Reverse polarity protection
yes
Typ. lifetime [h]
50000
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Electrical design
PNP
Number of digital outputs
2
Output function
normally open / normally closed;(programmable)
Max. current load per output [mA]
200
Number of analogue outputs
1
Analogue current output [mA]
4...20; (IEC 61131-2)
Max. load [Ω]
250
Analogue voltage output [V]
0...10; (IEC 61131-2)
Min. load resistance [Ω]
5000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Max. light spot width [mm]
25
Max. light spot height [mm]
25
Light spot dimensions refer to
18 m
Background suppression [m]
< 100
Measuring/setting range
Measuring range [m]
0.2...18;(white paper 200 x 200 mm 90% remission)
Sampling rate [Hz]
1...33
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode
yes
Required master port type
A
Process data analogue
2
Process data binary
2
Min. process cycle time [ms]
6
Supported DeviceIDs
Type of operation
DeviceID
default
811
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
2
Notes on laser protection
Caution:
laser light
Power:
<= 4,0 mW
Wave length:
650 nm
pulse:
1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class:
2
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
106
Weight [g]
305
Housing
rectangular
Dimensions [mm]
59 x 42 x 52
Materials
housing: diecast zinc; front pane: glass; LED window: PC
Lens alignment
side lens
Displays / operating elements
Display
switching status
2 x LED, yellow
operation
LED, green
distance value, programming
alphanumeric display, 4-digit
Accessories
Accessories (optional)
Protective cover, E21133
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Other data
Parameter
Setting range
Factory setting
Uni
m, inch
m
OU1
Hno, Hnc, Fno, Fnc
Hno
SP1
0.20...18.00
1.00
nSP1
0.20...18.00
0.80
FSP1
0.20...18.00
1.20
OU2
Hno, Hnc, Fno, Fnc, I, U
I
SP2
0.20...18.00
2.00
nSP2
0.20...18.00
1.80
FSP2
0.20...18.00
2.20
ASP
0...18.00
0
AEP
0...18.00
18.00
rATE [Hz]
1...15
15
dS1
0...0.1...5
0
dr1
0...0.1...5
0
dS2
0...0.1...5
0
dr2
0...0.1...5
0
dFo
0...0.1...5
0
dIS
d1...3 ; rd1...3; OFF
d3
repeatability/accuracy
repeatability of the measured values
accuracy
white (90 % remission)
grey (18 % remission)
white (90 % remission)
grey (18 % remission)
0.20...1.0 m
± 0.45 cm
± 0.6 cm
± 1.5 cm
± 1.6 cm
1.00...2.00 m
± 0.5 cm
± 0.8 cm
± 1.5 cm
± 1.8 cm
2.00...4.00 m
± 1.25 cm
± 1.9 cm
± 2.25 cm
± 3.0 cm
4.00...6.00 m
± 2.0 cm
± 3.0 cm
± 3.0 cm
± 4.0 cm
6.00...10.00 m
± 3.5 cm
± 5.0 cm
± 4.5 cm
± 6.0 cm
10.00...18.00 m
± 5.0 cm
± 6.0 cm
Sampling rate
15 Hz
Extraneous light on the object
< 10 klx
The values apply at
constant ambient conditions
23 °C / 960 hPa
minimum power-on time in minutes
10
repeatability/accuracy
repeatability of the measured values
accuracy
white (90 % remission)
grey (18 % remission)
white (90 % remission)
grey (18 % remission)
0.20...1.0 m
± 0.45 cm
± 0.6 cm
± 1.5 cm
± 1.6 cm
1.00...2.00 m
± 0.5 cm
± 0.8 cm
± 1.5 cm
± 1.8 cm
2.00...4.00 m
± 1.6 cm
± 1.9 cm
± 2.5 cm
± 3.0 cm
4.00...6.00 m
± 2.4 cm
± 3.3 cm
± 3.5 cm
± 4.5 cm
6.00...10.00 m
± 5.0 cm
± 6.5 cm
Sampling rate
15 Hz
Extraneous light on the object
< 40 klx
The values apply at
constant ambient conditions
23 °C / 960 hPa
minimum power-on time in minutes
10
In case of higher extraneous light on the object (up to 40 klx) the following specifications apply:
white (90 % remission)
grey (18 % remission)
black (6 % remission)
Measuring range
0.2...10 m
0.2...6 m
0.2...4 m
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O1D108-01 — 03.05.2023 —
