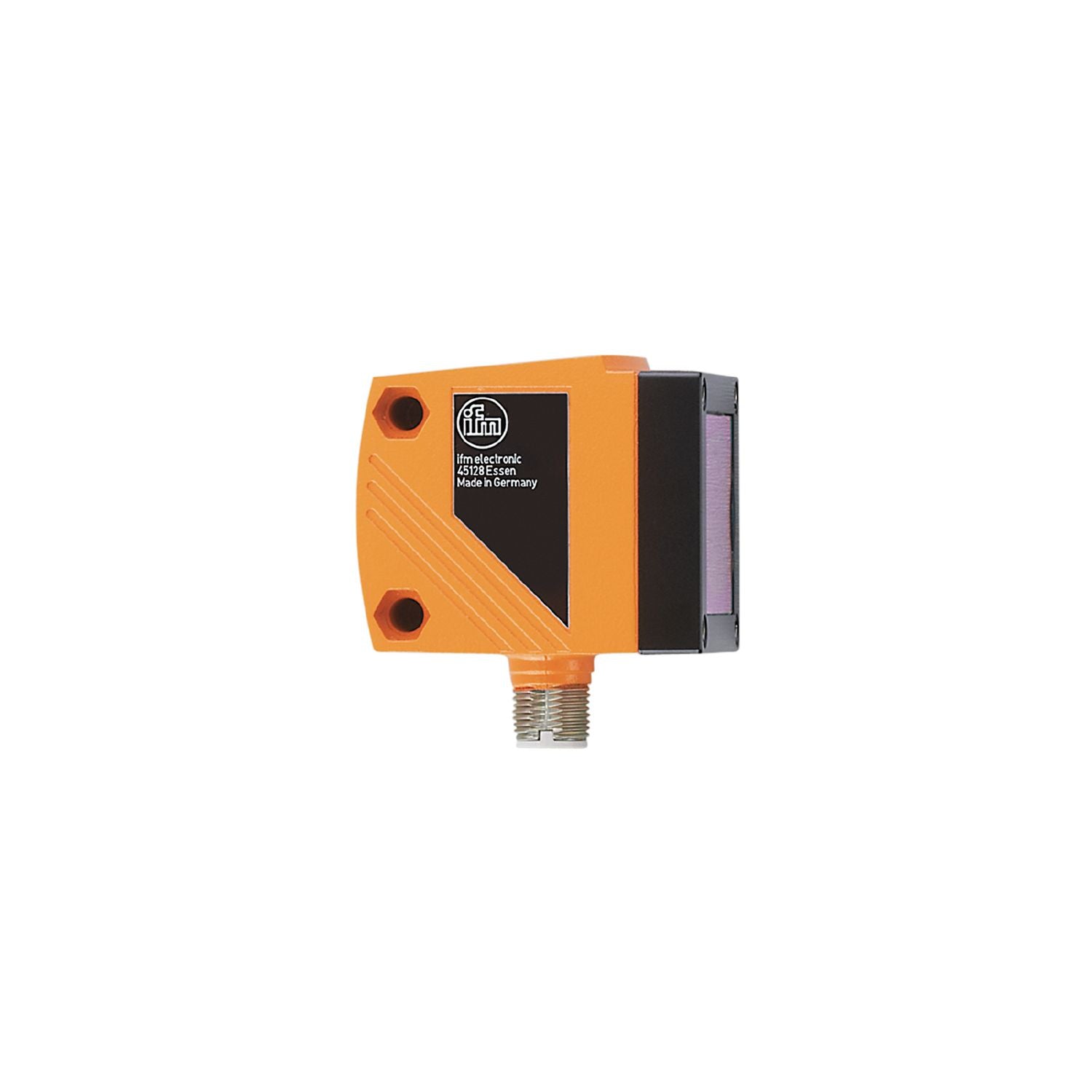

IFM O1D110 - Photoelectric distance sensor O1DLF3KG/IO-LINK

Reliable optical distance measurement with high ranges up to 10 m.
Two switching outputs, one of them programmable as analogue output.
Scalable measuring range and window function.
Use in applications with background suppression.
Excellent price/performance ratio

Laser protection class	2
Housing	rectangular

Operating voltage [V]	18...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 150
Protection class	III
Reverse polarity protection	yes
Typ. lifetime [h]	50000

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed;(programmable)
Max. current load per output [mA]	200
Number of analogue outputs	1
Analogue current output [mA]	4...20; (scalable IEC 61131-2)
Max. load [Ω]	250
Analogue voltage output [V]	0...10; (scalable IEC 61131-2)
Min. load resistance [Ω]	5000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Max. light spot width [mm]	15
Max. light spot height [mm]	15
Light spot dimensions refer to	10 m
Background suppression [m]	10...100

Measuring/setting range

Measuring range [m]	0.2...10;(white paper 200 x 200 mm 90% remission)
Sampling rate [Hz]	1...33

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable
SIO mode	yes
Required master port type	A
Process data analogue	2
Process data binary	2
Min. process cycle time [ms]	6
Supported DeviceIDs	Type of operation DeviceID default 1547

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
Laser protection class	2
Notes on laser protection	Caution: laser light Power: <= 4,0 mW Wave length: 650 nm pulse: 1,3 ns Do not stare into beam. Avoid exposure to the laser light. laser class: 2 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
UL approval	Ta -10…60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	248.1
Housing	rectangular
Dimensions [mm]	59 x 42 x 52
Materials	housing: diecast zinc; front pane: glass; LED window: PC
Lens alignment	side lens

Displays / operating elements

Display	switching status 2 x LED, yellow operation LED, green distance value, programming alphanumeric display, 4-digit

Accessories

Accessories (optional)	Protective cover, E21133

Remarks	For more information about the measuring range / application please refer to the operating instructions.
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
