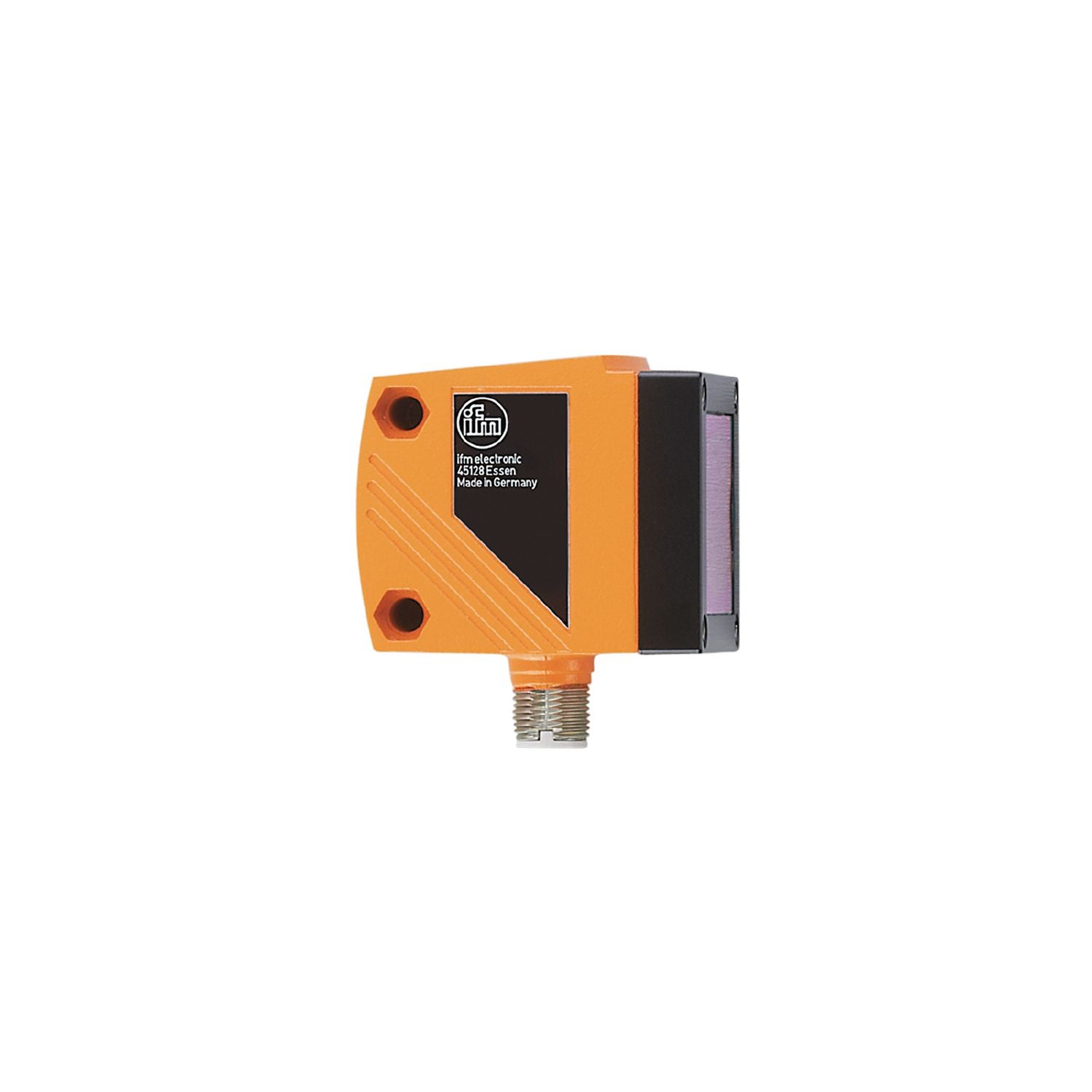

IFM O1D120 - Photoelectric distance sensor O1DLF3KG/IO-LINK

Reliable optical distance measurement with high ranges up to 10 m.
Two switching outputs, one of them programmable as IO-Link and one as analogue output.
Scalable measuring range and window function.
Use in applications with background suppression.
Excellent price/performance ratio

Laser protection class	2
Housing	rectangular

Special feature	Background suppression

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 150
Protection class	III
Reverse polarity protection	yes
Typ. lifetime [h]	50000

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed;(programmable)
Max. current load per output [mA]	200
Number of analogue outputs	1
Analogue current output [mA]	4...20
Max. load [Ω]	250
Analogue voltage output [V]	0...10
Min. load resistance [Ω]	5000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Max. light spot width [mm]	15
Max. light spot height [mm]	15
Light spot dimensions refer to	10 m
Background suppression available	yes
Background suppression [m]	0...19

Measuring/setting range

Measuring range [m]	0.2...10;(white paper 200 x 200 mm 90% remission)
Sampling rate [Hz]	1...50

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode	yes
Required master port type	A
Process data analogue	2
Process data binary	3
Min. process cycle time [ms]	6
Supported DeviceIDs	Type of operation DeviceID default 806

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
Laser protection class	2
Notes on laser protection	Caution: laser light Power: <= 4,0 mW Wave length: 650 nm pulse: 1,3 ns Do not stare into beam. Avoid exposure to the laser light. laser class: 2 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.

Weight [g]	317
Housing	rectangular
Dimensions [mm]	59 x 42 x 52
Materials	housing: diecast zinc; front pane: glass; LED window: PC
Lens alignment	side lens

Displays / operating elements

Display	switching status 2 x LED, yellow operation LED, green distance value, programming alphanumeric display, 4-digit

Accessories

Accessories (optional)	Protective cover, E21133

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
