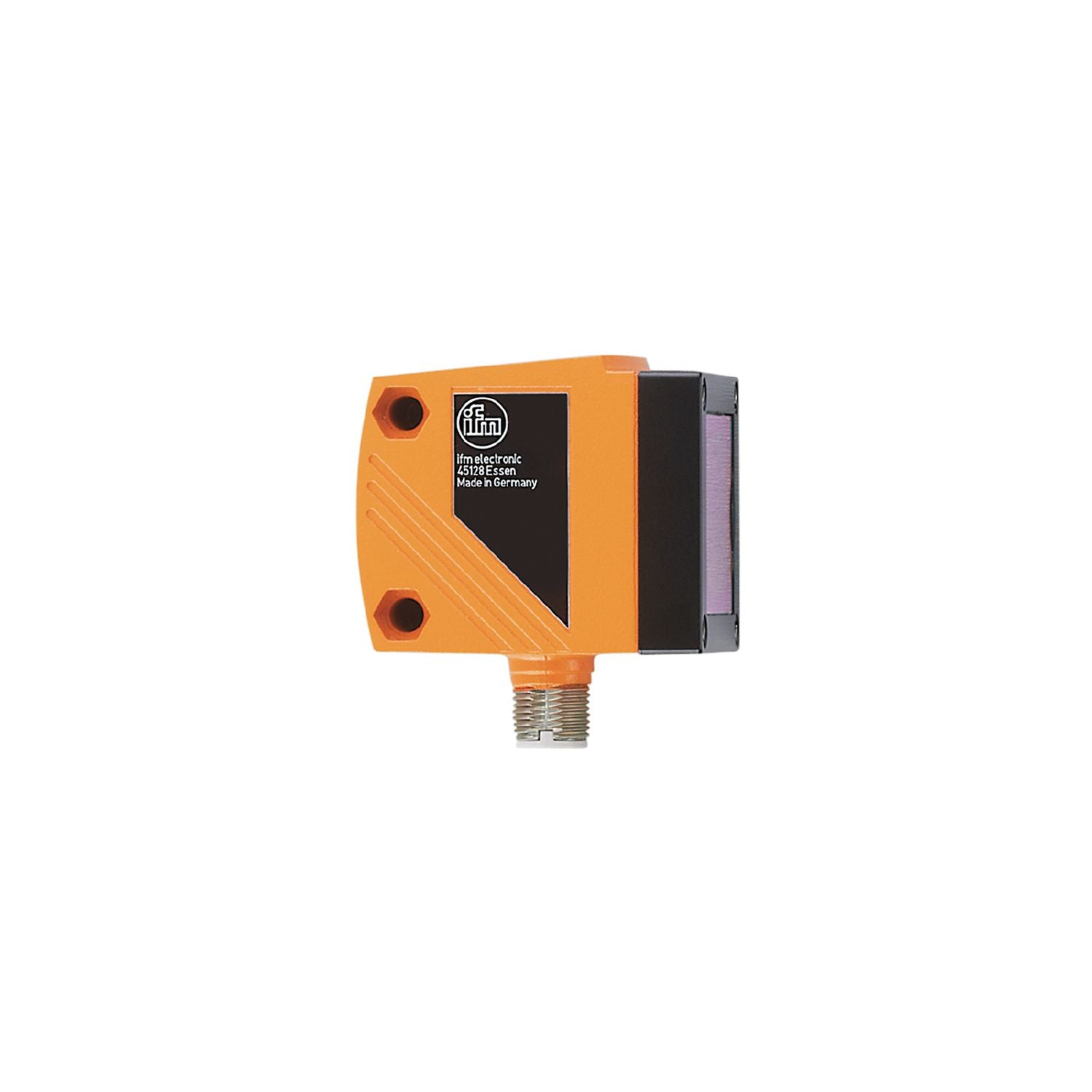

Reliable optical distance measurement with high ranges up to 10 m. Two switching outputs, one of them programmable as analogue output. Scalable measuring range and window function. Use in applications with background suppression. Temperature-controlled lens heating
Laser protection class
2
Housing
rectangular
Operating voltage [V]
23...25 DC;("supply class 2" to cULus)
Current consumption [mA]
< 150;(250: <5 °C)
Protection class
III
Reverse polarity protection
yes
Typ. lifetime [h]
50000
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Electrical design
PNP
Number of digital outputs
2
Output function
normally open / normally closed;(programmable)
Max. current load per output [mA]
200
Number of analogue outputs
1
Analogue current output [mA]
4...20; (IEC 61131-2)
Max. load [Ω]
250
Analogue voltage output [V]
0...10; (IEC 61131-2)
Min. load resistance [Ω]
5000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Max. light spot width [mm]
15
Max. light spot height [mm]
15
Light spot dimensions refer to
10 m
Background suppression [m]
< 19
Measuring/setting range
Measuring range [m]
0.2...10;(white paper 200 x 200 mm 90% remission)
Sampling rate [Hz]
1...50
Operating conditions
Ambient temperature [°C]
-26...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
2
Notes on laser protection
Caution:
laser light
Power:
<= 4,0 mW
Wave length:
650 nm
pulse:
1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class:
2
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
UL approval
Ta
-10...60 °C
Enclosure type
Type 1
power supply
Class 2
File number UL
E174191
Weight [g]
249.2
Housing
rectangular
Dimensions [mm]
59 x 42 x 52
Materials
housing: diecast zinc; front pane: glass; LED window: PC
Lens alignment
side lens
Displays / operating elements
Display
switching status
2 x LED, yellow
operation
LED, green
distance value, programming
alphanumeric display, 4-digit
Operating elements
electronic lock, activated
Accessories
Accessories (optional)
Protective cover, E21133
Remarks
Temperature-controlled lens heating
Pack quantity
1 pcs.
Electrical connection - plug
Connection
Connector: 1 x M12; coding: A
