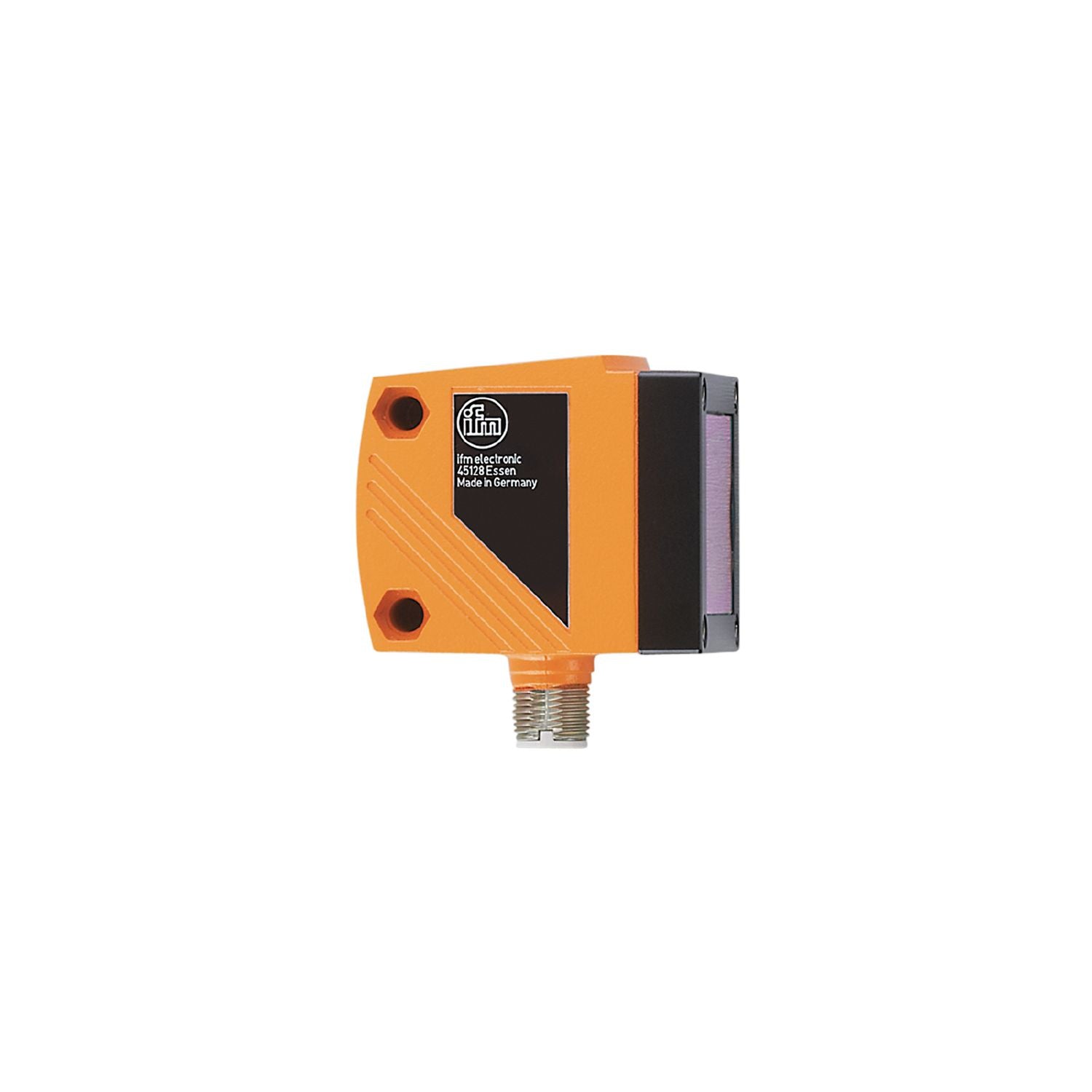

IFM O1D155 - Photoelectric distance sensor O1DLF3KG/IO-LINK

Reliable optical distance measurement with high ranges up to 6 m.
Two switching outputs, one of them programmable as analogue output.
Scalable measuring range and window function.
Laser protection class 1 for the requirements of the automotive industry.
Excellent price/performance ratio

Type of light	red light
Laser protection class	1
Housing	rectangular

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 150
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	650
Typ. lifetime [h]	50000

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2; Number of analogue outputs: 1

Outputs

Total number of outputs	2
Electrical design	PNP
Number of digital outputs	2
Output function	normally open / normally closed;(programmable)
Max. current load per output [mA]	200
Number of analogue outputs	1
Analogue current output [mA]	4...20; (IEC 61131-2)
Max. load [Ω]	250
Analogue voltage output [V]	0...10; (IEC 61131-2)
Min. load resistance [Ω]	5000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Max. light spot width [mm]	8
Max. light spot height [mm]	8
Light spot dimensions refer to	6 m
Background suppression [m]	6...100

Measuring/setting range

Measuring range [m]	0.3...6;(white paper 200 x 200 mm 90% remission)
Sampling rate [Hz]	1...33

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Function class Designation 0x1 Smart Sensor Profil 0x8000 Device Identification 0x8002 Process Data Variable 0x8003 Device Diagnosis 0x8004 Teach Channel
SIO mode	yes
Required master port type	A
Process data analogue	2
Process data binary	2
Min. process cycle time [ms]	6
Supported DeviceIDs	Type of operation DeviceID default 812

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
Laser protection class	1
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	186

Weight [g]	243
Housing	rectangular
Dimensions [mm]	59 x 42 x 52
Materials	housing: diecast zinc; front pane: glass; LED window: PC

Displays / operating elements

Display	switching status 2 x LED, yellow operation LED, green distance value, programming alphanumeric display, 4-digit

Accessories

Accessories (optional)	Protective cover, E21133

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
