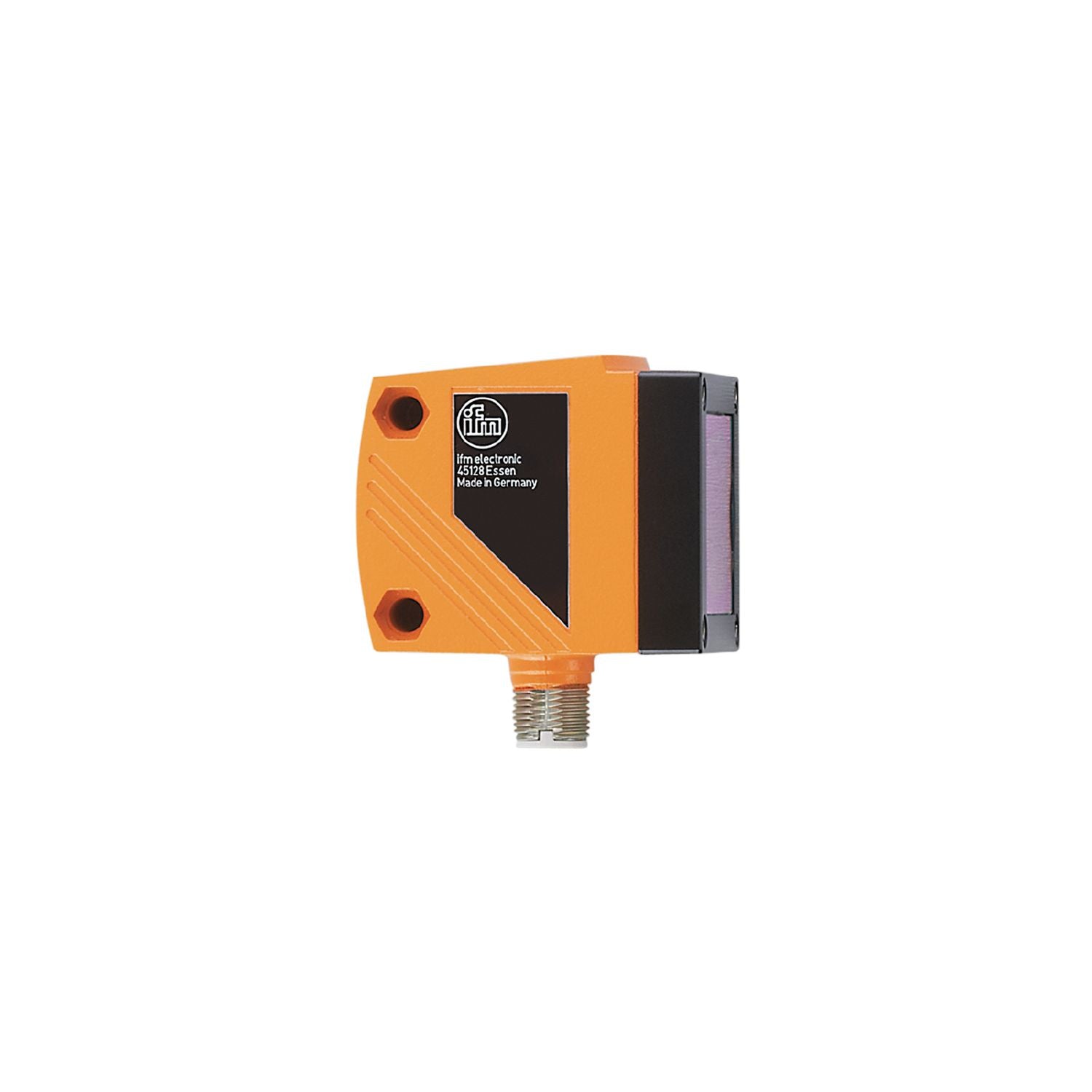

Reliable optical distance measurement with background suppression. Range up to 100 m for use on cranes. Two switching outputs, one of them programmable as analogue output. Excellent price/performance ratio. Wide range of components for quick mounting and precise fine adjustment
Laser protection class
2
Housing
rectangular
Operating voltage [V]
18...30 DC;("supply class 2" to cULus)
Current consumption [mA]
< 150
Protection class
III
Reverse polarity protection
yes
Typ. lifetime [h]
50000
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2; Number of analogue outputs: 1
Outputs
Total number of outputs
2
Electrical design
PNP
Number of digital outputs
2
Output function
normally open / normally closed;(programmable)
Max. current load per output [mA]
200
Number of analogue outputs
1
Analogue current output [mA]
4...20; (IEC 61131-2)
Max. load [Ω]
250
Analogue voltage output [V]
0...10; (IEC 61131-2)
Min. load resistance [Ω]
5000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Max. light spot width [mm]
200
Max. light spot height [mm]
200
Light spot dimensions refer to
100 m
Background suppression [m]
100...600
Measuring/setting range
Measuring range [m]
1...100;(Reflector)
Sampling rate [Hz]
1...25
Operating conditions
Ambient temperature [°C]
-10...60
Protection
IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
2
Notes on laser protection
Caution:
laser light
Power:
<= 4,0 mW
Wave length:
650 nm
pulse:
1,3 ns
Do not stare into beam.
Avoid exposure to the laser light.
laser class:
2
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
186
Weight [g]
314
Housing
rectangular
Dimensions [mm]
59 x 42 x 52
Materials
housing: diecast zinc; front pane: glass; LED window: PC
Lens alignment
side lens
Displays / operating elements
Display
switching status
2 x LED, yellow
operation
LED, green
distance value, programming
alphanumeric display, 4-digit
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
