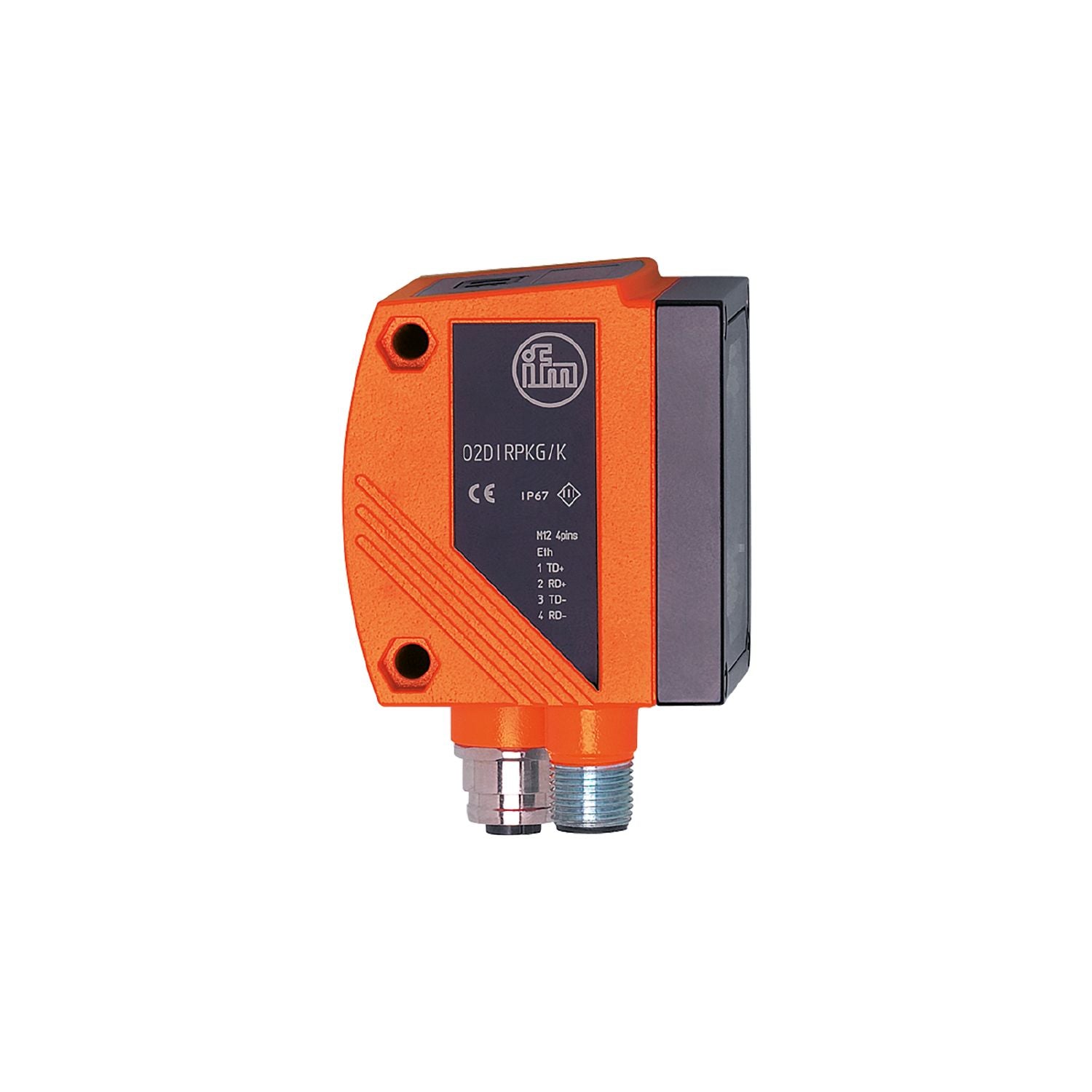

For presence, completeness, position and quality control. Orientation-independent contour verification. Stand-alone device with integrated illumination. Intuitive, user-friendly handling. High-performance Ethernet interface for data transmission
Type of light
infrared light
Image resolution [px]
640 x 480
Max. reading rate[Hz]
20
Operating voltage tolerance [%]
10
Operating voltage [V]
24 DC
Current consumption [mA]
300
Protection class
III
Reverse polarity protection
yes
Type of light
infrared light
Wave length [nm]
850
Image sensor
CMOS image sensor black/white
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 2; Number of digital outputs: 5
Inputs
Trigger
24 V NPN (IEC 61131-2 Typ 1); internal
Number of digital inputs
2
Input circuit of digital inputs
24 V PNP;(configurable; IEC 61131-2 Typ 1)
Outputs
Total number of outputs
5
Number of digital outputs
5;(configurable)
Output function
24 V NPN
Max. voltage drop switching output DC [V]
2
Max. current load per output [mA]
100
Short-circuit protection
yes
Overload protection
yes
Detection zone
Field of view size [mm]
Operating distance
field of view
Smallest detectable object
Resolution
50
33 x 24
0,3
0,075
75
50 x 36
0,4
0,1
100
66 x 47
0,5
0,125
200
132 x 94
0,9
0,225
400
264 x 189
1,7
0,425
1000
660 x 472
4,0
1,0
2000
1320 x 945
8,0
2,0
Image resolution [px]
640 x 480
Lens type
Wide angle
Max. reading rate[Hz]
20
Software / programming
Parameter setting options
via two pushbuttons and 10-segment display or via PC / notebook with operating software
Interfaces
Communication interface
Ethernet
Ethernet
Number of Ethernet interfaces
1
Transmission standard
10Base-T; 100Base-TX
Transmission rate
10; 100
Protocol
TCP/IP; EtherNet/IP
Factory settings
IP address: 192.168.0.49
subnet mask: 255.255.255.0
gateway IP address: 192.168.0.201
MAC address: see type label
Operating conditions
Ambient temperature [°C]
-10...60
Storage temperature [°C]
-40...85
Protection
IP 67
Tests / approvals
EMC
radiation of interference
EN 61326
immunity
EN 61326
Shock resistance
IEC 60028-2-27
Vibration resistance
IEC 60028-2-6
MTTF [years]
92
Weight [g]
428.5
Dimensions [mm]
60 x 42 x 53.5
Materials
housing: diecast zinc powder-coated; front pane: glass; LED window: PC
Displays / operating elements
Display
function
3 x LED, green
switching status
4 x LED, yellow
10-segment display, 4-digit
Accessories
Accessories (optional)
Operating software
Mounting accessories
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection - Ethernet
Connector: 1 x M12; coding: D
Electrical connection - Process connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2D229-01 — 23.10.2009 —
