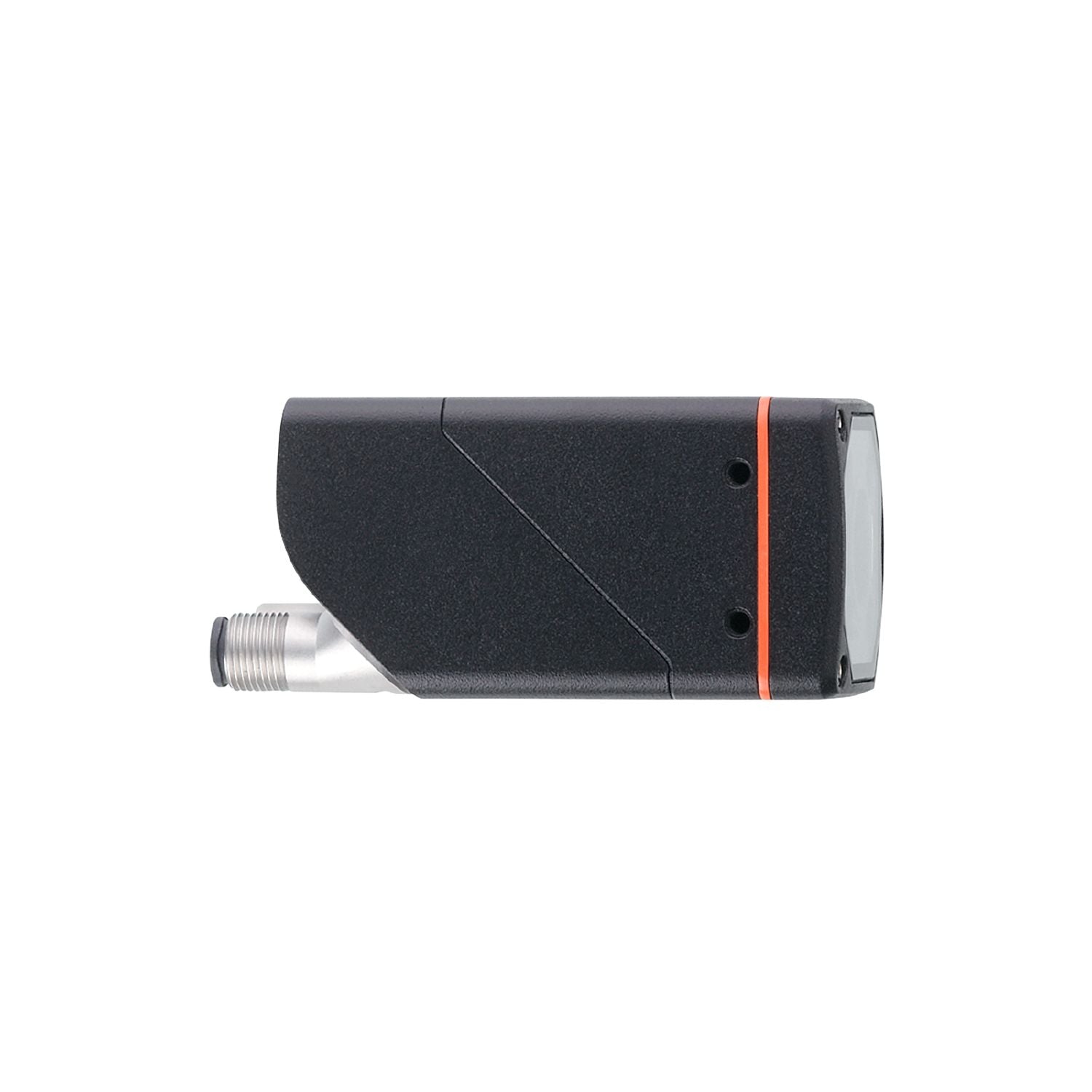

IFM O2D552 - Object recognition sensor O2DIRDKG/E1/E4/EF/GM/W/30/5A

Combinable 2D inspection of contours and surfaces for maximum quality assurance.
User-friendly software simplifies inspection task set-up.
Powerful algorithms master even demanding requirements.
Reliable functioning in changing light conditions.
Electric focus on details

Type of light	infrared light
Image resolution [px]	1280 x 960
Max. reading rate[Hz]	40

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 300;(24V DC; with switched outputs: < 600 mA)
Protection class	III
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	850
Image sensor	CMOS image sensor black/white

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 1; Number of digital outputs: 2

Inputs

Trigger	external; 24 V PNP/NPN (IEC 61131-2 Typ 3); TCP/IP; PROFINET; internal
Number of digital inputs	1

Outputs

Electrical design	PNP/NPN;(parameterisable)
Number of digital outputs	2;(configurable)
Max. voltage drop switching output DC [V]	1
Max. current load per output [mA]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Field of view size [mm]	Operating distance field of view 35 25 x 19 300 184 x 138 500 304 x 228 1000 604 x 453 1500 904 x 678 2000 1204 x 903 2500 1504 x 1128
Operating distance [mm]	> 35
Image resolution [px]	1280 x 960
Lens type	Wide angle
Max. reading rate[Hz]	40

Software / programming

Parameter setting options	via PC with ifm Vision Assistant

Interfaces

Communication interface	Ethernet

Number of Ethernet interfaces	1
Transmission standard	10Base-T; 100Base-TX
Transmission rate	10 MBit/s; 100 MBit/s
Protocol	TCP/IP; PROFINET
Factory settings	IP address: 192.168.0.69 subnet mask: 255.255.255.0 (Class C) gateway IP address: 192.168.0.201 MAC address: see type label
Usage type	parameter setting; data transmission

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-40...70
Max. relative air humidity [%]	90;(non condensing)
Max. height above sea level [m]	4000
Protection	IP 65
Pollution degree	2

Tests / approvals

EMC	EN IEC 61000-6-4 radiation of interference industrial environments EN IEC 61000-6-2 immunity industrial environments
Shock resistance	EN 60068-2-27 50 g 11 ms / not repetitive EN 60068-2-27 40 g 6 ms / repetitive
Vibration resistance	EN 60068-2-6 2 g (10 ... 150 Hz)
Photobiological safety	exempt group;(EN 62471)
Electrical protection	EN IEC 61010-2-201 electrical supply only via PELV circuits

Weight [g]	614.6
Dimensions [mm]	45 x 45 x 86
Materials	housing: diecast zinc powder-coated; front pane: Gorillaglas; LED window: PC; pushbutton: POM
Sealing material	FKM

Displays / operating elements

Display	function 2 x LED, green function 2 x LED, yellow Multi-function button 2 x LED, green/yellow
Operating elements	1 Multi-function button

Accessories

Accessories (optional)	Mounting accessories Protective panes

Pack quantity	1 pcs.

Electrical connection - Ethernet

	Connector: 1 x M12; coding: D; Moulded body: stainless steel; Sealing: FKM

Electrical connection - supply

	Connector: 1 x M12; coding: A; Moulded body: stainless steel
