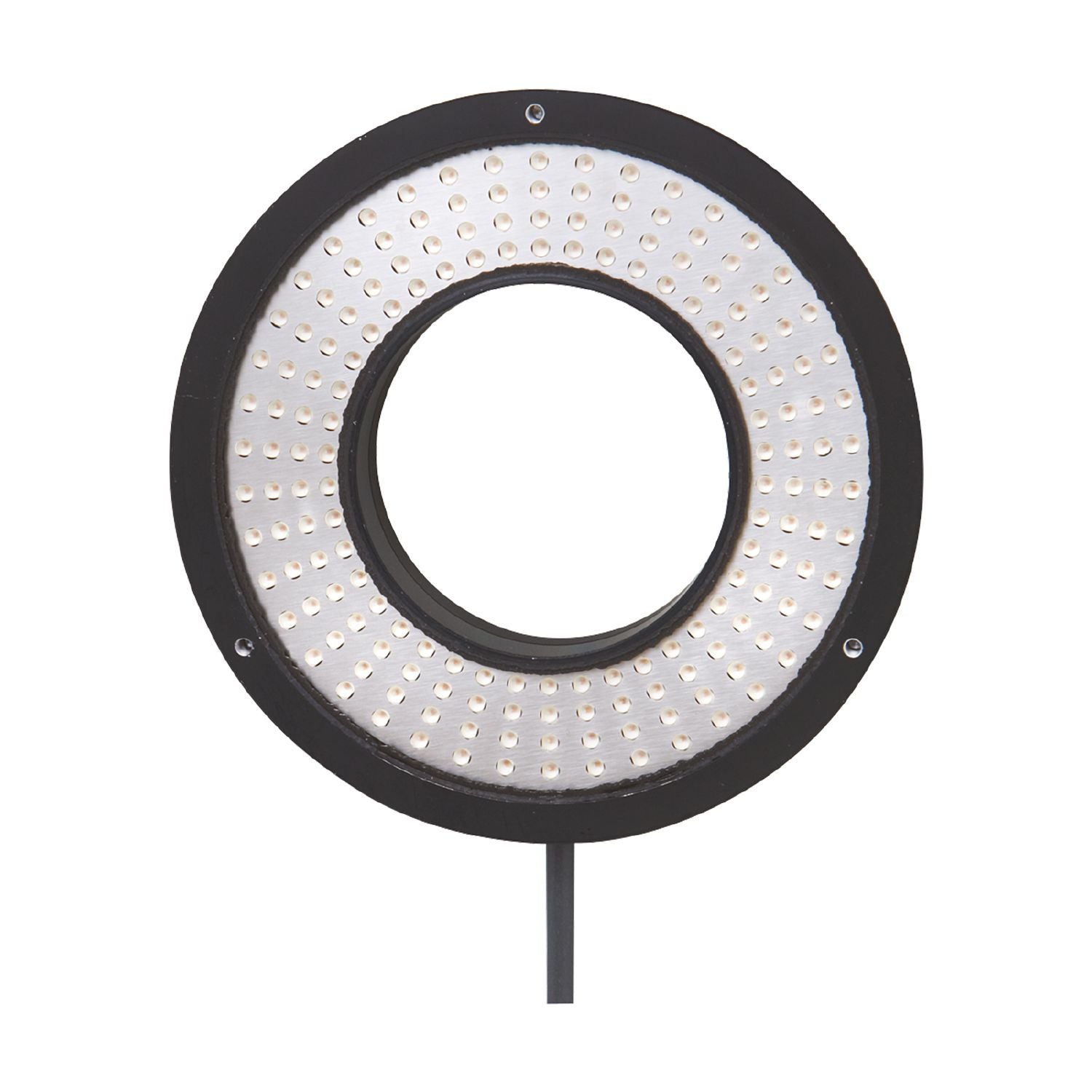

IFM O2D915 - External illumination RINGLIGHT 106x66 RT/0,3M/US

Homogeneous and virtually shadow-free illumination of the object.
Permanent light or pulse operation.
Pulse operation with higher light intensity to reduce the exposure time.
With visible red light.
Compact and robust housing

Type of light	red light

Illuminated field [mm]	Ø 106 / Ø 66;(external / internal)
Design	ring
Type of operation	high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible)

Operating voltage [V]	24 DC
Current consumption [mA]	operating mode "permanent operation": 800; operating mode "high light intensity": 1300
Type of light	red light
Wave length [nm]	617

Inputs

Trigger	24 V PNP

Detection zone

Angle of aperture cylindrical [°]	60

Operating conditions

Ambient temperature [°C]	-10...55
Storage temperature [°C]	-25...75
Protection	IP 65
Overheat protection	yes;(deactivation at 65...75 °C)

Tests / approvals

Photobiological safety	exempt group;(DIN EN 62471:2008)

Weight [g]	491.5
Dimensions [mm]	Ø 122 / L = 20.5
Materials	aluminium black anodised
Lens material	glass

Displays / operating elements

Display	combined LED, three-colour illumination status yellow operation green excess temperature red

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, black; 4 x 0.34 mm²
Connection	Connector: 1 x M12; coding: A
