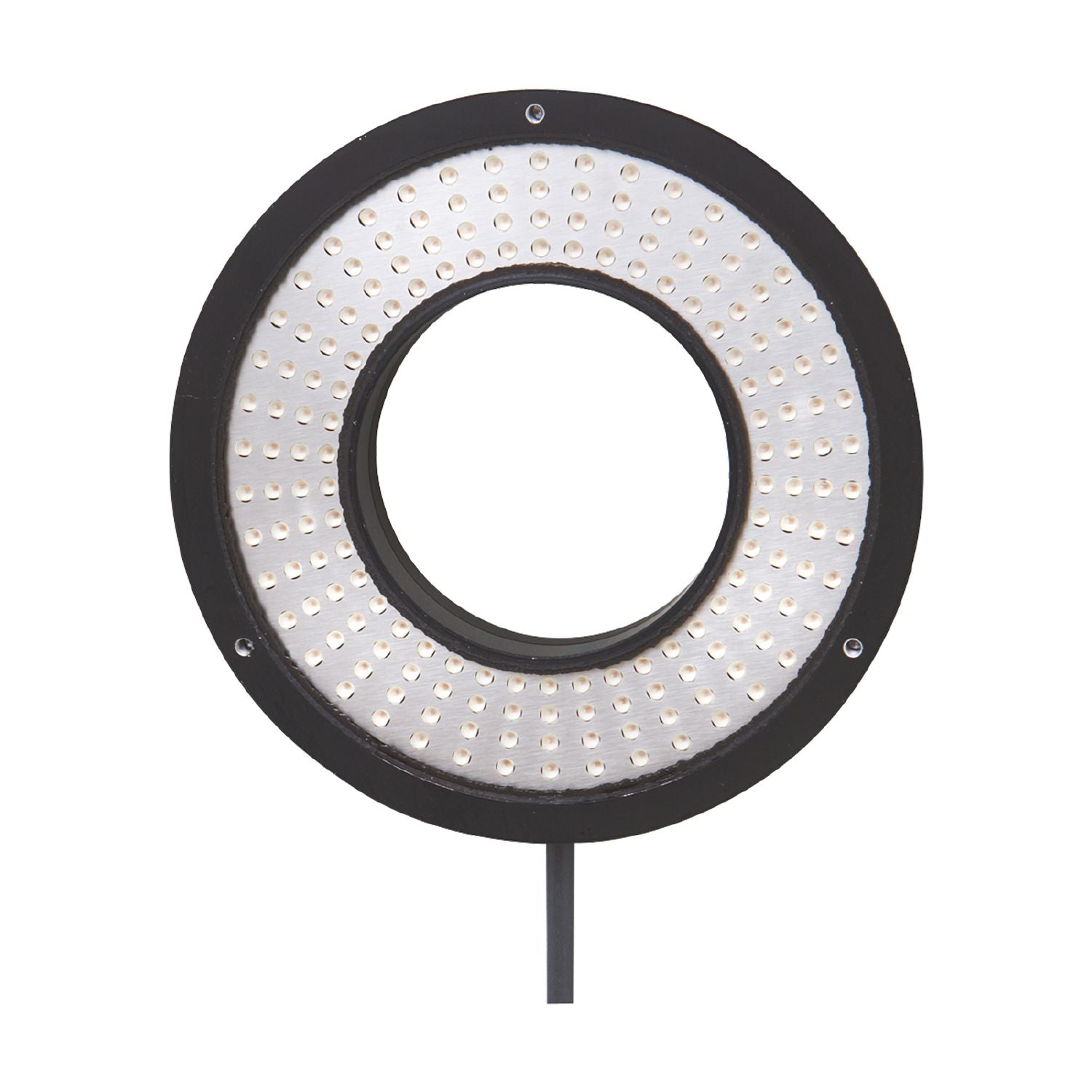

IFM O2D917 - External illumination RINGLIGHT 106x66 IR/0,3M/US

Homogeneous and virtually shadow-free illumination of the object.
Permanent light or pulse operation.
Pulse operation with higher light intensity to reduce the exposure time.
Emission of invisible infrared light.
Compact and robust housing

Type of light	infrared light

Illuminated field [mm]	Ø 106 / Ø 66;(external / internal)
Design	ring
Type of operation	high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible)

Operating voltage [V]	24 DC
Current consumption [mA]	operating mode "permanent operation": 800; operating mode "high light intensity": 1400
Type of light	infrared light
Wave length [nm]	875

Inputs

Trigger	24 V PNP

Detection zone

Angle of aperture cylindrical [°]	50

Operating conditions

Ambient temperature [°C]	-10...55
Storage temperature [°C]	-25...75
Protection	IP 65
Overheat protection	yes;(deactivation at 65...75 °C)

Tests / approvals

Photobiological safety	risk group 1;(DIN EN 62471:2008; Do not stare into light source.; danger of glare and irritations; Align the device to prevent eye exposure to the light source.)

Weight [g]	486
Dimensions [mm]	Ø 122 / L = 20.5
Materials	aluminium black anodised
Lens material	glass

Displays / operating elements

Display	combined LED, three-colour illumination status yellow operation green excess temperature red

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, black; 4 x 0.34 mm²
Connection	Connector: 1 x M12; coding: A
