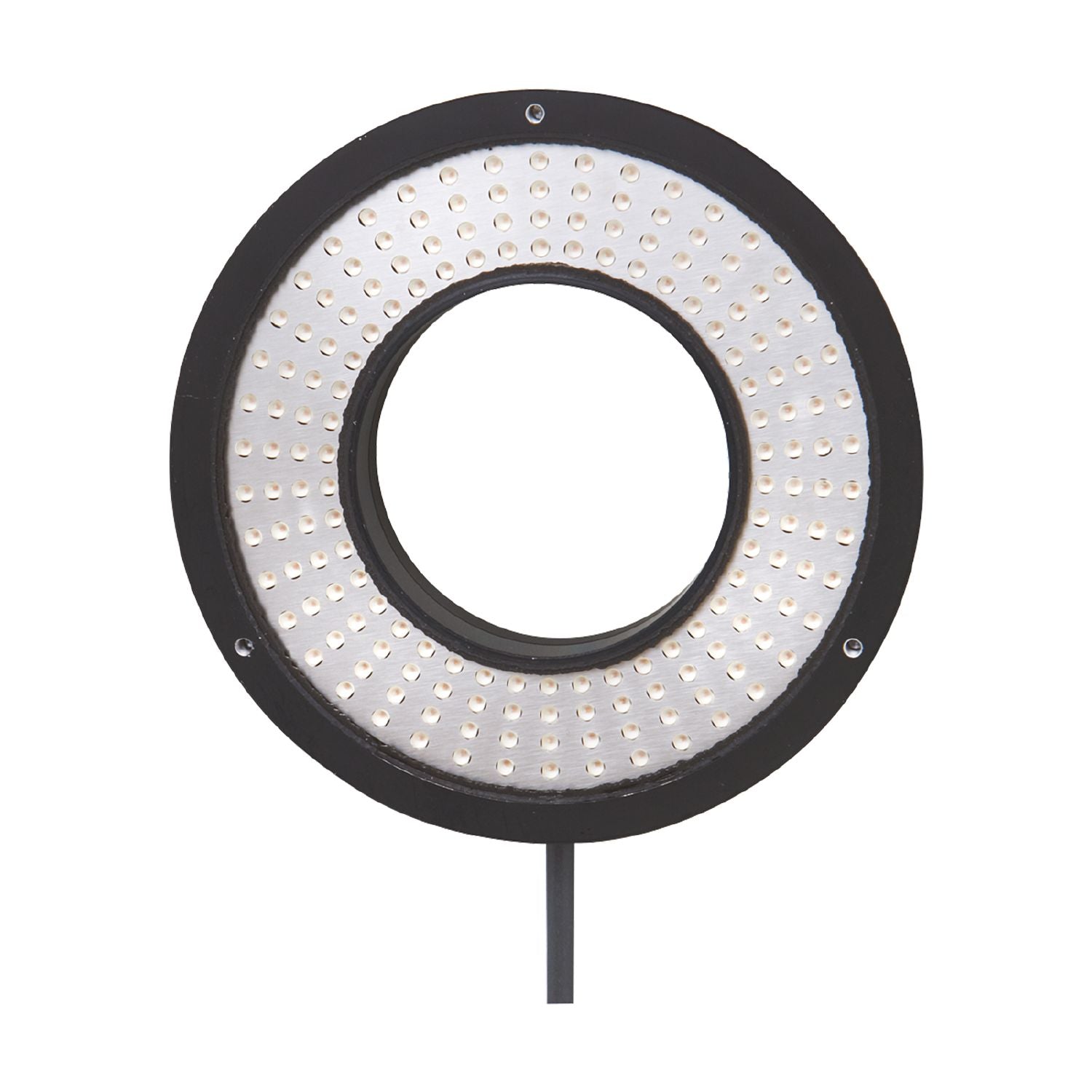

IFM O2D919 - External illumination RINGLIGHT 106x66 W/0,3M/US

Homogeneous and virtually shadow-free illumination of the object.
Permanent light or pulse operation.
Pulse operation with higher light intensity to reduce the exposure time.
With visible white light.
Compact and robust housing

Type of light	white light

Illuminated field [mm]	Ø 106 / Ø 66;(external / internal)
Design	ring
Type of operation	high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible)

Operating voltage [V]	24 DC
Current consumption [mA]	operating mode "permanent operation": 800; operating mode "high light intensity": 1200
Type of light	white light
Colour temperature [K]	5600

Inputs

Trigger	24 V PNP

Detection zone

Angle of aperture cylindrical [°]	120

Operating conditions

Ambient temperature [°C]	-10...55
Storage temperature [°C]	-25...75
Protection	IP 65
Overheat protection	yes;(deactivation at 65...75 °C)

Tests / approvals

Photobiological safety	exempt group;(DIN EN 62471:2008)

Weight [g]	488
Dimensions [mm]	Ø 122 / L = 20.5
Materials	aluminium black anodised
Lens material	glass

Displays / operating elements

Display	combined LED, three-colour illumination status yellow operation green excess temperature red

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, black; 4 x 0.34 mm²
Connection	Connector: 1 x M12; coding: A
