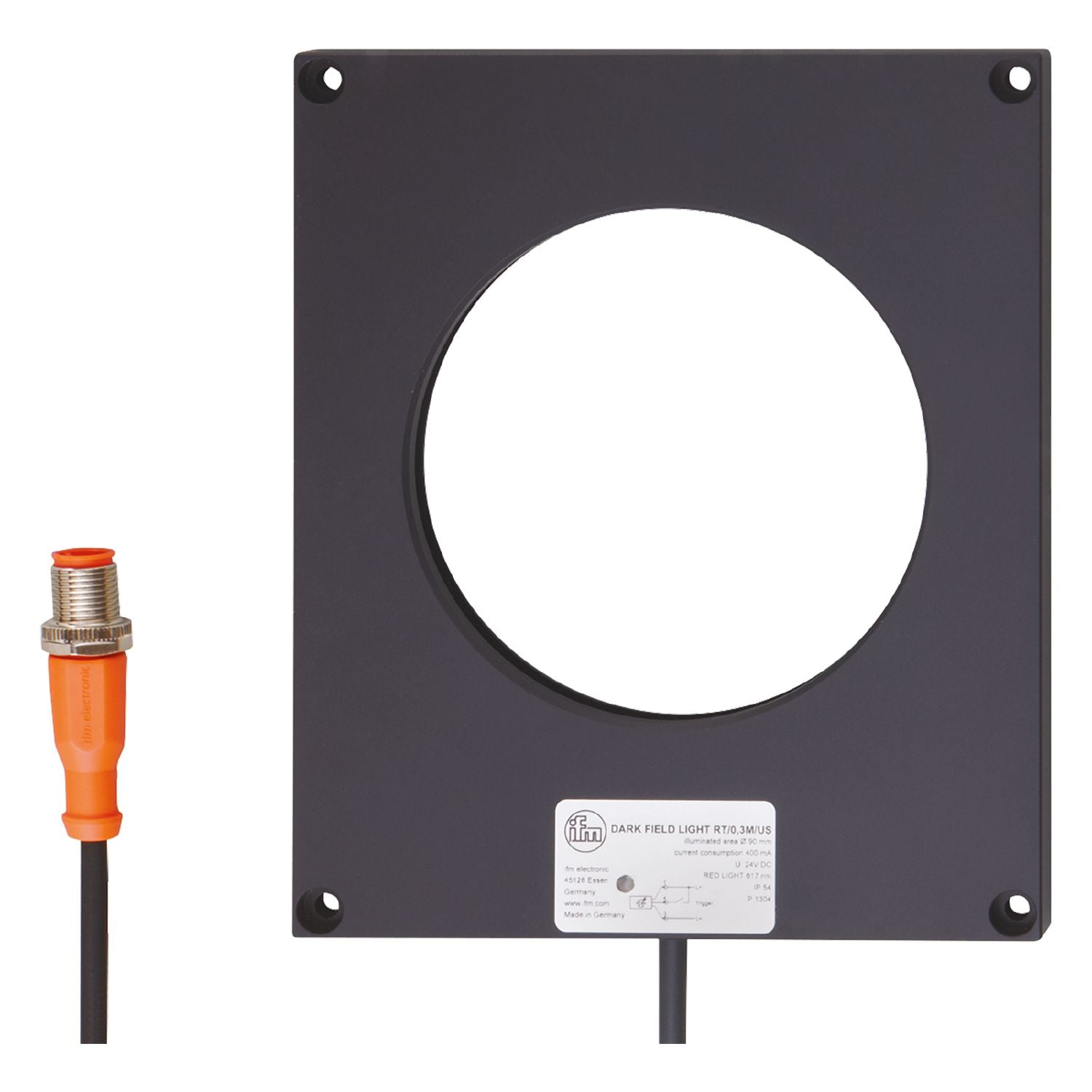

IFM O2D920 - External illumination DARK FIELD LIGHT RT/0,3M/US

Dark field illumination for accentuating surface characteristics such as needled codes, scratches or nicks.
Permanent light or pulse operation.
With visible red light.
Compact and robust housing

Type of light	red light

Illuminated field [mm]	Ø 90
Design	dark field
Type of operation	pulsed or permanent operation

Operating voltage [V]	24 DC
Current consumption [mA]	400
Type of light	red light
Wave length [nm]	617

Inputs

Trigger	24 V PNP

Operating conditions

Ambient temperature [°C]	-10...55
Storage temperature [°C]	-25...75
Protection	IP 54
Overheat protection	yes;(deactivation at 65...75 °C)

Tests / approvals

Photobiological safety	exempt group;(DIN EN 62471:2008)

Weight [g]	369
Dimensions [mm]	155 x 130 x 9.8
Materials	aluminium black anodised
Lens material	glass

Displays / operating elements

Display	combined LED, three-colour illumination status yellow operation green excess temperature red

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, black; 4 x 0.34 mm²
Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2D920-00 — 30.08.2013 —
