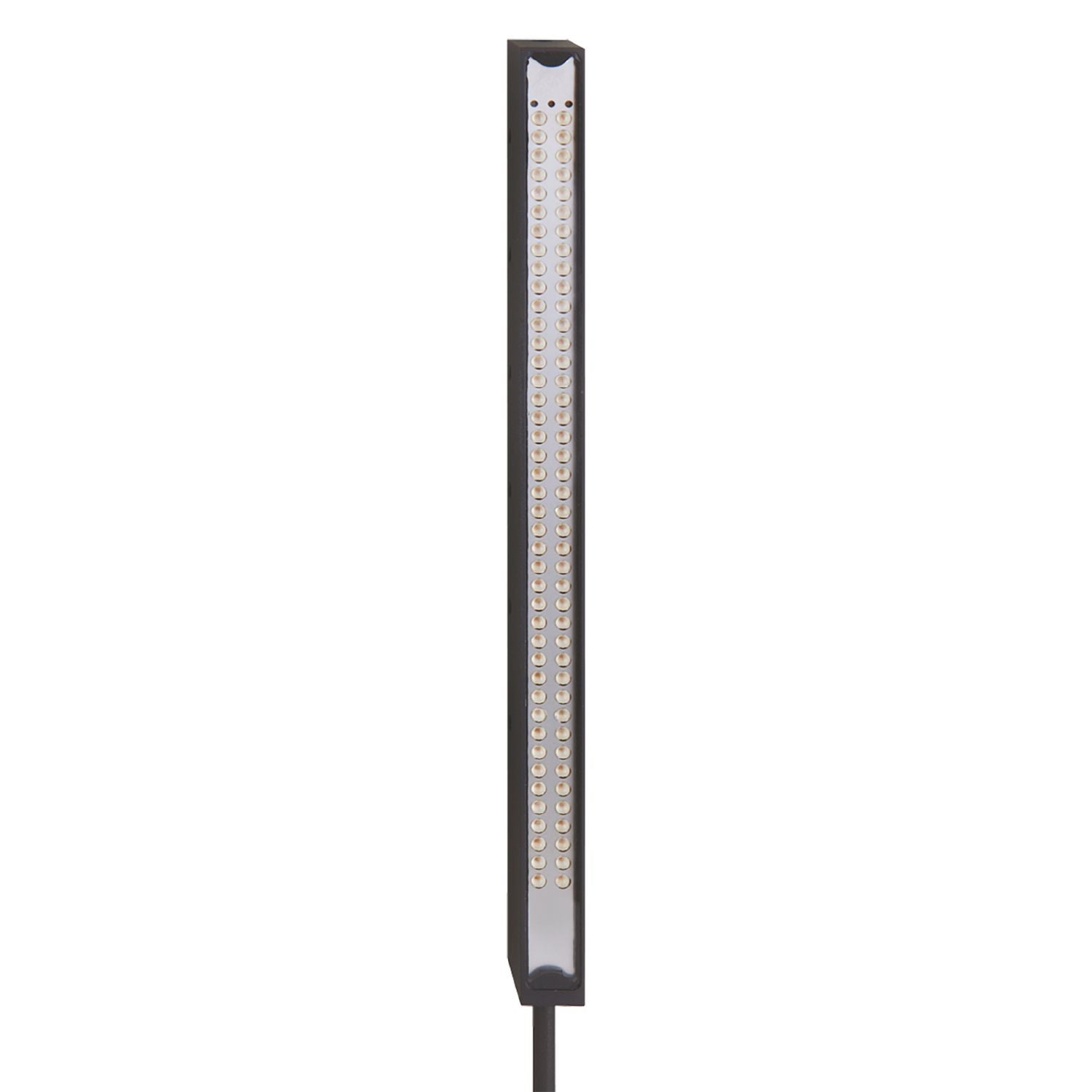

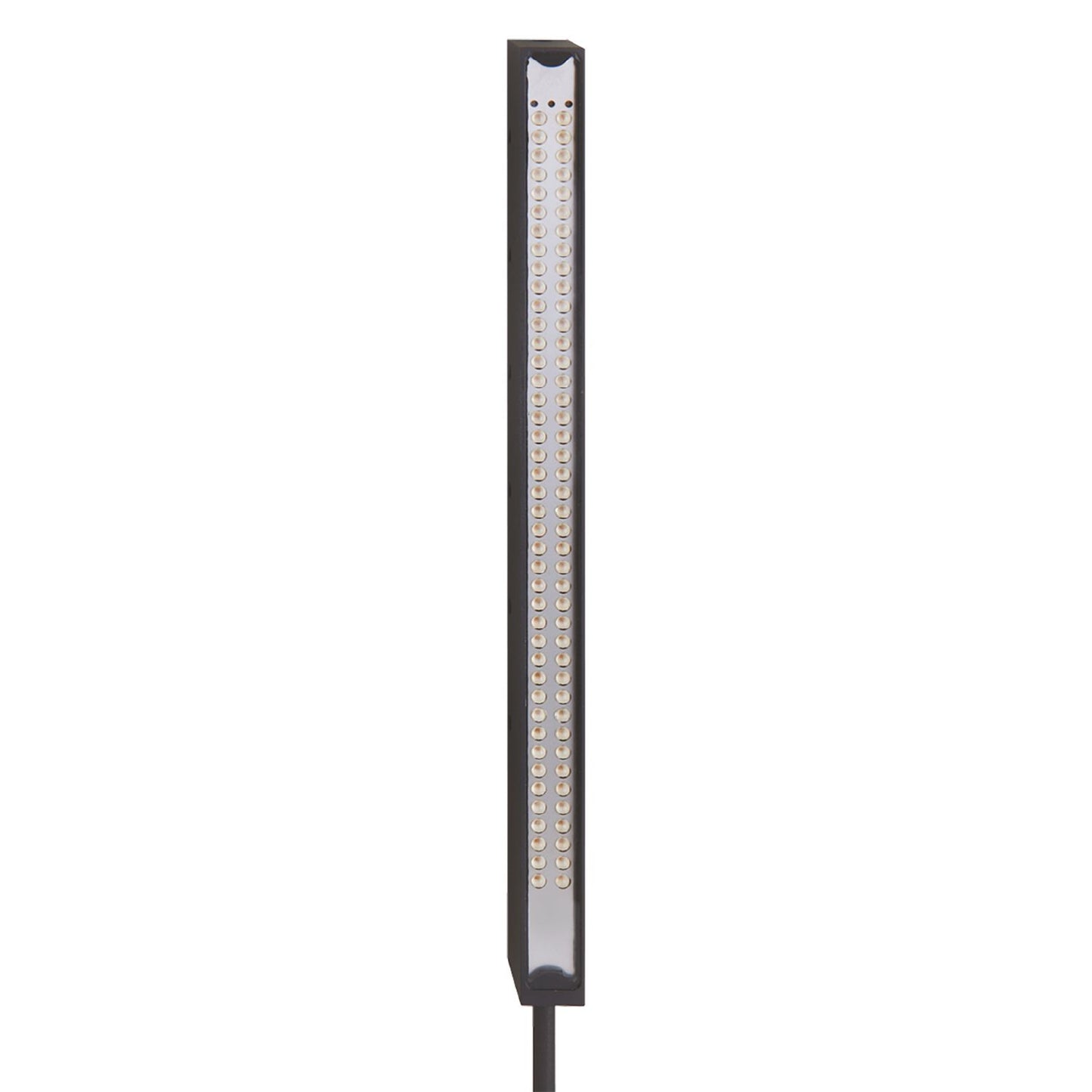

IFM O2D926 - External illumination BAR LIGHT 10x150 W/0,3M/US

Type of light	white light

Illuminated field [mm]	10 x 150
Design	bars
Type of operation	high light intensity (pulsed, permanent operation with cooling only); normal light intensity (permanent operation possible)

Operating voltage [V]	24 DC
Current consumption [mA]	operating mode "permanent operation": 265; operating mode "high light intensity": 475
Type of light	white light
Colour temperature [K]	5600

Inputs

Trigger	24 V PNP

Operating conditions

Ambient temperature [°C]	-10...55
Storage temperature [°C]	-25...75
Protection	IP 65
Overheat protection	yes;(deactivation at 65...75 °C)

Tests / approvals

Photobiological safety	exempt group;(DIN EN 62471:2008)

Weight [g]	220.5
Dimensions [mm]	200 x 13 x 18
Materials	aluminium black anodised
Lens material	glass

Displays / operating elements

Display	illumination status 1 x LED, yellow operation 1 x LED, green excess temperature 1 x LED, red

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, black; 4 x 0.34 mm²
Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2D926-01 — 11.04.2017 —
