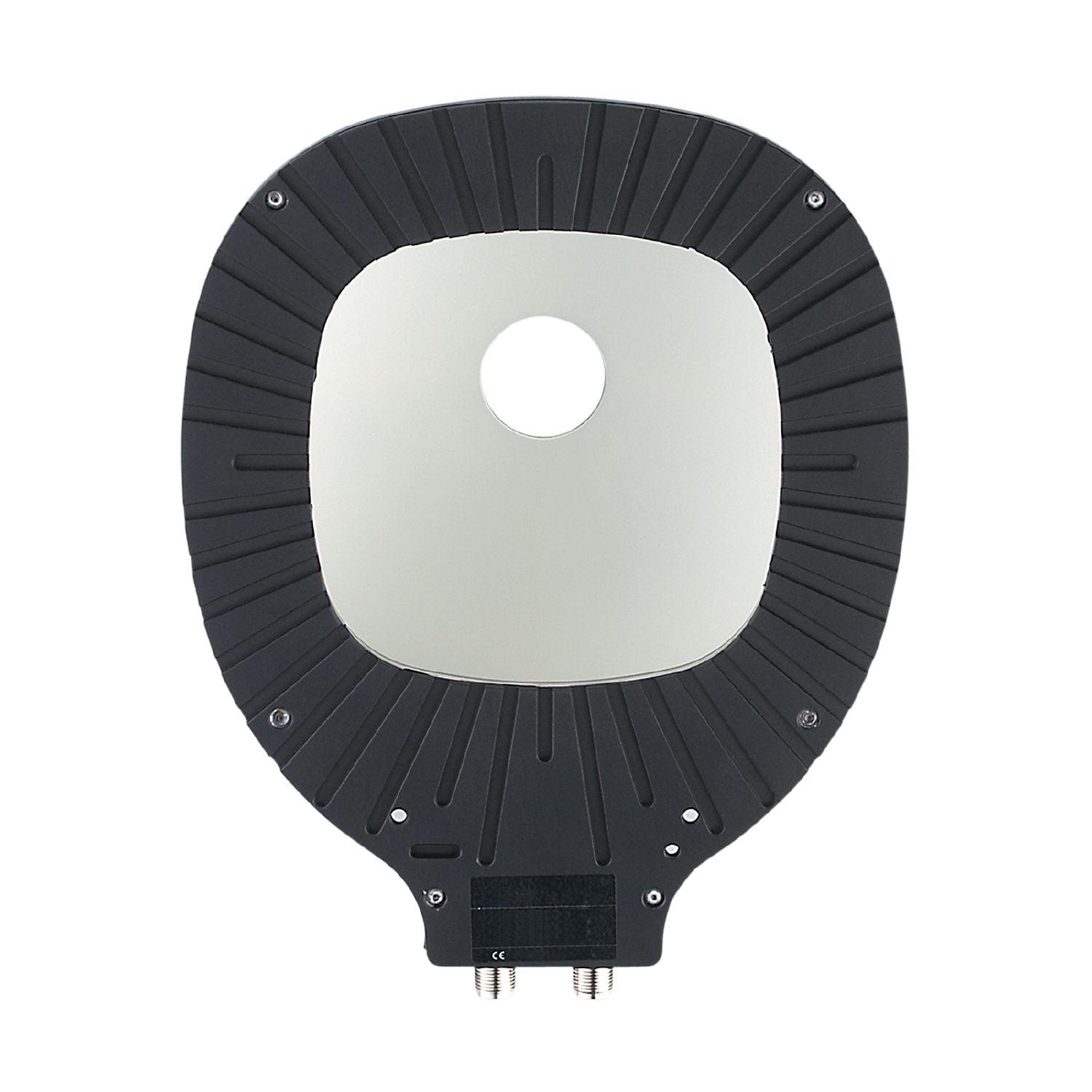

IFM O2D933 - External illumination Dome Light 130 CY RD/ US

Homogeneous light in four different colours.
Two colour combinations selectable: white/infrared or cyan/red.
Four lighting segments can be controlled separately.
Permanent light or pulse operation with 4 times more light.
No external control unit necessary

Type of light	red light; cyan light

Illuminated field [mm]	130 x 130
Design	Dome
Type of operation	normal light intensity (permanent operation possible); High light intensity (pulsed)

Operating voltage [V]	24 DC
Current consumption [mA]	operating mode "permanent operation": 460; operating mode "high light intensity": 3420
Protection class	III;(PELV)
Type of light	red light; cyan light

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 1

Inputs

Trigger	24 V PNP/NPN; external
Number of digital inputs	1

Operating conditions

Ambient temperature [°C]	-10...40
Storage temperature [°C]	-20...60
Protection	IP 65

Tests / approvals

Photobiological safety	risk group 1;(DIN EN 62471)

Weight [g]	817.35
Dimensions [mm]	256.8 x 197 x 106.7
Materials	housing: aluminium black anodised; Cover: ABS
Tightening torque [Nm]	0.5...1.5

Displays / operating elements

Display	operation 1 x LED, green operating mode "high light intensity" 1 x LED, red LED segment 1 x LED, white

Pack quantity	1 pcs.

Electrical connection - parameter setting

	Connector:M12; coding: A

Electrical connection - power supply

	Connector:M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2D933-00 —
