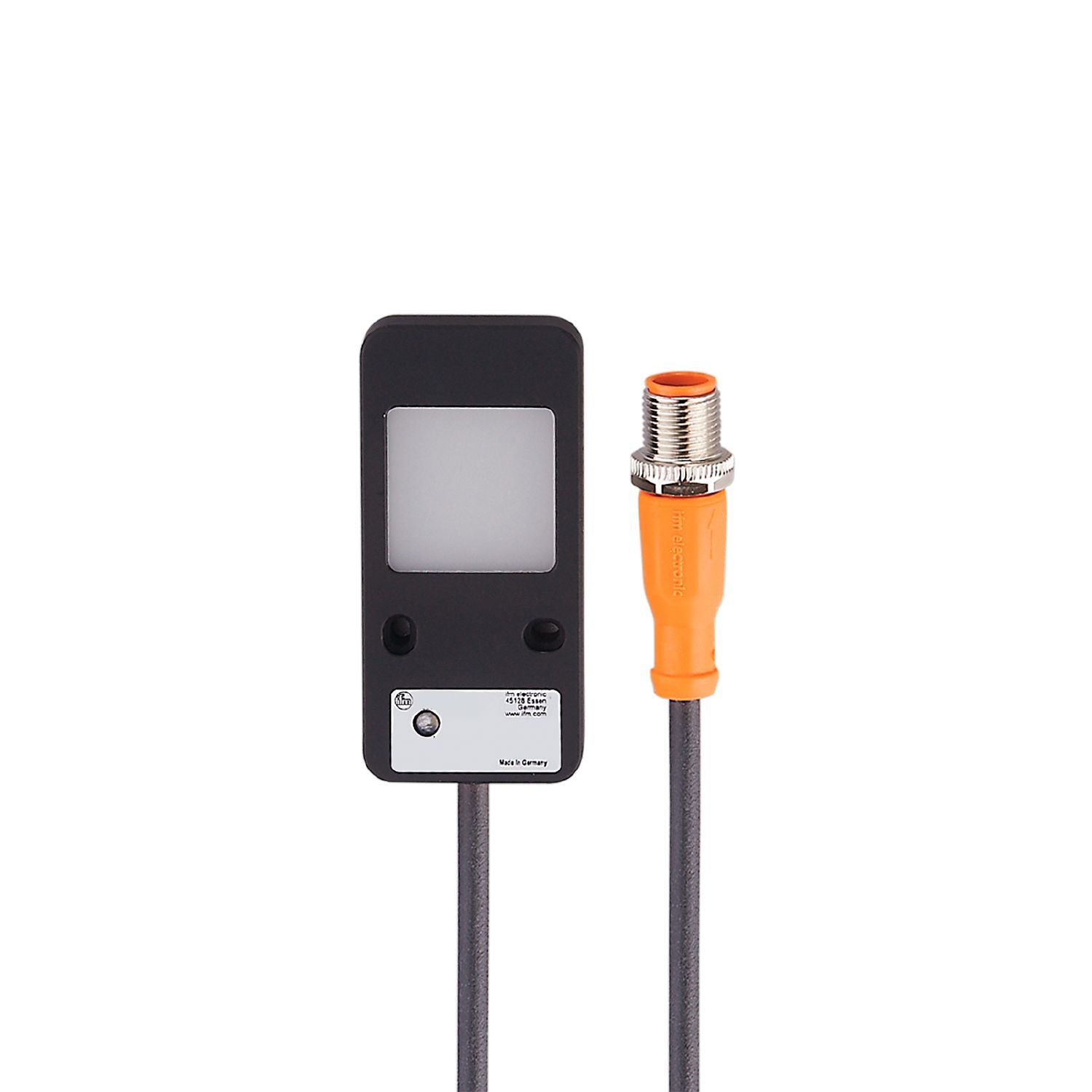

IFM O2D940 - External illumination BACKLIGHT 25X25 RT/0,3M/US

Powerful permanent light for contour and position verification.
Longer life through pulse operation.
Homogeneous illumination with red or infrared light.
Versions with three different illuminated area sizes.
Space-saving design thanks to ultra-flat housing

Type of light	red light

Special feature	Gold-plated contacts
Illuminated field [mm]	25 x 25
Design	backlight
Type of operation	Permanent light or pulse operation

Operating voltage tolerance [%]	-10...10
Operating voltage [V]	24 DC
Current consumption [mA]	< 80
Protection class	III
Type of light	red light
Wave length [nm]	617

Inputs

Trigger	5...24 V

Operating conditions

Ambient temperature [°C]	-10...50
Protection	IP 54
Overheat protection	yes;(> 50 °C)

Tests / approvals

Photobiological safety	exempt group;(EN 62471)
MTTF [years]	310

Weight [g]	162.6
Dimensions [mm]	70.5 x 33.4 x 9.5
Materials	aluminium
Lens material	glass

Displays / operating elements

Display	illumination status 1 x LED, yellow operation 1 x LED, green excess temperature / overload 1 x LED, red

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.30 m, PUR
Connection	Connector: 1 x M12; coding: A; Contacts: gold-plated
