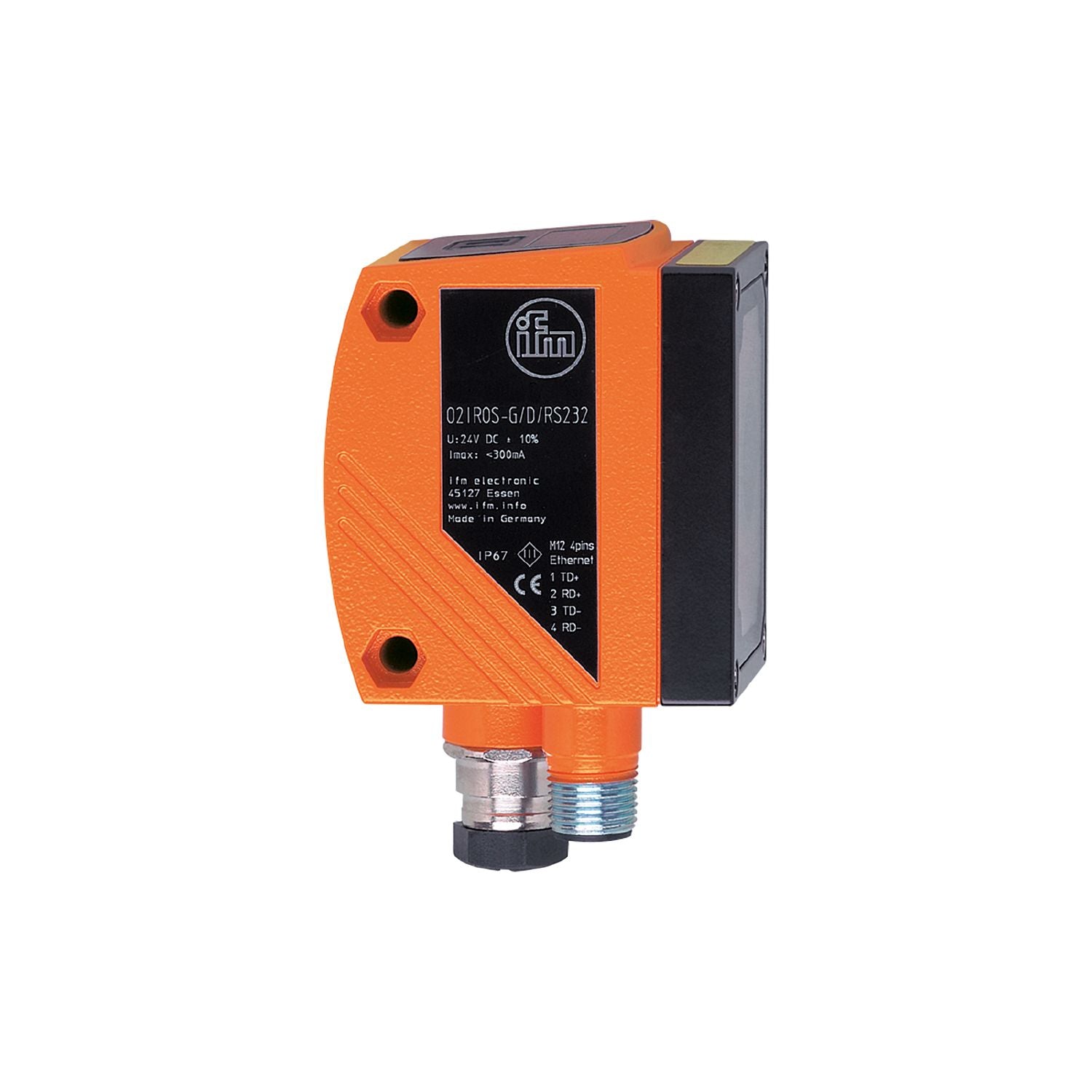

IFM O2I301 - 1D/2D code readers O2IIOS-G/D/RS232/E1/E2

Orientation-independent reading of 1D and 2D codes.
Recognition of more than 30 different code types.
Integrated code comparator system in the sensor.
Adjustable via integrated laser pointer.
Segmentable illumination for applications with problem surfaces

Type of light	infrared light
Image resolution [px]	640 x 480
Max. reading rate[Hz]	20

Operating voltage tolerance [%]	10
Operating voltage [V]	24 DC
Current consumption [mA]	< 300
Protection class	III
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	850
Image sensor	CMOS image sensor black/white
Internal lighting	yes;(infrared: 850 nm 4 lighting segments individual control via PC operating program)
Laser marking	yes;(red; Laser protection class 2 DIN EN 60825-1)

Inputs / outputs

Number of inputs and outputs	Number of digital outputs: 2

Inputs

Trigger	internal; 24 V PNP (IEC 61131-2 Typ 1); RS-232; TCP/IP; EtherNet/IP

Outputs

Total number of outputs	2
Number of digital outputs	2;(configurable)
Output function	24 V PNP
Max. voltage drop switching output DC [V]	2
Max. current load per output [mA]	100
Short-circuit protection	yes
Overload protection	yes

Detection zone

Field of view size [mm]	Operating distance field of view Smallest detectable object Resolution 50 16 x 12 100 32 x 24 200 64 x 48
Operating distance [mm]	> 50
Image resolution [px]	640 x 480
Lens type	standard
Readable codes	Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 Add-On 2; EAN13 Add-On 5; UPC-A; UPC-A Add-On 2; UPC-A Add-On 5; UPC-E; UPC-E Add-On 2; UPC-E Add-On 5; GS1 DataBar Omnidirectional; GS1 DataBar Truncated; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1 DataBar Expanded Stacked; GS1 - 128; MSI Barcode; ECC200; PDF-417; QR; Micro-QR; Aztec Code; GS1 ECC200; GS1 QR Code; GS1 Aztec Code
Omnidirectional reading	yes
Max. inclination to the image plane [°]	45
Max. reading rate[Hz]	20

Software / programming

Parameter setting options	via two pushbuttons and 10-segment display or via PC / notebook with operating software

Interfaces

Communication interface	Ethernet; RS232
Number of R232 interfaces	1

Number of Ethernet interfaces	1
Transmission standard	10Base-T; 100Base-TX
Transmission rate	10; 100
Protocol	TCP/IP; UDP; EtherNet/IP
Factory settings	IP address: 192.168.0.79 subnet mask: 255.255.255.0 gateway IP address: 192.168.0.201 MAC address: see type label

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-40...85
Protection	IP 67

Tests / approvals

EMC	radiation of interference EN 61326 immunity EN 61326
Shock resistance	IEC 60028-2-27
Vibration resistance	IEC 60028-2-6
UL approval	UL Approval no. T001

Weight [g]	403
Dimensions [mm]	60 x 42 x 53.5
Materials	housing: diecast zinc powder-coated; front pane: glass; LED window: PC

Displays / operating elements

Display	function 3 x LED, green switching status 4 x LED, yellow 10-segment display, 4-digit

Accessories

Accessories (optional)	Operating software Mounting accessories

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection - Ethernet

	Connector: 1 x M12; coding: D

Electrical connection - RS-232

	Connector: 1 x M12; coding: A
