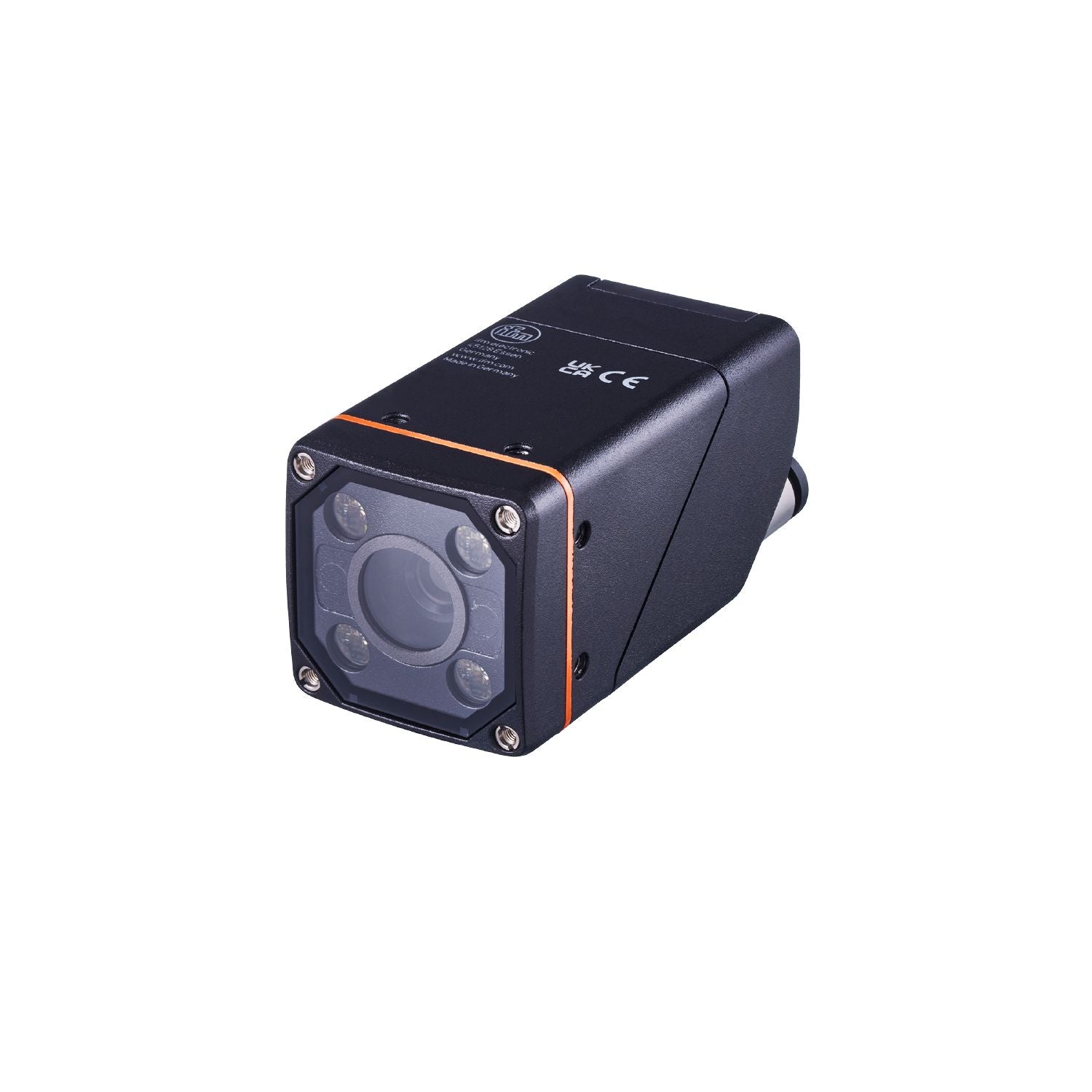

IFM O2I420 - 1D/2D code readers O2IIRDKG/E1/IO/EF/TB/S

Multicode reader with standard lens.
Internal infrared illumination.
Several codes and text lines simultaneously

Type of light	infrared light
Image resolution [px]	1280 x 960
Max. reading rate[Hz]	40

Operating voltage [V]	18...30 DC
Current consumption [mA]	< 500;(24V DC)
Protection class	III
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	850
Image sensor	CMOS image sensor black/white

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 1; Number of digital outputs: 2

Inputs

Trigger	external; 24 V PNP/NPN (IEC 61131-2 Typ 3); EtherNet/IP; internal
Number of digital inputs	1

Outputs

Total number of outputs	2
Number of digital outputs	2;(configurable)
Output function	24 V PNP/NPN
Max. voltage drop switching output DC [V]	2
Max. current load per output [mA]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Field of view size [mm]	Operating distance field of view 85 28 x 21 300 92 x 69 500 152 x 114 1000 302 x 227
Operating distance [mm]	> 85
Image resolution [px]	1280 x 960
Lens type	standard
Readable codes	Interleaved 2-of-5; Industrial 2-of-5; Code 39; Code 93; Code 128; Pharmacode; Codabar; EAN8; EAN8 Add-On 2; EAN8 Add-On 5; EAN13; EAN13 Add-On 2; EAN13 Add-On 5; UPC-A; UPC-A Add-On 2; UPC-A Add-On 5; UPC-E; UPC-E Add-On 2; UPC-E Add-On 5; GS1 DataBar Omnidirectional; GS1 DataBar Truncated; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1 DataBar Expanded Stacked; GS1 - 128; MSI Barcode; ECC200; PDF-417; QR; Micro-QR; Aztec Code; GS1 ECC200; GS1 QR Code; GS1 Aztec Code
Code quality based on	ISO / IEC 15415 ISO / IEC 15416 AIM DPM ISO/IEC TR 29158 SEMI T10
Legible fonts	Industrial; Document; OCR-A; OCR-B; Pharma; Semi; Universal; Dot Print
Omnidirectional reading	yes
Max. inclination to the image plane [°]	45
Max. reading rate[Hz]	40

Software / programming

Parameter setting options	teach button; via PC with ifm Vision Assistant

Interfaces

Communication interface	IO-Link
Transmission type	COM3 (230,4 kBaud)
IO-Link revision	1.1
Supported DeviceIDs	Type of operation DeviceID default 1699

Number of Ethernet interfaces	1
Transmission standard	10Base-T; 100Base-TX
Transmission rate	10 MBit/s; 100 MBit/s
Protocol	TCP/IP
Factory settings	IP address: 192.168.0.69 subnet mask: 255.255.255.0 (Class C) gateway IP address: 192.168.0.201 MAC address: see type label
Usage type	parameter setting

Operating conditions

Ambient temperature [°C]	-10...50
Storage temperature [°C]	-40...70
Protection	IP 65

Tests / approvals

EMC	EN 61000-6-4 radiation of interference industrial environments EN IEC 61000-6-2 immunity industrial environments
Shock resistance	EN 60068-2-27 50 g 11 ms / not repetitive EN 60068-2-27 40 g 6 ms / repetitive
Vibration resistance	EN 60068-2-6 2 g (10 ... 150 Hz)
Photobiological safety	exempt group;(EN 62471)
Electrical protection	EN 61010-2-201 electrical supply only via PELV circuits

Weight [g]	594.4
Dimensions [mm]	45 x 45 x 86
Materials	housing: diecast zinc powder-coated; front pane: PMMA; LED window: PC; pushbutton: POM
Sealing material	FKM

Displays / operating elements

Display	function 2 x LED, green function 2 x LED, yellow Teach-Funktion 1 x LED, green Teach-Funktion 1 x LED, yellow
Operating elements	1 x Teach-Taste

Accessories

Accessories (optional)	Operating software Mounting accessories Adapter cable protective panes and filter panes

Pack quantity	1 pcs.
