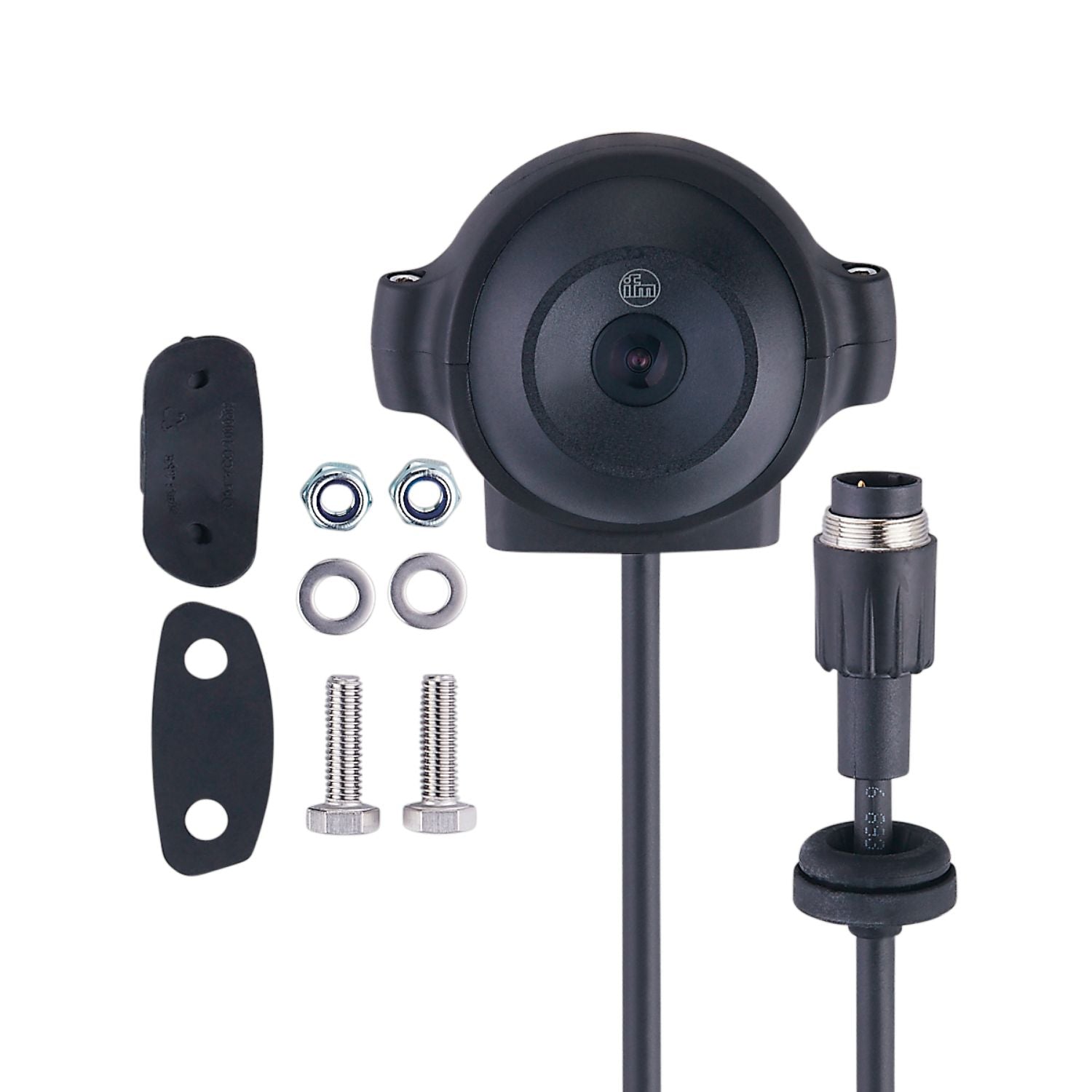

IFM O2M200 - Analogue camera for mobile machines O2MXOOKG/A1/GM/78

Analogue video output for rear area monitoring in mobile machines.
Encapsulated, weather-proof housing.
High shock and vibration resistance.
Temperature-controlled lens heating.
EU type approval E4

Image resolution [px]	640 x 480
Angle of aperture [°]	80 x 59

Special feature	Screened cable

Operating voltage [V]	12...32 DC
Current consumption [mA]	< 280;(with lens heating)
Overvoltage protection	yes
Image sensor	¼'' 4:3 VGA CMOS image sensor Color
Switch-on peak current [mA]	1000
Switch-on peak current duration [ms]	2

Outputs

Video output	PAL (25 fps interlace) 720H x 576V (640 x 480), 1 Vtt / 75 Ω

Detection zone

Field of view size [mm]	Operating distance field of view 1000 1680 x 1130 2000 3360 x 2260 3000 5030 x 3390 4000 6710 x 4530 5000 8390 x 5660
Image resolution [px]	640 x 480
Angle of aperture [°]	80 x 59
Light sensitivity [LUX]	< 0.05
Dynamic range [dB]	> 80

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...100
Protection	IP 67; IP 69K

Tests / approvals

EMC	DIN EN 61000-6-4 industrial environments DIN EN 61000-6-2 industrial environments UN-ECE R10
Shock resistance	50 g
Vibration resistance	Frequency range 24...2000 Hz (15.3 x 9.81 m/s²)rms PSD (g²/Hz) 0.04...0.1
Salt spray test	IEC 60068-5-52

Weight [g]	311
Dimensions [mm]	Ø 55.5 / L = 51.3
Materials	housing: PC/ABS; front lens: polyamide glass fibre reinforced

Accessories

Items supplied	Mounting set:, E2M210 screws: 2 x M6 x 20 washers Nuts: 2 x M6, self-locking anti-slide pad

Pack quantity	1 pcs.

Electrical connection

	Cable: 0.5 m, shielded
	Connector: 1 x M16; coding: A; Shielded connection cable: screen connected

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2M200-02 — 10.01.2020 —
