Analogue video output for rear area monitoring in mobile machines. Encapsulated, weather-proof housing. High shock and vibration resistance. Temperature-controlled lens heating. EU type approval E4
Image resolution [px]
640 x 480
Angle of aperture [°]
118 x 89
Special feature
Screened cable
Application
Integrated mirror function
Operating voltage [V]
12...32 DC
Current consumption [mA]
< 280;(with lens heating)
Overvoltage protection
yes
Image sensor
¼'' 4:3 VGA CMOS image sensor Color
Switch-on peak current [mA]
700
Switch-on peak current duration [ms]
2
Outputs
Video output
PAL (25 fps interlace) 720H x 576V (640 x 480), 1 Vtt / 75 Ω
Detection zone
Field of view size [mm]
Operating distance
field of view
1000
3330 x 1970
2000
6660 x 3930
3000
9990 x 5900
4000
13310 x 7860
5000
16640 x 9830
Image resolution [px]
640 x 480
Angle of aperture [°]
118 x 89
Light sensitivity [LUX]
< 0.05
Dynamic range [dB]
> 80
Operating conditions
Ambient temperature [°C]
-40...85
Storage temperature [°C]
-40...100
Protection
IP 67; IP 69K
Tests / approvals
EMC
DIN EN 61000-6-4
industrial environments
DIN EN 61000-6-2
industrial environments
UN-ECE R10
Shock resistance
50 g
Vibration resistance
Frequency range 24...2000 Hz
(15.3 x 9.81 m/s²)rms
PSD (g²/Hz)
0.04...0.1
Salt spray test
IEC 60068-5-52
Weight [g]
313
Dimensions [mm]
Ø 55.5 / L = 51.3
Materials
housing: PC/ABS; front lens: polyamide glass fibre reinforced
Accessories
Items supplied

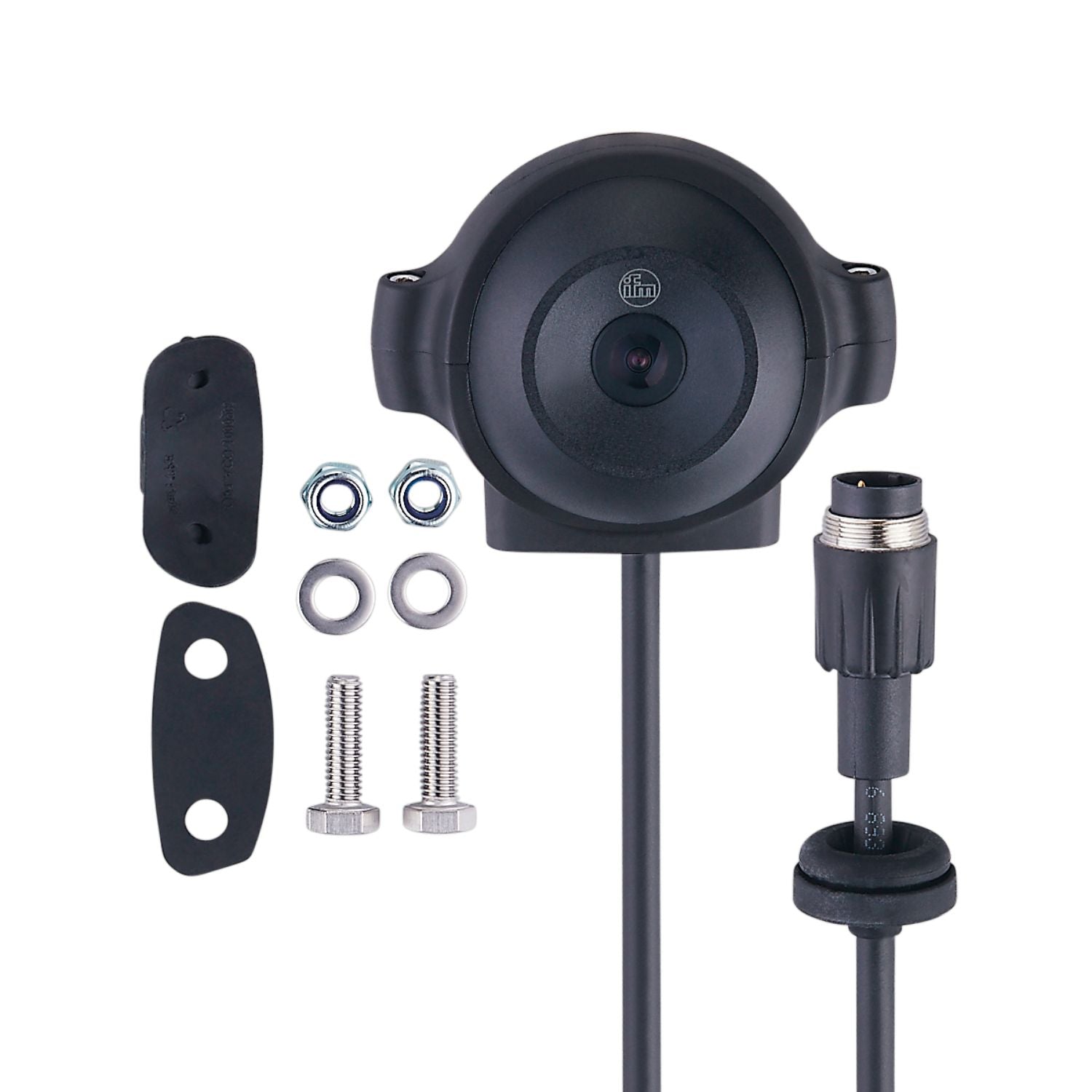

Mounting set:, E2M210
screws: 2 x M6 x 20
washers
Nuts: 2 x M6, self-locking
anti-slide pad
Pack quantity
1 pcs.
Electrical connection
Cable: 0.5 m
Connector: 1 x M16; coding: A; Shielded connection cable: yes
