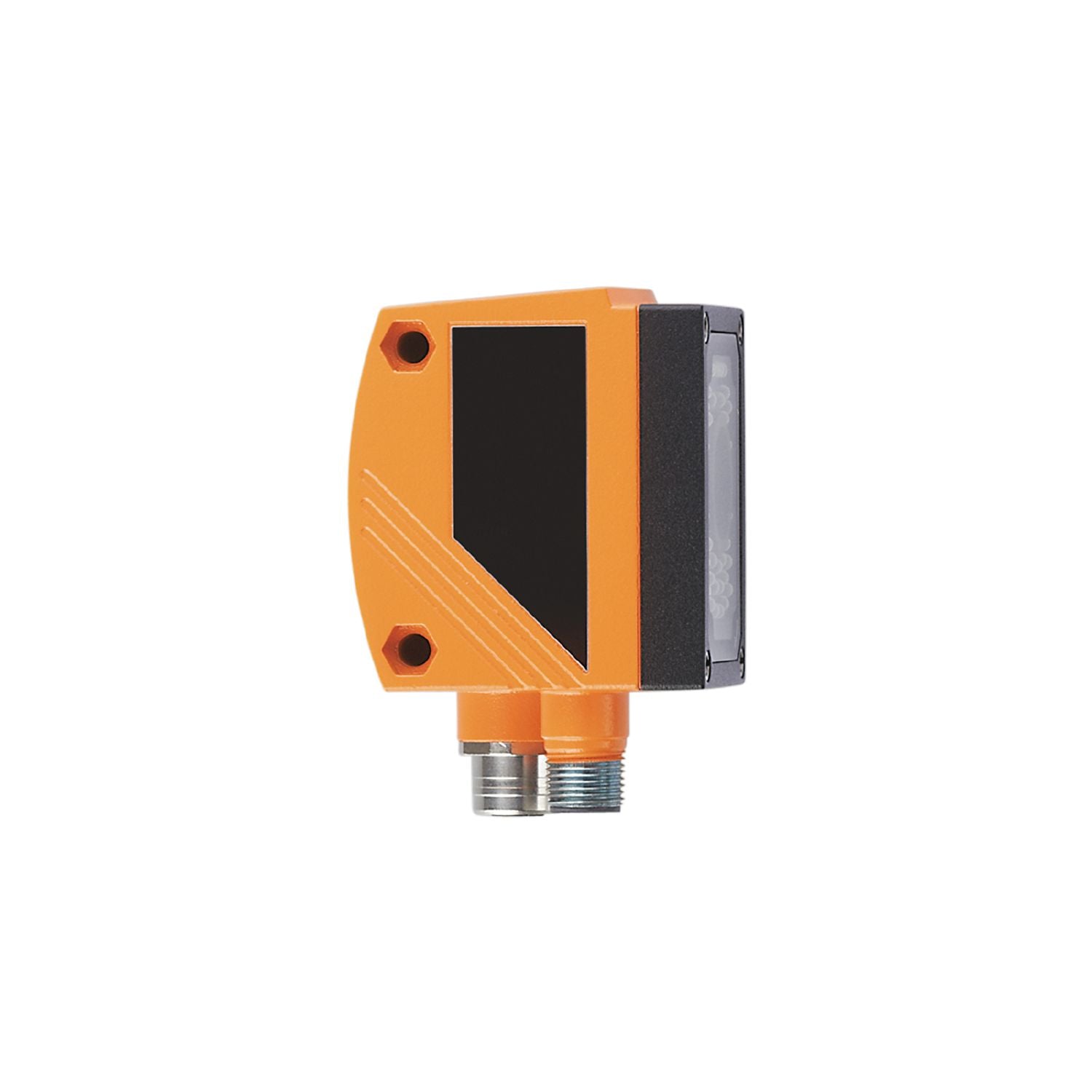

For checking presence, size, position or completeness. Reliable detection of deviations in shape or changes in colour. Stand-alone device with integrated illumination. Intuitive, user-friendly handling. High-performance Ethernet interface for data transmission
Type of light
infrared light
Image resolution [px]
640 x 480
Max. reading rate[Hz]
20
Operating voltage tolerance [%]
10
Operating voltage [V]
24 DC
Current consumption [mA]
300
Protection class
III
Reverse polarity protection
yes
Type of light
infrared light
Wave length [nm]
850
Image sensor
CMOS image sensor black/white
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 2; Number of digital outputs: 5
Inputs
Trigger
24 V PNP (IEC 61131-2 Typ 1); internal
Number of digital inputs
2
Input circuit of digital inputs
24 V PNP;(configurable; IEC 61131-2 Typ 1)
Outputs
Total number of outputs
5
Number of digital outputs
5;(configurable)
Output function
24 V PNP
Max. voltage drop switching output DC [V]
2
Max. current load per output [mA]
100
Short-circuit protection
yes
Overload protection
yes
Detection zone
Field of view size [mm]
Operating distance
field of view
Smallest detectable object
Resolution
50
16 x 12
0,1
0,025
75
24 x 18
0,2
0,05
100
32 x 24
0,3
0,075
200
64 x 48
0,4
0,1
400
128 x 96
0,8
0,2
1000
320 x 240
2,0
0,5
2000
640 x 480
4,0
1,0
Image resolution [px]
640 x 480
Max. reading rate[Hz]
20
Software / programming
Parameter setting options
via two pushbuttons and 10-segment display or via PC / notebook with operating software
Interfaces
Communication interface
Ethernet
Ethernet
Number of Ethernet interfaces
1
Transmission standard
10Base-T; 100Base-TX
Transmission rate
10; 100
Protocol
TCP/IP; EtherNet/IP
Factory settings
IP address: 192.168.0.59
subnet mask: 255.255.255.0
gateway IP address: 192.168.0.201
MAC address: see type label
Operating conditions
Ambient temperature [°C]
-10...60
Storage temperature [°C]
-40...85
Protection
IP 67
Tests / approvals
EMC
radiation of interference
EN 61326
immunity
EN 61326
Shock resistance
EN 60947-5-2, 7.4.1
IEC 60068-2-27
Vibration resistance
EN 60947-5-2, 7.4.2
IEC 60028-2-6
Weight [g]
433.5
Dimensions [mm]
60 x 42 x 53.5
Materials
housing: diecast zinc powder-coated; front pane: glass; LED window: PC
Displays / operating elements
Display
function
3 x LED, green
switching status
4 x LED, yellow
10-segment display, 4-digit
Accessories
Accessories (optional)
Operating software
Mounting accessories
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection - Ethernet
Connector: 1 x M12; coding: D
Electrical connection - Process connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O2V120-00 — 05.08.2011 —
