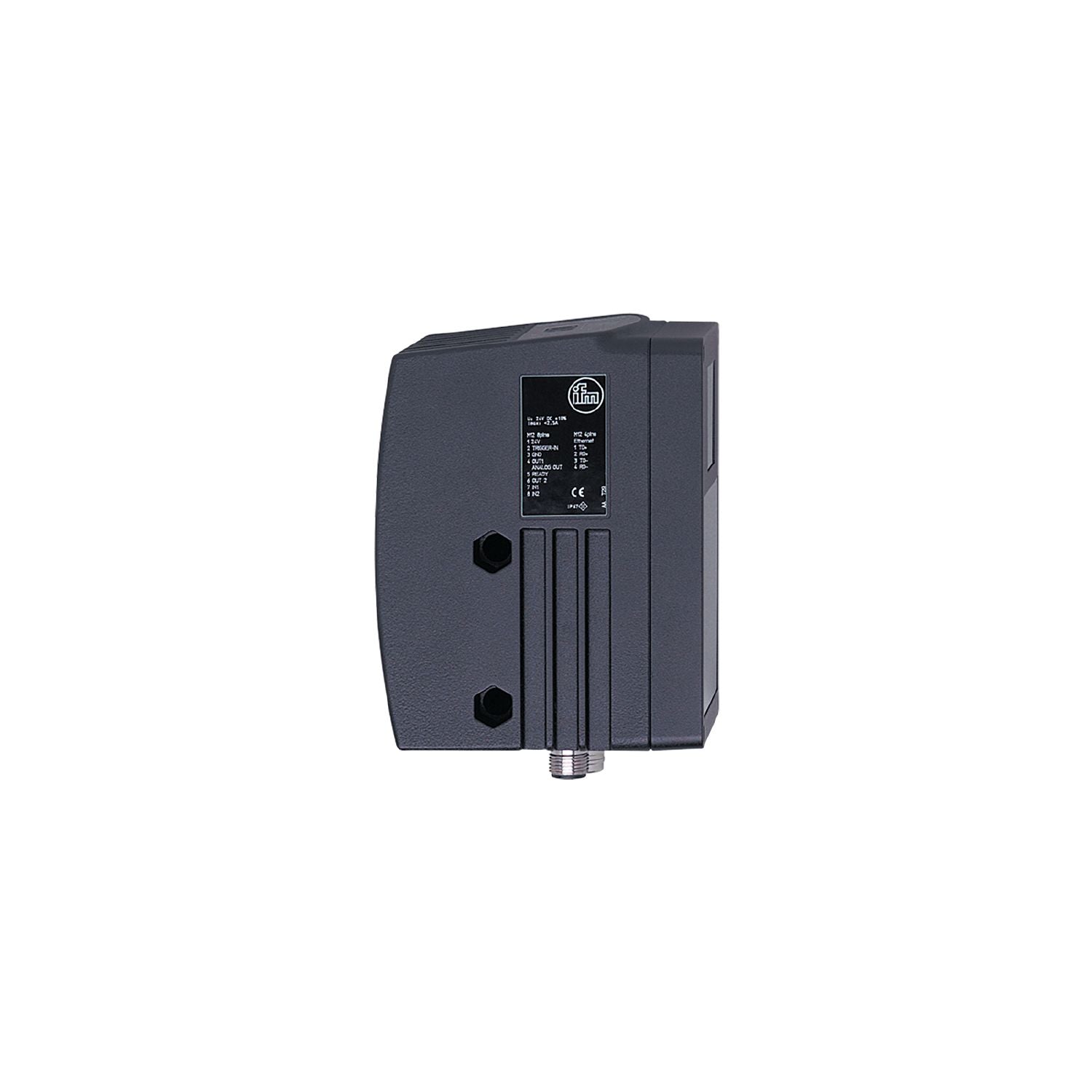

Visual assessment of distance, level or volume. Reliable distance measurement due to time-of-flight measurement. Illumination, measurement and evaluation in one unit. Output of 3072 distance and grey values per measurement for a detailed evaluation of the application. Integration by means of intuitive parameter setting software
Image resolution 3D [px]
64 x 48
Angle of aperture 3D [°]
40 x 30
Max. reading rate[Hz]
20
Operating voltage tolerance [%]
10
Operating voltage [V]
24 DC
Current consumption [mA]
peak current pulsed: 3250; typical value: 960
Power consumption [W]
16
Protection class
III
Image sensor
PMD 3D ToF-Chip
Internal lighting
yes;(infrared: 850 nm invisible radiation LED class 1)
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 2; Number of digital outputs: 2
Inputs
Trigger
24 V PNP (IEC 61131-2 Typ 1)
Number of digital inputs
2
Input circuit of digital inputs
24 V PNP;(configurable; IEC 61131-2 Typ 1)
Outputs
Total number of outputs
2
Number of digital outputs
2;(configurable)
Output function
24 V PNP
Max. voltage drop switching output DC [V]
1
Max. current load per output [mA]
100
Analogue current output [mA]
4...20
Max. load [Ω]
300
Analogue voltage output [V]
0...10
Min. load resistance [Ω]
10000
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Image resolution 3D [px]
64 x 48
Angle of aperture 3D [°]
40 x 30
Max. reading rate[Hz]
20
Software / programming
Parameter setting options
via two pushbuttons and 10-segment display or via PC / notebook with operating software
Interfaces
Communication interface
Ethernet
Ethernet
Number of Ethernet interfaces
1
Transmission standard
10Base-T; 100Base-TX
Transmission rate
10; 100
Factory settings
IP address: 192.168.0.69
subnet mask: 255.255.255.0
gateway IP address: 192.168.0.201
MAC address: see type label
Operating conditions
Ambient temperature [°C]
-10...50
Storage temperature [°C]
-40...85
Protection
IP 67
Tests / approvals
MTTF [years]
55
Weight [g]
1176
Dimensions [mm]
123.5 x 75 x 95
Materials
housing: diecast aluminium; front pane: PMMA; display window: PC
Displays / operating elements
Display
switching status
4 x LED, yellow
4 x LED, green
10-segment display, 4-digit
Pack quantity
1 pcs.
Electrical connection - Ethernet
Connector: 1 x M12; coding: D
Electrical connection - Process connection
Connector: 1 x M12; coding: A
Other data
Field of view size
measuring range / distance
Length
Width
center pixel [mm]
minimum object surface
500
420
290
7 x 7
13 x 13
1000
840
580
13 x 13
26 x 26
1500
1260
870
20 x 20
39 x 39
2000
1680
1160
26 x 26
53 x 53
2500
2100
1450
33 x 33
66 x 66
3000
2520
1740
39 x 39
79 x 79
3500
2940
2030
46 x 46
92 x 92
4000
3360
2320
53 x 53
105 x 105
4500
3780
2610
59 x 59
118 x 118
5000
4200
2900
66 x 66
131 x 131
5500
4620
3190
72 x 72
144 x 144
6000
5040
3480
79 x 79
158 x 158
For reliable detection the object must be detected by at least 2 x 2 pixels
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O3D201-02 — 23.05.2011 —
