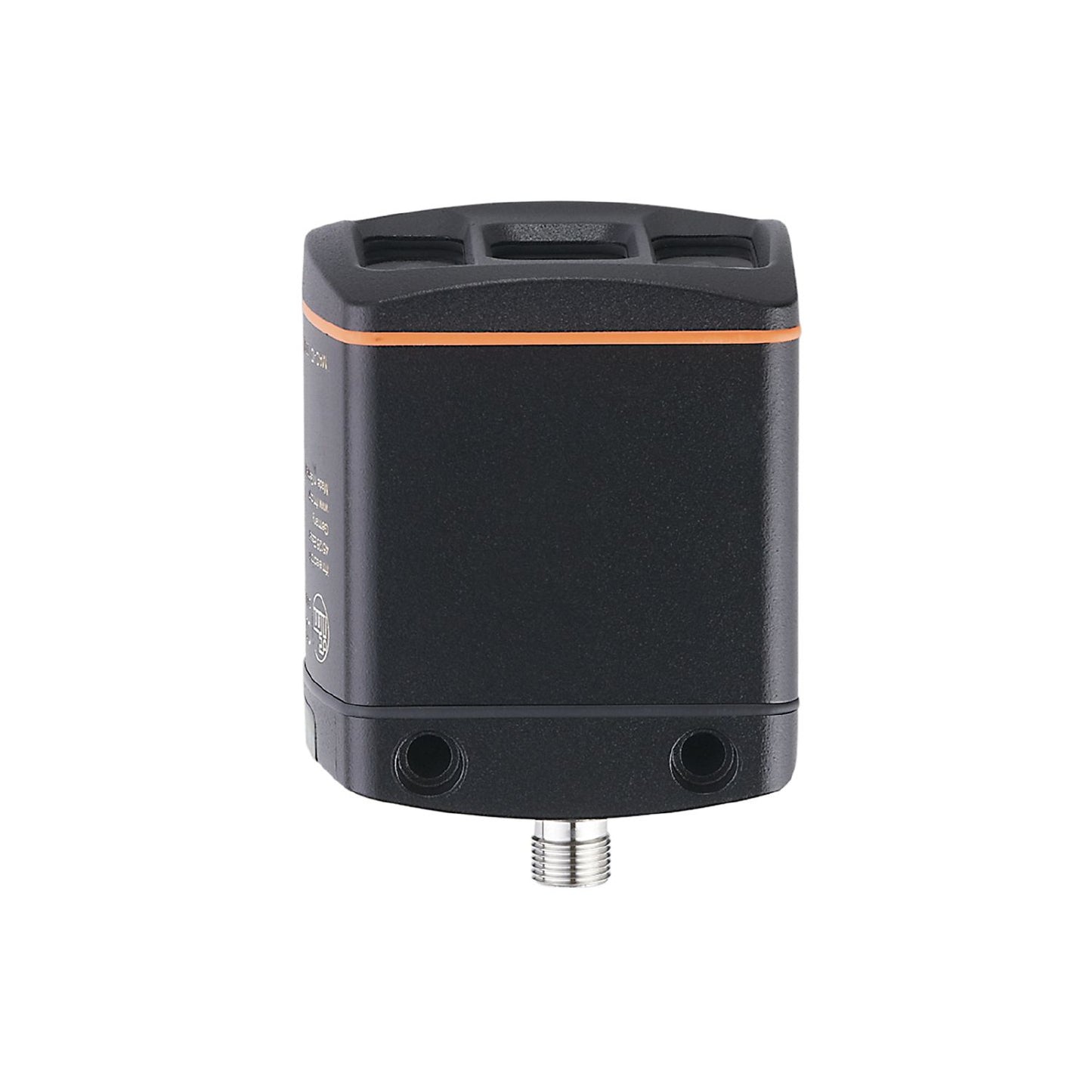

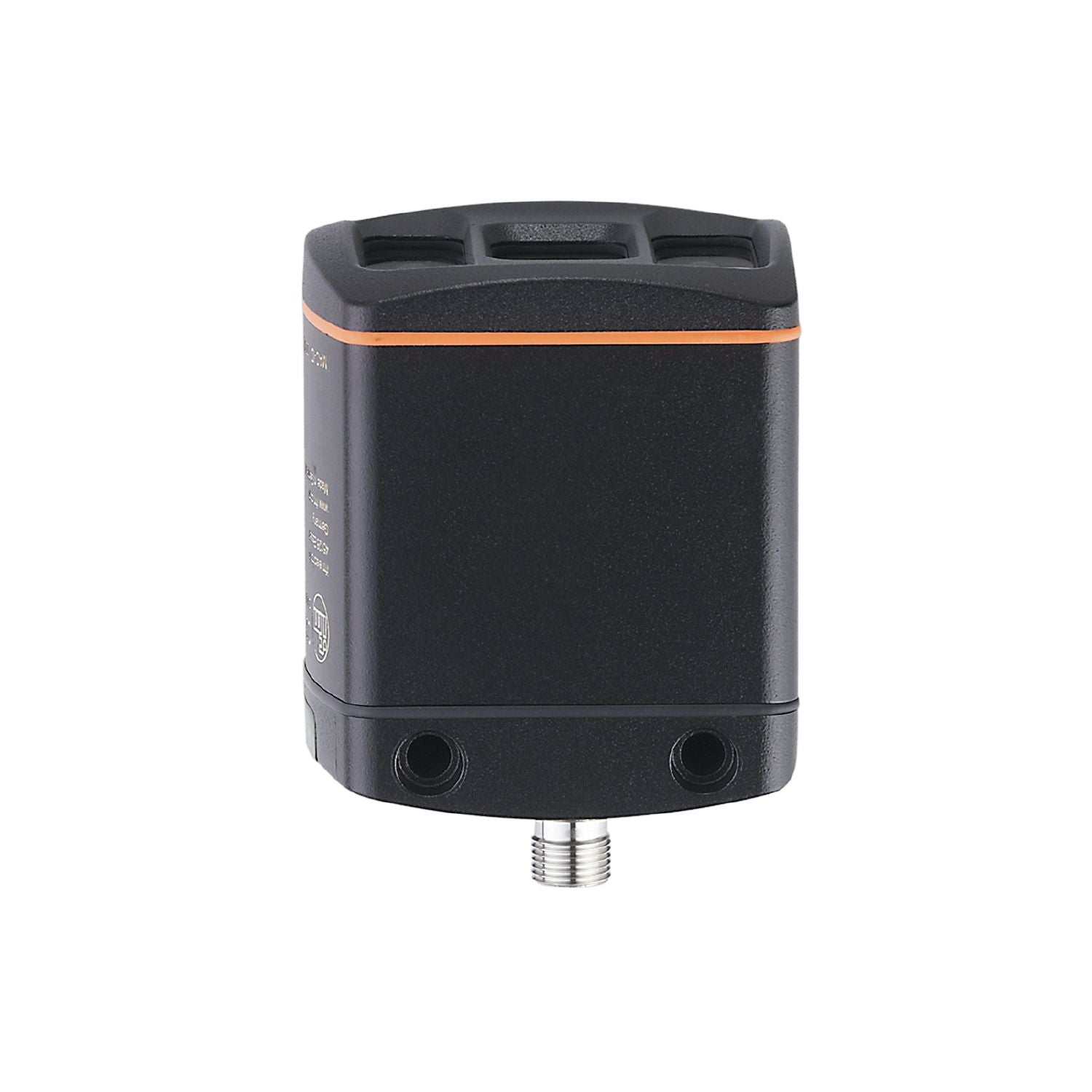

Visual assessment of distance, level or volume. Reliable distance measurement due to time-of-flight measurement. Illumination, measurement and evaluation in one unit. Output of 93,000 distance and grey values per measurement for a detailed evaluation of the application. Integration by means of intuitive parameter setting software
Image resolution 3D [px]
352 x 264
Angle of aperture 3D [°]
40 x 30; (nominal value without lens distortion correction)
Max. reading rate[Hz]
25
Application
output of 3D image data
Operating voltage [V]
20.4...28.8 DC;(EN 61131-2)
Current consumption [mA]
< 2400;(peak current pulsed; typical value: 420; maximum value: 1600)
Power consumption [W]
10;(typical value)
Protection class
III
Image sensor
PMD 3D ToF-Chip
Internal lighting
yes;(infrared: 850 nm invisible radiation LED)
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Inputs
Trigger
24 V PNP/NPN (IEC 61131-2 Typ 3)
Outputs
Total number of outputs
2
Number of digital outputs
2;(configurable)
Output function
24 V PNP/NPN;(EN 61131-2)
Max. current load per output [mA]
100
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Operating distance [mm]
300...10000
Note on operating distance
object size: 200 x 200 mm
reflectivity: 18 %
Image resolution 3D [px]
352 x 264
Angle of aperture 3D [°]
40 x 30; (nominal value without lens distortion correction)
Max. reading rate[Hz]
25
Measuring/setting range
Measuring range [m]
< 30
Software / programming
Parameter setting options
via PC with ifm Vision Assistant or XML-RPC
Interfaces
Communication interface
Ethernet
Ethernet
Number of Ethernet interfaces
1
Transmission standard
10Base-T; 100Base-TX
Transmission rate
10; 100
Protocol
TCP/IP
Factory settings
IP address: 192.168.0.69
subnet mask: 255.255.255.0
gateway IP address: 192.168.0.201
Operating conditions
Ambient temperature [°C]
-10...50
Storage temperature [°C]
-40...85
Protection
IP 65; IP 67
Max. immunity to extraneous light [klx]
8;(with reduced measuring accuracy and repeatability: < 100)
Tests / approvals
EMC
DIN EN 61000-6-4
radiation of interference / industrial environments
DIN EN 61000-6-2
immunity / industrial environments
Shock resistance
DIN EN 60068-2-27
50 g / (11 ms) not repetitive
DIN EN 60068-2-27
40 g / (6 ms) repetitive
Vibration resistance
DIN EN 60068-2-6
2 g / (10...150 Hz)
DIN EN 60068-2-64
2.3 g RMS / (10...500 Hz)
Photobiological safety
exempt group;(DIN EN 62471)
Electrical protection
DIN EN 61010-2-201
electrical supply only via PELV circuits
MTTF [years]
45.02
Weight [g]
785
Dimensions [mm]
72 x 67.1 x 82.6
Materials
housing: diecast aluminium; front pane: Gorilla Glass; function display: PA
Displays / operating elements
Display
function
2 x LED, green Ethernet operation
switching status
2 x LED, yellow OUT 1 OUT 2
Accessories
Items supplied
Protective covers
Pack quantity
1 pcs.
Electrical connection - Ethernet
Connector: 1 x M12; coding: D
Electrical connection - Process connection
Connector: 1 x M12; coding: A
Other data
Field of view size
without lens distortion correction
with lens distortion correction
measuring range / distance [m]
Length [m]
Width [m]
Length [m]
Width [m]
0.50
0.27
0.36
0.26
0.35
1.00
0.53
0.73
0.52
0.69
2.00
1.07
1.46
1.04
1.39
3.00
1.60
2.19
1.56
2.08
4.00
2.13
2.92
2.08
2.78
5.00
2.67
3.65
2.61
3.47
