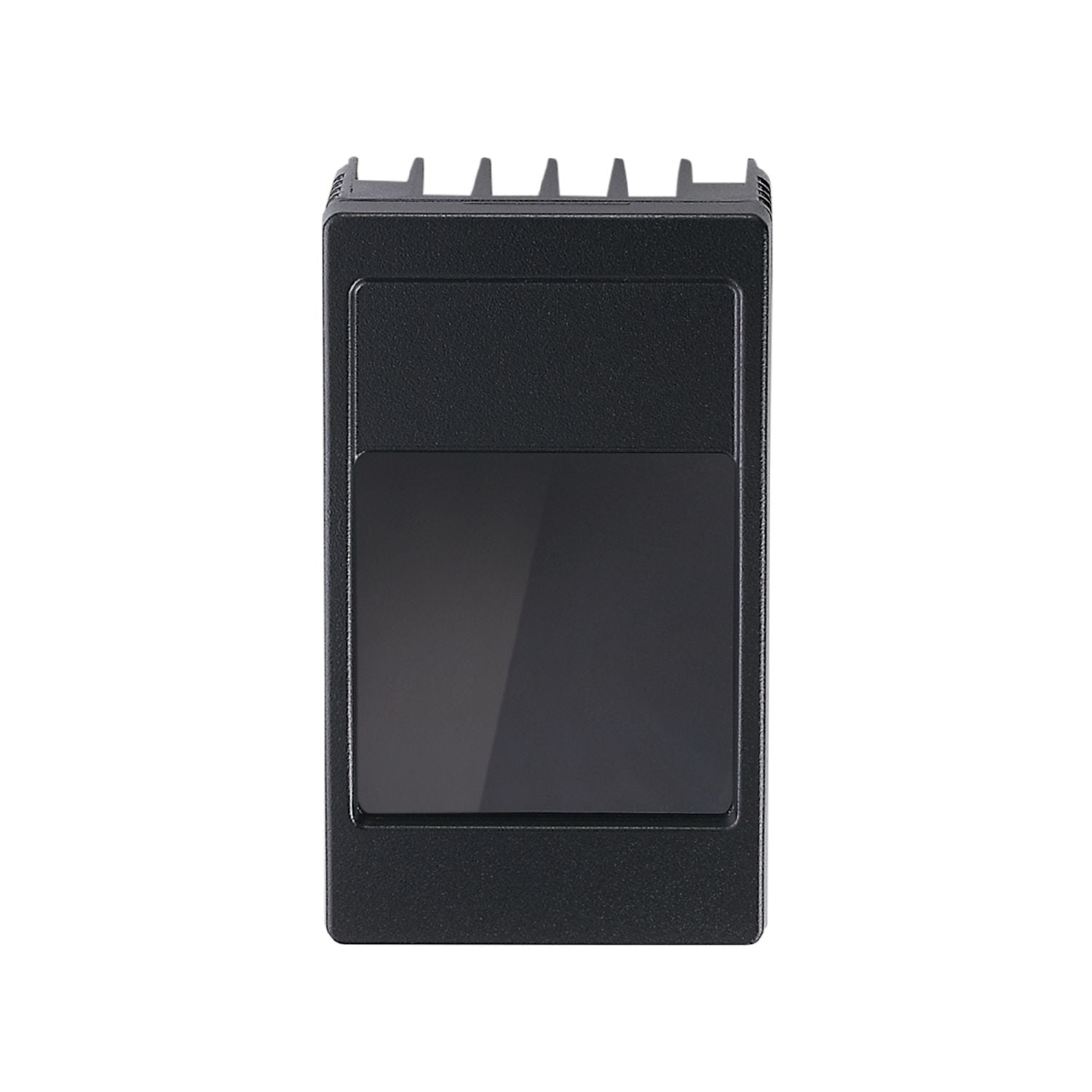

For sensors for 3D detection of scenes and objects. Suited for use in mobile machines. Compact and robust housing. High protection rating for the requirements of harsh industrial environments. Wide operating temperature range
Type of light
infrared light
Angle of aperture [°]
70 x 23
Image repetition frequency 3D [Hz]
25 / 33 / 50
Operating voltage [V]
9...32 DC
Current consumption [mA]
< 5000
Power consumption [W]
45
Protection class
III
Type of light
infrared light
Wave length [nm]
850
Detection zone
Angle of aperture [°]
70 x 23
Image repetition frequency 3D [Hz]
25 / 33 / 50
Software / programming
Parameter setting options
Via PC and O3M15x / O3M25x with ifm Vision Assistant
Interfaces
Communication interface
MCI
Operating conditions
Ambient temperature [°C]
-40...85
Note on ambient temperature
with high image repetition frequency of 25 Hz
Storage temperature [°C]
-40...105
Protection
IP 67; IP 69K;(with mounted connectors or protective caps)
Tests / approvals
EMC
DIN EN 61000-6-4
industrial environments
DIN EN 61000-6-2
industrial environments
Shock resistance
DIN EN 60068-2-27
30 g / 6 ms bump
Vibration resistance
DIN EN 60068-2-6
10 g / 10...500 Hz swept sine
DIN EN 60068-2-64
10...2000 Hz noise
Photobiological safety
risk group 1;(DIN EN 62471)
Electrical protection
DIN EN 61010-2-201
electric shock / electrical supply only via PELV circuits
MTTF [years]
78
Weight [g]
1402.9
Dimensions [mm]
143 x 85 x 83.5
Materials
housing: diecast aluminium; disc: polycarbonate
Remarks
The illumination unit is required for the operation of the sensor.
Only use original ifm cables to connect sensor and illumination unit.
Pack quantity
1 pcs.
Electrical connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O3M950-00 — 15.08.2022 —
