radiation of interference / residential, commercial and light-industrial environments
EN IEC 61000-6-2
immunity / industrial environments
Shock resistance
EN 60068-2-27
50 g / (11 ms) not repetitive
EN 60068-2-27
40 g / (6 ms) repetitive
Vibration resistance
EN 60068-2-6
2 g / (10...150 Hz)
EN 60068-2-64
2.3 g RMS / (10...500 Hz)
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
Electrical protection
EN 61010-2-201
electrical supply only via PELV circuits
Weight [g]
187.9
Dimensions [mm]
90 x 31 x 26
Materials
housing: diecast zinc coated; Cover: PMMA; window: glass / PMMA; rear of the housing: aluminium coated
Tightening torque [Nm]
< 0.8
Pack quantity
1 pcs.

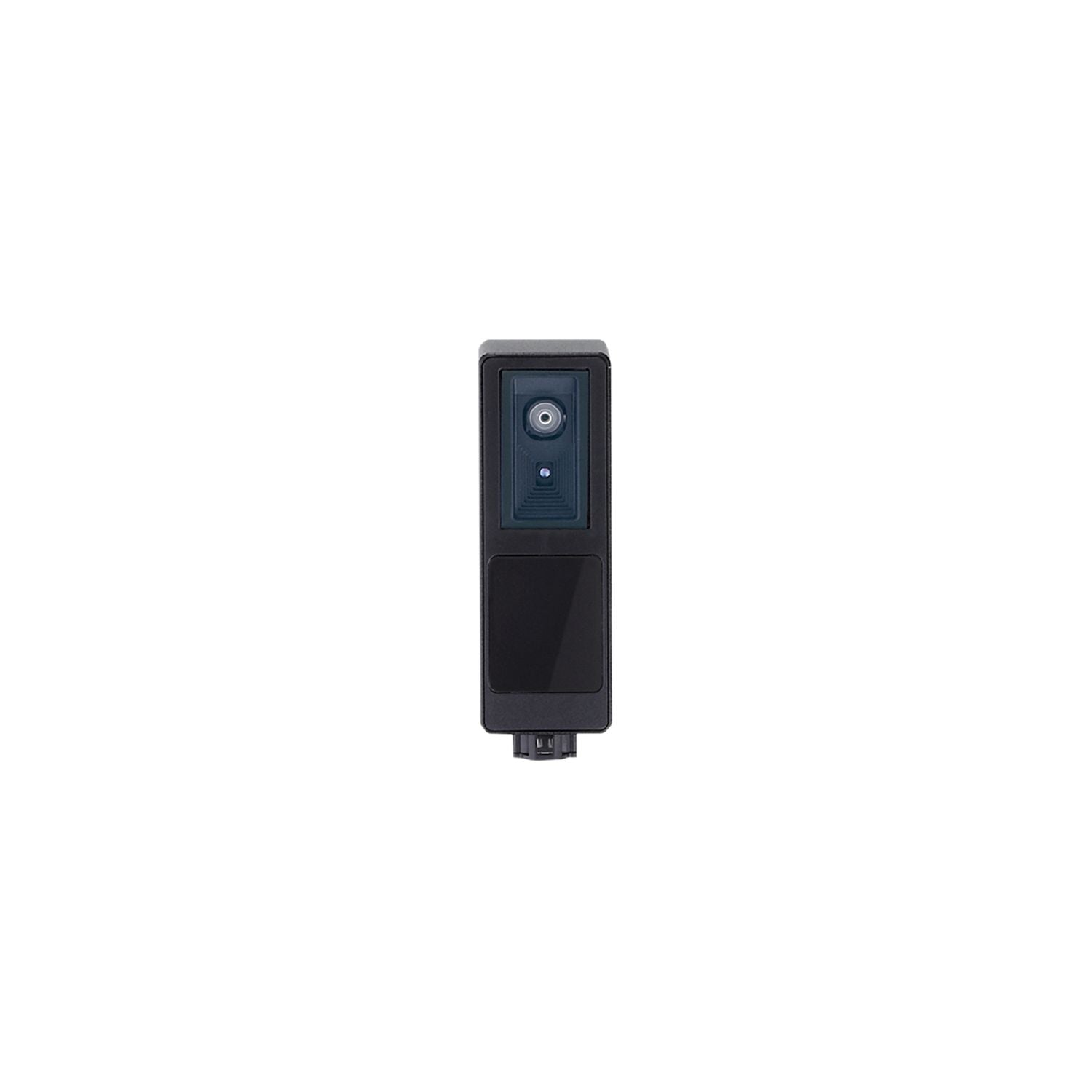

Electrical connection - 2D/3D camera
Connector: 1 x Dual-HFM (AMK142-1M4Z5-A)
Other data
Field of view size
measuring range / distance [m]
Length [m]
Width [m]
1.00
1.15
0.80
2.00
2.30
1.65
3.00
3.45
2.50
4.00
4.60
3.30
5.00
5.80
4.15
6.00
6.95
4.95
7.00
8.10
5.80
repeatability of the distance measurement of an individual pixel
measuring range / distance [m]
repeatability of the measured distance values on grey objects (18% reflectivity) [mm]
accuracy [mm]
typical value
typical value
0...1
± 5
± 9
1...2
± 6
± 10
2...3
± 9
± 12
3...4
± 13
± 13
4...5
± 19
± 15
5...6
± 27
± 16
6...7
± 36
± 18
object in centre of the image
Ambient temperature
20° C
measured at a reflectivity of 18% to 90%
The repeatability can be optimised with filter functions
Temperature drift
Temperature range
-10...40 °C
Temperature drift [mm/K]
0.1
