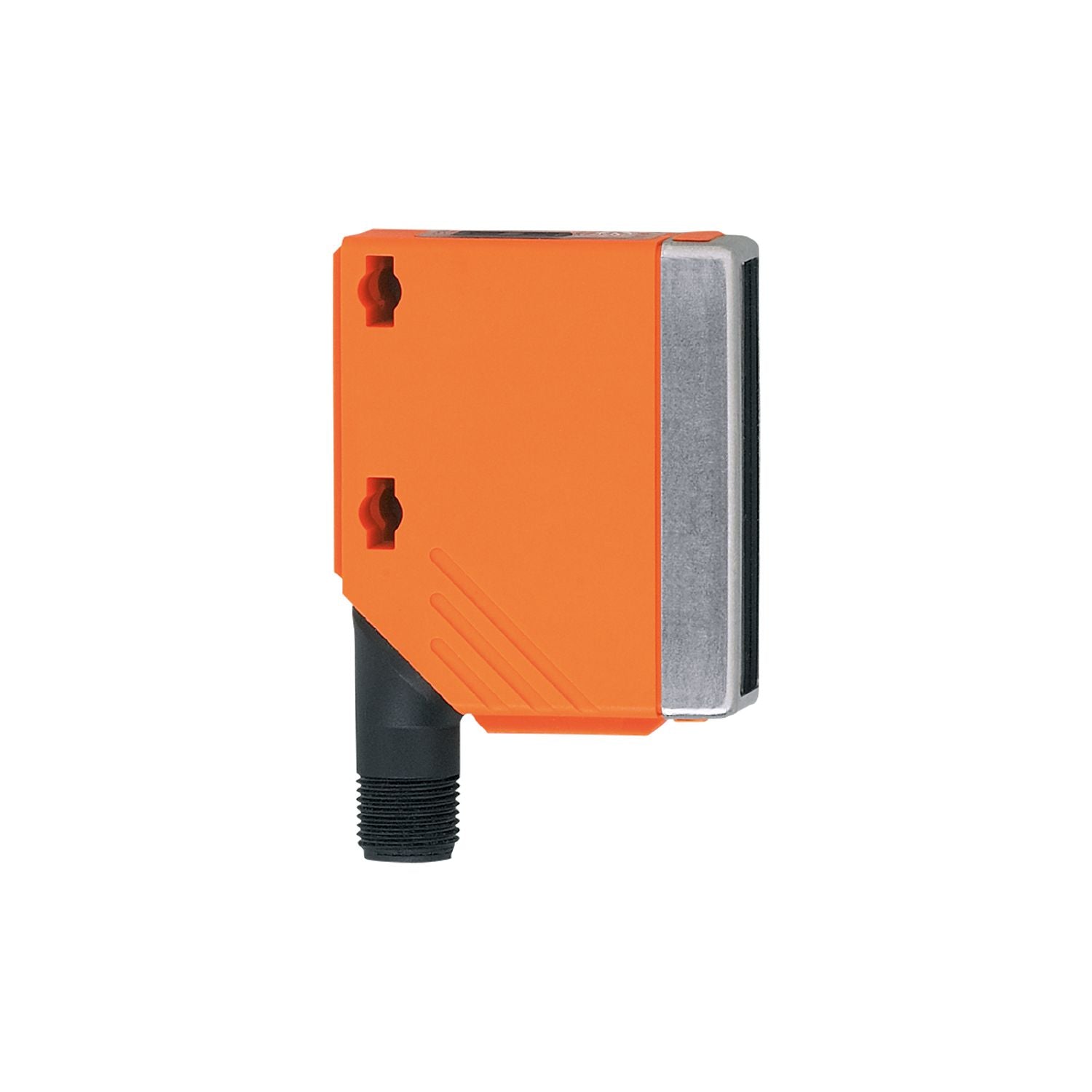

IFM O5C500 - Colour sensor O5C-MAKG/US100

Recognition, sorting and checking of objects based on their colour.
Easy adjustment of the device function via teach.
Reliable detection of colour shades.
High switching frequency for fast processes.
Extensive range of fixing components

Type of light	red light; green light; blue light
Housing	rectangular

Operating voltage [V]	10...36 DC
Current consumption [mA]	50;((24 V))
Protection class	II
Reverse polarity protection	yes
Type of light	red light; green light; blue light
Wave length [nm]	625; 525; 465

Outputs

Electrical design	PNP/NPN;(automatic load detection PNP/NPN)
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	2000
Notes on switching frequency [Hz]	for tolerance step 5
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	15...19
Max. light spot width [mm]	2.5
Max. light spot height [mm]	6

Response times

Response time [s]	< 0.3

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	491

Weight [g]	82.5
Housing	rectangular
Dimensions [mm]	56 x 18.2 x 46.8
Materials	housing: PA; bezel: stainless steel; operator interface: TPU / PC
Lens material	front pane:PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow tolerance step 1 x LED, green
Teach function	yes
Electronic lock	yes

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O5C500-00 — 13.04.2023 —
