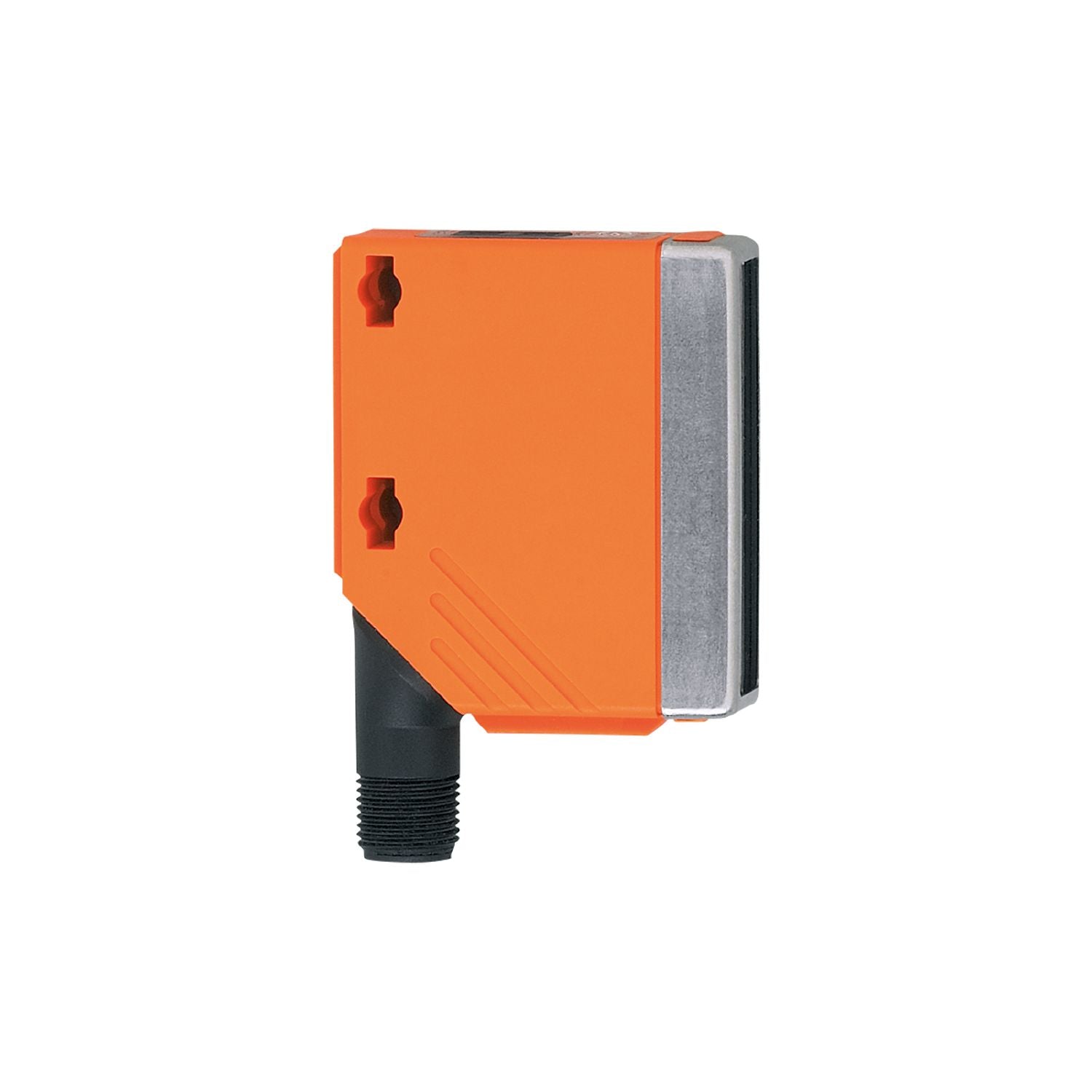

IFM O5K500 - Contrast sensor O5K-FAKG/US100

Reliable detection of print marks and particularly flat objects.
Automatic selection of the ideal colour of the transmitted light.
Easy adjustment of the device function via teach.
Very high switching frequency of 10,000 Hz for fast processes.
Extensive range of fixing components

Type of light	red light; green light; blue light
Housing	rectangular

Operating voltage [V]	10...36 DC
Current consumption [mA]	50;((24 V))
Protection class	II
Reverse polarity protection	yes
Type of light	red light; green light; blue light
Wave length [nm]	625; 525; 465

Outputs

Electrical design	PNP/NPN;(automatic load detection PNP/NPN)
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	10000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	18...22
Max. light spot width [mm]	1.5
Max. light spot height [mm]	5

Response times

Response time [ms]	< 0.05

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	568

Weight [g]	79.5
Housing	rectangular
Dimensions [mm]	56 x 18.2 x 46.8
Materials	housing: PA; bezel: stainless steel; operator interface: TPU / PC
Lens material	front pane:PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow
Teach function	yes
Electronic lock	yes

Remarks	operating voltage "supply class 2" according to cULus
Pack quantity	1 pcs.

Electrical connection

	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O5K500-00 — 13.04.2023 —
