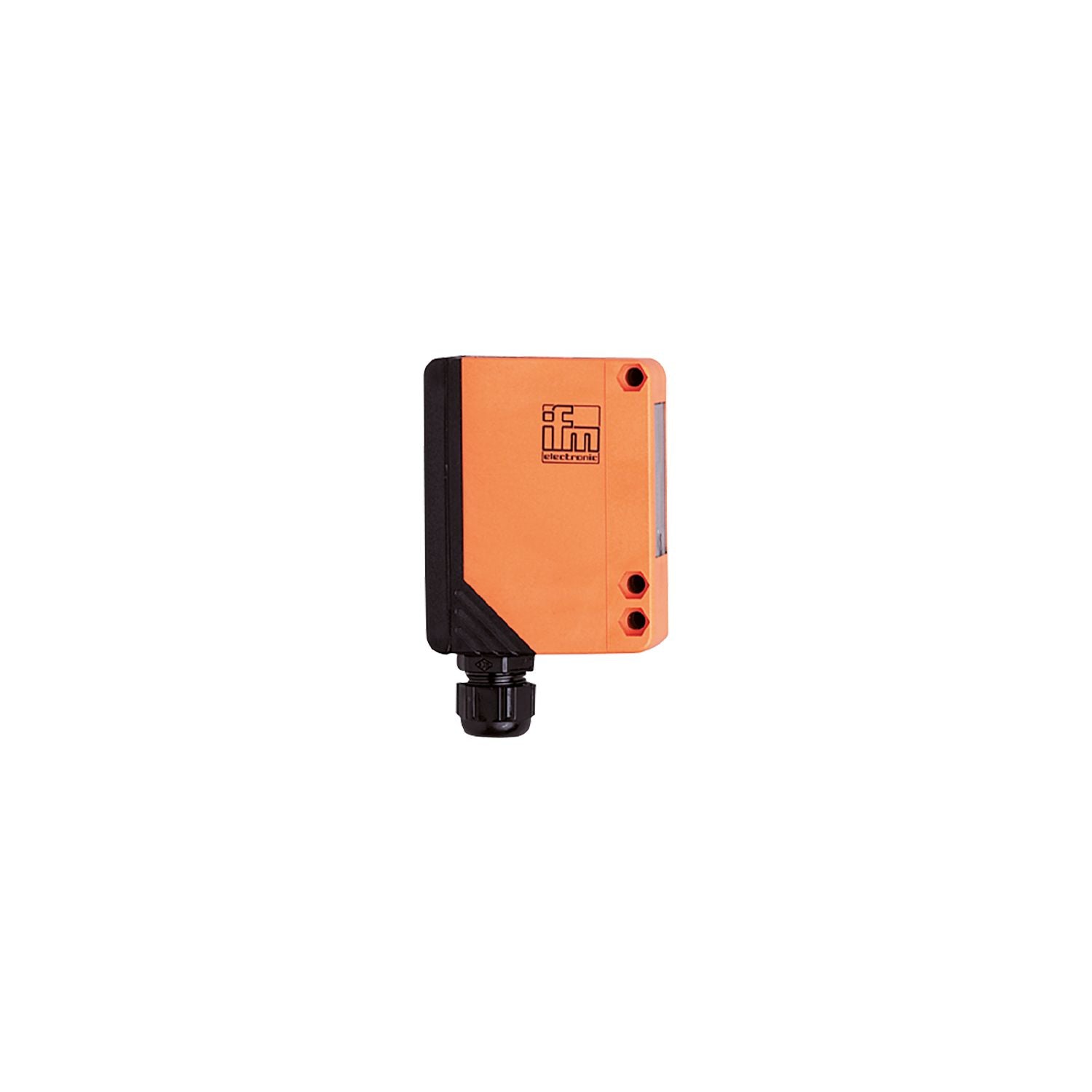

Very long range. Intuitive setting of sensitivity and duration of switching delay. Programmable light-on/dark-on mode. With function check output to signal soiling or maladjustment. LED display to check operation, switching status and function
Type of light
red light
Housing
rectangular
Special feature
polarisation filter
Function principle
Retro-reflective sensor
Frequency AC [Hz]
47...63
Operating voltage [V]
20...250 AC/DC
Max. power consumption [VA]
2
Protection class
II
Reverse polarity protection
no
Type of light
red light
Wave length [nm]
660
Outputs
Electrical design
relay
Output function
light-on/dark-on mode;(programmable)
Contact rating
250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W
Short-circuit proof
no
Overload protection
no
Time function [s]
0.5...10
Detection zone
Range referred to prismatic reflector [m]
0.2...8;(Prismatic reflector Ø 80 E20005)
Range adjustable
yes
Max. light spot diameter [mm]
420
Light spot dimensions refer to
at maximum range
Polarisation filter available
yes
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 65
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
MTTF [years]
264
Weight [g]
305
Housing
rectangular
Dimensions [mm]
90 x 30 x 70
Materials
PPO modified
Lens material
PMMA
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Operating elements
on-delay or off-delay selectable via slide switch
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting
Accessories
Items supplied
Angle bracket: 1, E20514
screwdrivers
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OA0107-00 — 13.04.2023 —
