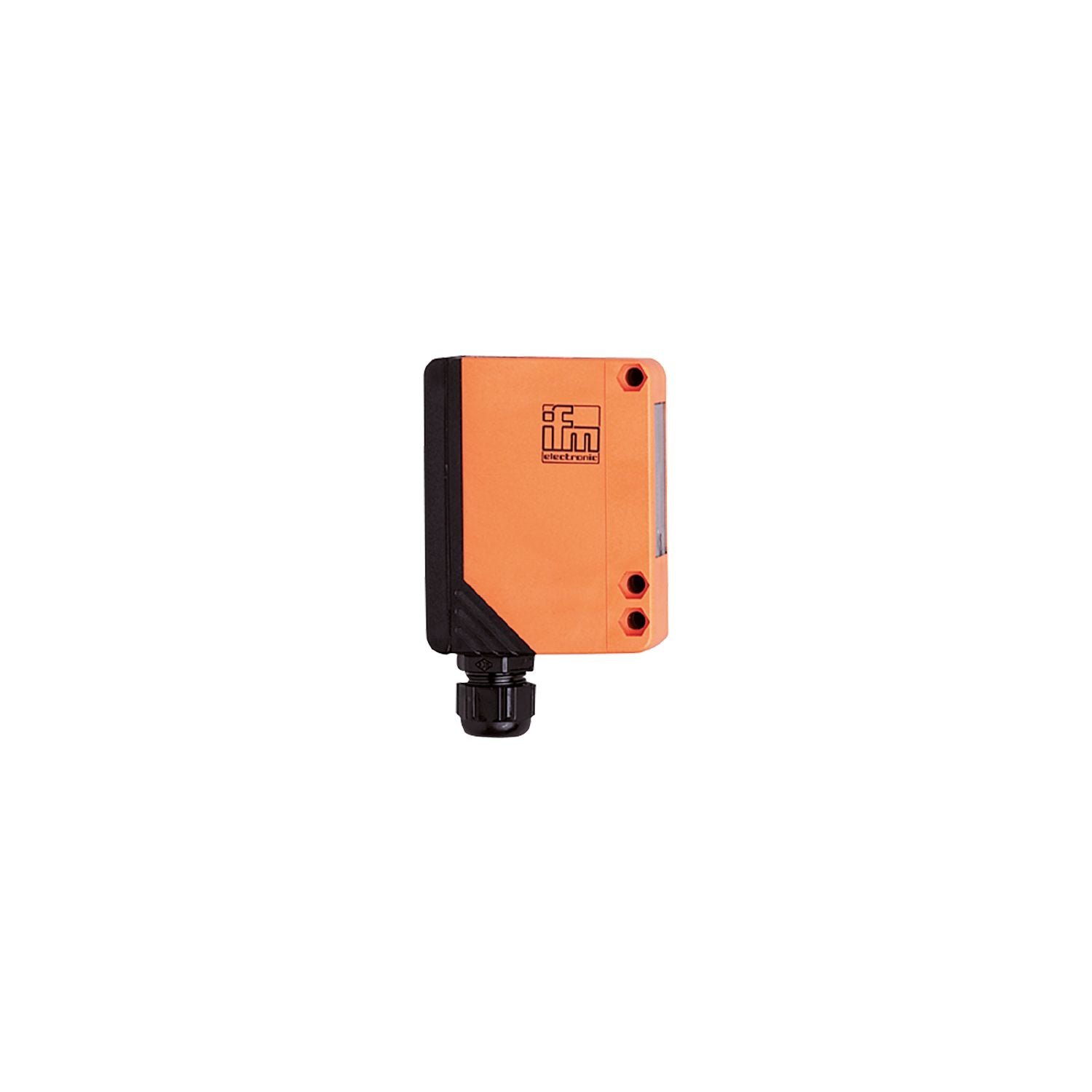

Very long range. Intuitive setting of sensitivity and duration of switching delay. Programmable light-on/dark-on mode. With function check output to signal soiling or maladjustment. LED display to check operation, switching status and function
Type of light
infrared light
Housing
rectangular
Function principle
Diffuse reflection sensor
Frequency AC [Hz]
47...63
Operating voltage [V]
20...250 AC/DC
Max. power consumption [VA]
2
Protection class
II
Reverse polarity protection
no
Type of light
infrared light
Wave length [nm]
880
Outputs
Electrical design
relay
Output function
light-on/dark-on mode;(programmable)
Contact rating
250 V AC / 3 A / 360 VA, 125 V DC / 3 A / 30 W
Switching frequency AC [Hz]
10
Switching frequency DC [Hz]
10
Short-circuit proof
no
Overload protection
no
Time function [s]
0.5...10
Detection zone
Range [mm]
5...1500;(white paper 200 x 200 mm)
Range adjustable
yes
Max. light spot diameter [mm]
370
Light spot dimensions refer to
at maximum range
Operating conditions
Ambient temperature [°C]
-25...60
Protection
IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
264
Weight [g]
307
Housing
rectangular
Dimensions [mm]
90 x 30 x 70
Materials
PPO modified
Lens material
PMMA
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
operation
1 x LED, green
function
1 x LED, red
Operating elements
on-delay or off-delay selectable via slide switch
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 5 A; fast acting
Accessories
Items supplied
Angle bracket: 1, E20514
screwdrivers
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OA0109-00 — 13.04.2023 —
