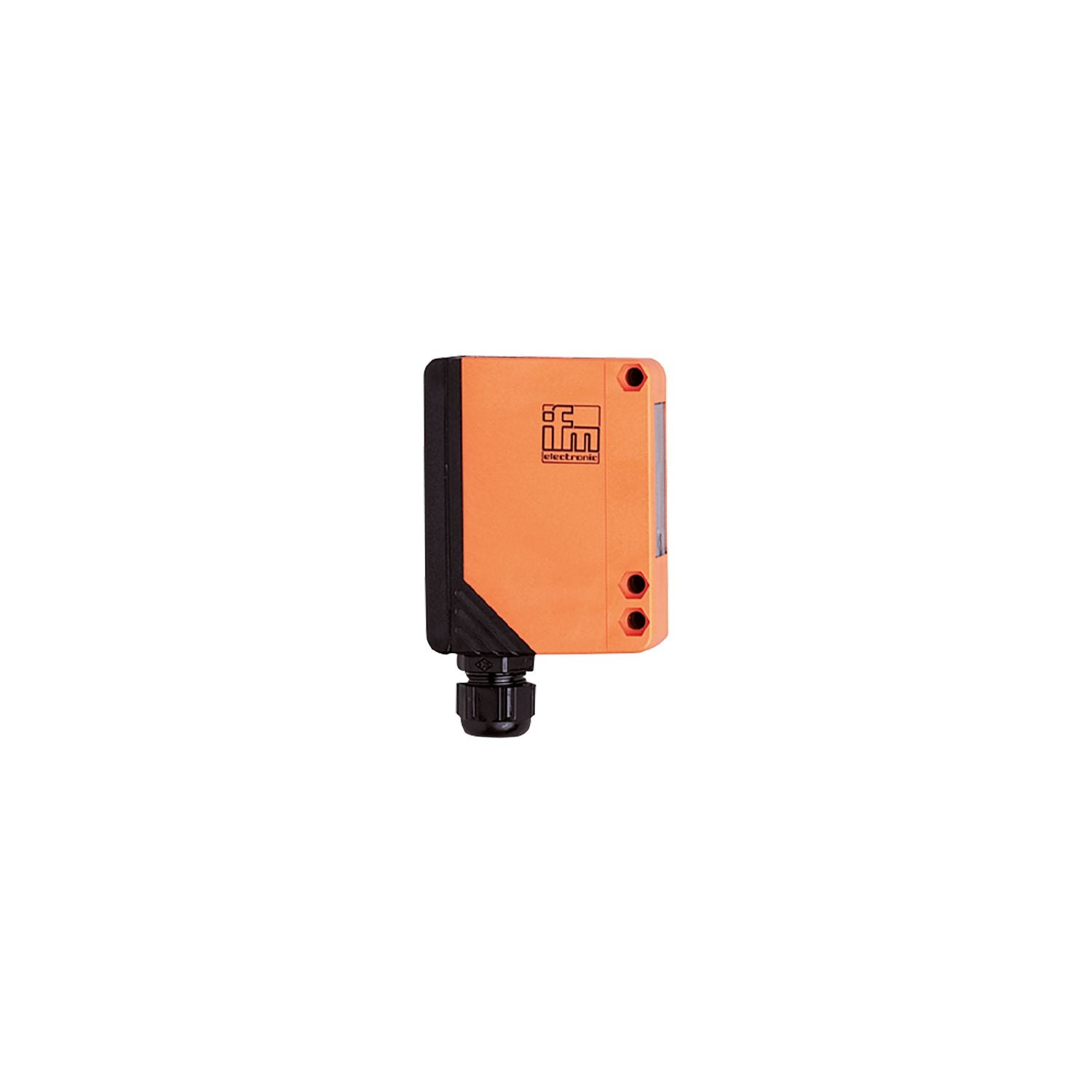

IFM OA5209 - Diffuse reflection sensor OAT-FCKG/T

Very long range.
Intuitive setting of sensitivity and duration of switching delay.
Programmable light-on/dark-on mode.
With function check output to signal soiling or maladjustment.
LED display to check operation, switching status and function

Type of light	infrared light
Housing	rectangular

Special feature	Function check output
Function principle	Diffuse reflection sensor

Operating voltage [V]	10...36 DC
Current consumption [mA]	< 50
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	875

Outputs

Electrical design	PNP/NPN
Output function	light-on/dark-on mode;(programmable)
Function check output	yes
Max. current load for function check output [mA]	10
Permanent current rating of switching output DC [mA]	250
Max. current load in dual output mode [mA]	100
Switching frequency DC [Hz]	300
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes
Time function [s]	0.5...10

Detection zone

Range [mm]	5...2750;(white paper 300 x 300 mm)
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	357

Weight [g]	291
Housing	rectangular
Dimensions [mm]	90 x 30 x 70
Materials	PPO modified
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red
Operating elements	on-delay or off-delay selectable via slide switch

Accessories

Items supplied	Angle bracket: 1, E20514 screwdrivers

Pack quantity	1 pcs.

Electrical connection

Connection	terminals: ...1.5 mm²; Cable gland: M16 X 1.5

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OA5209-00 — 13.04.2023 —
