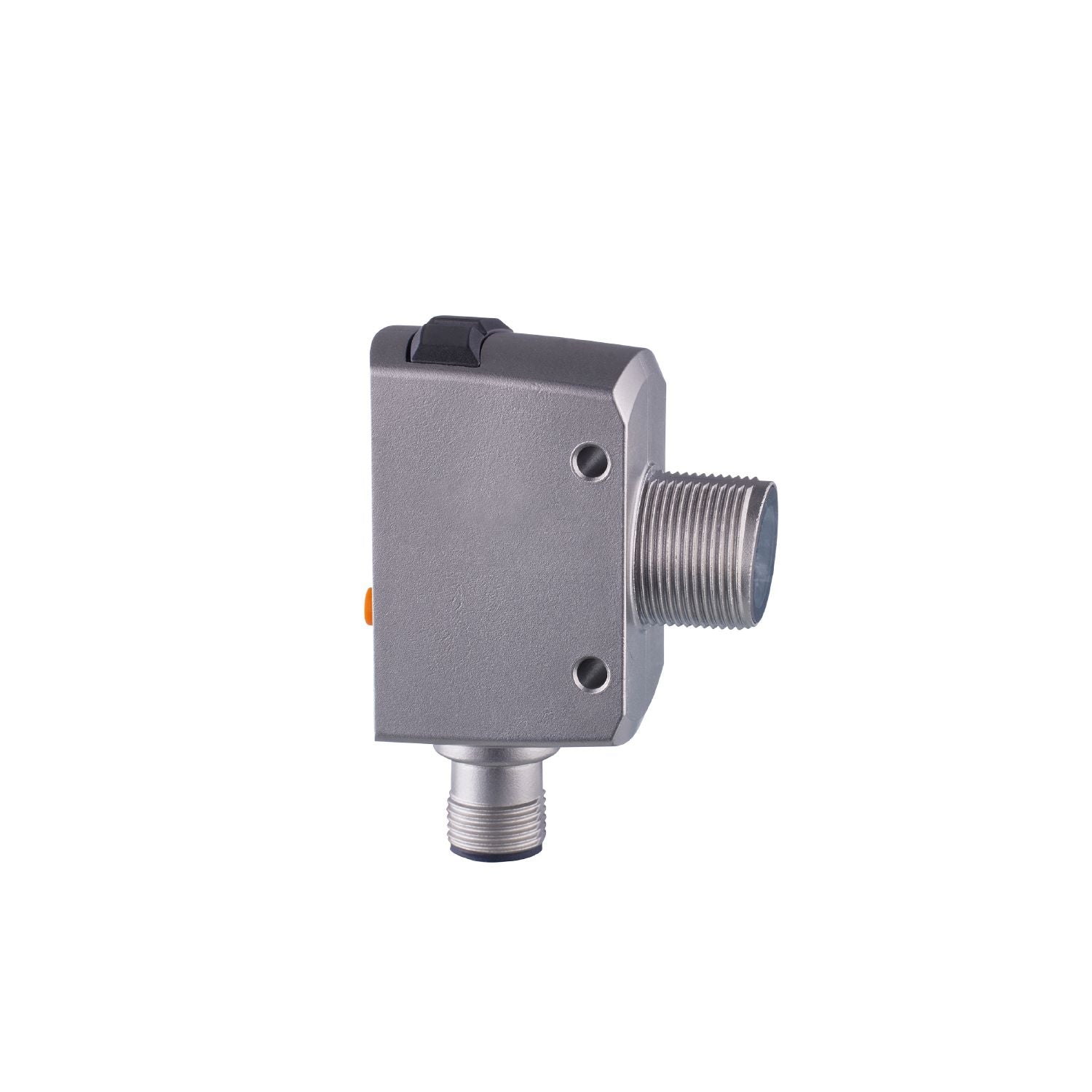

Small compact design with standard M18 thread and PMD time-of-flight technology. Measurement to the nearest millimetre and monitoring of distances in the running process. Colour-independent range. Simultaneous output of distance value and reflectivity for increased process reliability
Type of light
red light
Laser protection class
1
Housing
rectangular with M18 thread
Operating voltage [V]
10...30 DC;("supply class 2" to cULus)
Current consumption [mA]
45;(24 V)
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
650
Inputs
Inputs
Laser On/ Off
Outputs
Electrical design
PNP/NPN;(parameterisable)
Output function
2 x normally open / normally closed;(parameterisable)
Max. current load per output [mA]
100
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Operating mode: FINE
Switching frequency DC [Hz]
20
Operating mode: STD
Switching frequency DC [Hz]
40
Operating mode: FAST
Switching frequency DC [Hz]
60
Detection zone
Max. light spot diameter [mm]
5
Light spot dimensions refer to
at maximum range
Background suppression [m]
< 20
Measuring/setting range
Setting range object reflectivity [%]
6...900;(reflectivity; 6 % black paper; 100 % white paper)
Operating mode: FINE
Measuring range [m]
0.05...2
Sampling rate [Hz]
60
Operating mode: STD
Measuring range [m]
0.05...2
Sampling rate [Hz]
120
Operating mode: FAST
Measuring range [m]
0.05...1
Sampling rate [Hz]
180
Software / programming
Parameter setting options
Distance / reflectivity; hysteresis / window; Sensitivität; current/voltage output; Sequence modulation to avoid mutual interference by similar sensors
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1.3
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
5
IO-Link process data (cyclical)
function
bit length
process value
2 x 16
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs
Type of operation
DeviceID
default
1581
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
-25...60
Note on ambient temperature
In ambient temperatures < -10 °C a warm-up time is necessary.
Laser is off.
Storage temperature [°C]
-30...80
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
Hysteresis graph for distance measurement / operating mode: FINE
1:
Background any (6...90 % remission)
2:
background white (90 % remission)
Hysteresis graph for distance measurement / operating mode: STD
1:
Background any (6...90 % remission)
2:
background white (90 % remission)
Hysteresis graph for distance measurement / operating mode: FAST
1:
Background any (6...90 % remission)
2:
background white (90 % remission)
1:
bright
2:
dark
A:
switch point
B:
reset point
x:
object brightness ( object reflectivity )
y:
min. reflectivity difference to be detected safely
hysteresis curve for object reflectivity
Other data
Parameter
Setting range
Factory setting
SEL1
Dist / Refl
Dist
OU1
Hno, Hnc, Fno, Fnc.OFF
Hno
SP1 [mm]
50...2000
1000
SP1 [%]
6...900
10
nSP1 [mm]
50...2000
900
FSP1 [cm]
50...2000
1100
SF1 [mm]
10...500
50
bSP1 [%]
6...900
40
dSP1 [%]
6...900
30
SF1 [%]
1...100
10
dS1 [s]
0…0.1…5
0
dr1 [s]
0…0.1…5
0
SEL2
Dist / Refl
Dist
OU2
Hno, Hnc, Fno, Fnc, OFF
Hno
SP2 [mm]
50…2000
2000
SP2 [%]
6…900
6
nSP2 [mm]
50…2000
1800
FSP2 [mm]
50…2000
2000
SF2 [mm]
10…500
50
bSP2 [%]
6…900
20
dSP2 [%]
6…900
10
SF2 [%]
1…100
10
dS2 [s]
0…0.01...5
0
dr2 [s]
0…0.01...5
0
dSO [s]
0…0.01...5
0.1
diS
On / OFF
On
colr
rEd; GrEn; r1ou; G1ou; r2ou; G2ou; r-12; G-ou
G1ou
P-n
PNP,NPN
PNP
OPEr (operating mode)
FINE,STD, FAST
FINE
SEQ
auto; S1...S5
auto
The values apply at
Extraneous light on the object
< 10 klx
constant ambient conditions
23 °C / 960 hPa
minimum power-on time in minutes
15
