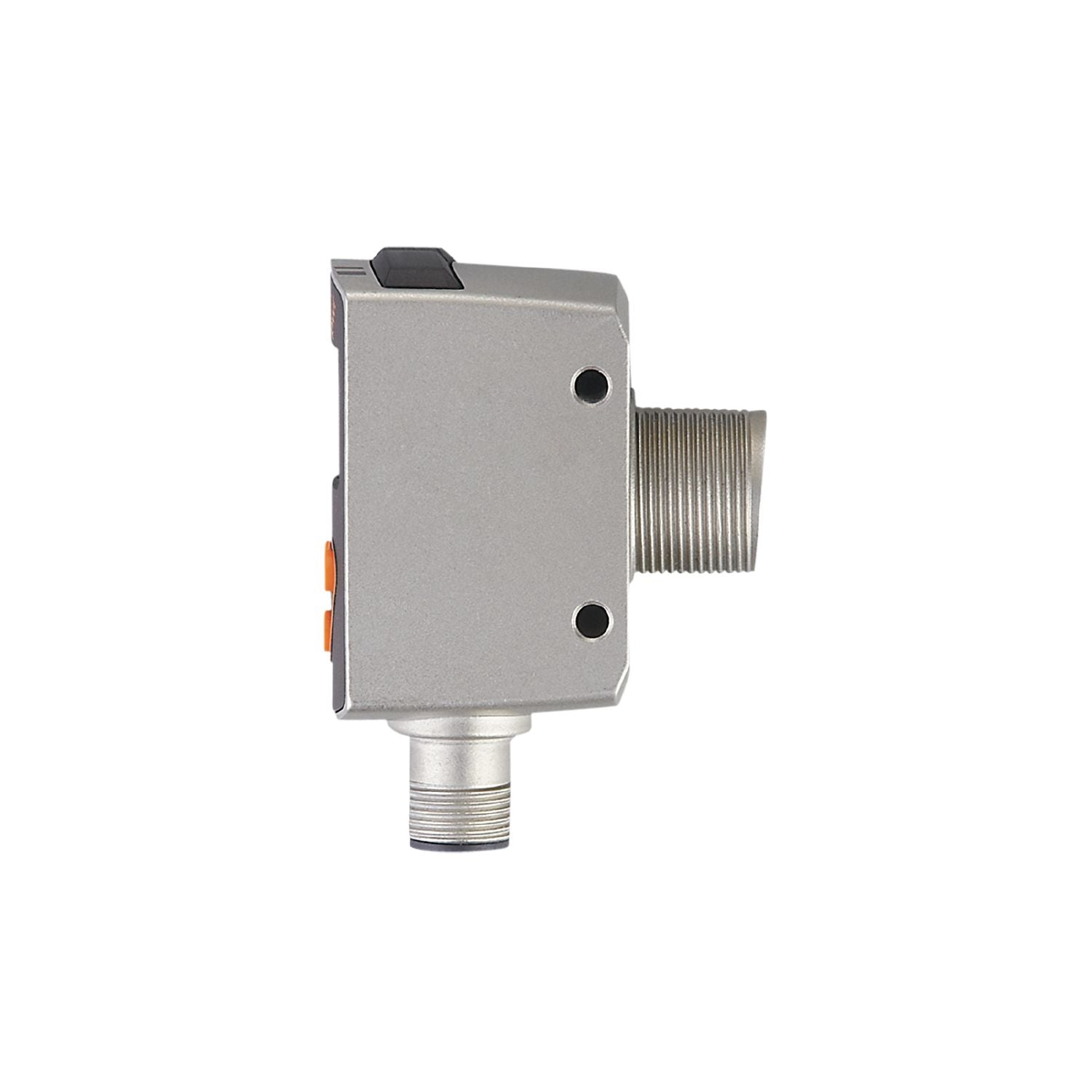

IFM OGD582 - Photoelectric distance sensor OGDLFPKG/IO-LINK/US

Simultaneous output of distance value and reflectivity for increased process reliability.
Identification and sorting by differentiating between colour/contrast and distance/height of objects.
Flexible installation options thanks to a range of up to 1.5 m

Type of light	red light
Laser protection class	1
Housing	rectangular with M18 thread

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 75;(24 V)
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	650
Typ. lifetime [h]	50000

Inputs

Inputs	Laser On/ Off

Outputs

Electrical design	PNP
Output function	2 x normally open / normally closed;(parameterisable)
Max. current load per output [mA]	100
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Max. light spot diameter [mm]	5
Light spot dimensions refer to	at maximum range
Background suppression [m]	< 20

Measuring/setting range

Measuring range [m]	0.085...1.5
Setting range object reflectivity [%]	6...900;(reflectivity; 6 % black paper; 100 % white paper)
Sampling rate [Hz]	33

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	5
IO-Link process data (cyclical)	function bit length process value 2 x 16 device status 4 binary switching information 2
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs	Type of operation DeviceID default 926
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...60
Note on ambient temperature	In ambient temperatures < -10 °C a warm-up time is necessary. Laser is off.
Storage temperature [°C]	-30...80
Protection	IP 65; IP 67

Tests / approvals

Laser protection class	1
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	217
UL approval	Ta -25...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	229.8
Housing	rectangular with M18 thread
Dimensions [mm]	61.7 x 22.5 x 45.2
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: glass
Lens alignment	side lens

Displays / operating elements

Display	switching status 2 x LED, yellow 1 x alphanumeric display, 3-digit
Operating elements	3 pushbutton

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]

hysteresis curve for distance measurement	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = background (black 6 % remission) 2 = background white (90 % remission)

	1: bright 2: dark A: switch point B: reset point x: object brightness ( object reflectivity ) y: min. reflectivity difference to be detected safely

hysteresis curve for object reflectivity	x: object reflectivity ( 0..900 % ) y: Hysteresis [%] 1 = optional hysteresis curve ( high ) 2 = Hysteresis Factory setting( low )
