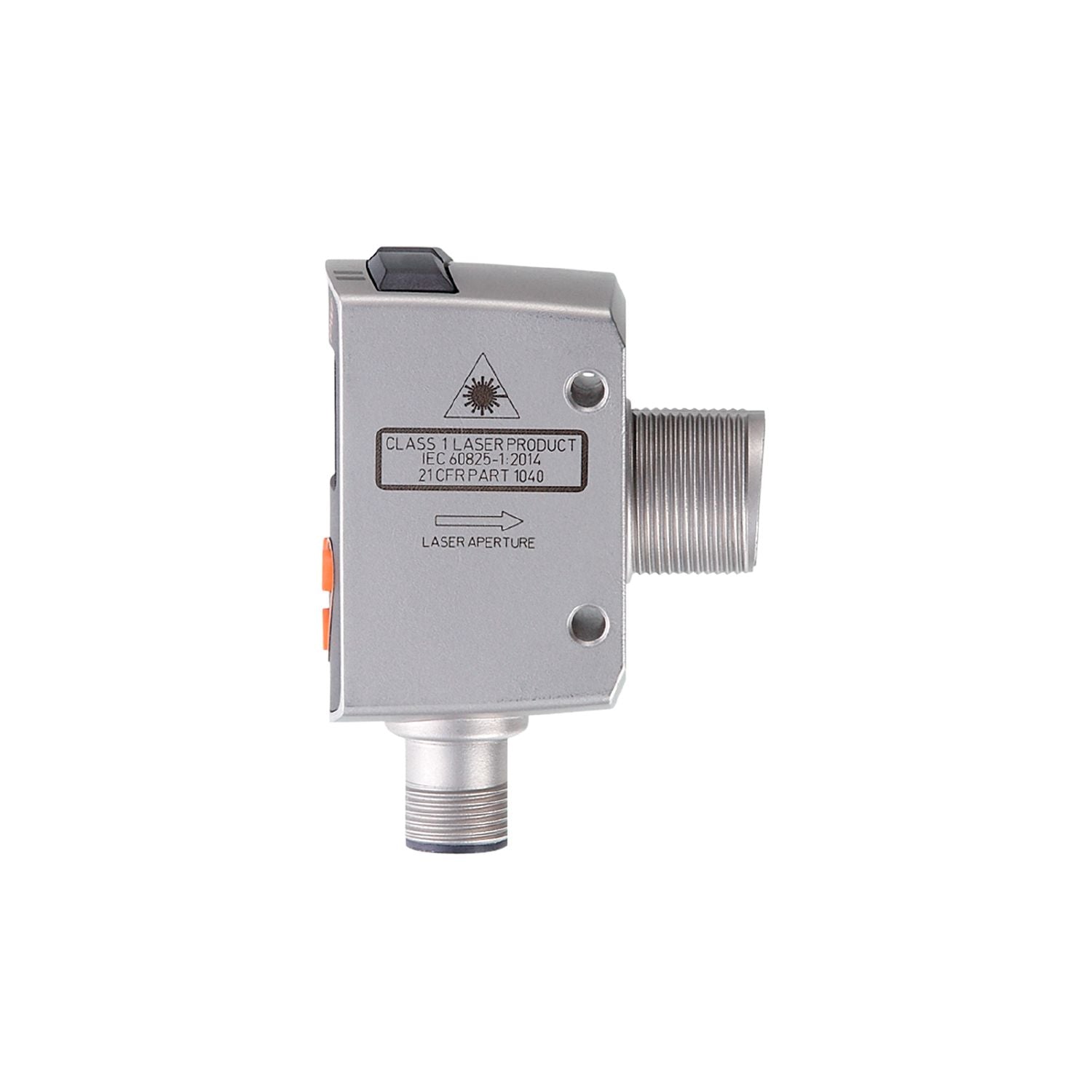

IFM OGD583 - Photoelectric distance sensor OGDLFPKG/IO-LINK/US

Shatterproof plastic front pane.
Simultaneous output of distance value and reflectivity for increased process reliability.
Identification and sorting of objects based on reflectivity

Type of light	red light
Laser protection class	1
Housing	rectangular with M18 thread

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 75;(24 V)
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	650
Typ. lifetime [h]	50000

Inputs

Inputs	Laser On/ Off

Outputs

Electrical design	PNP
Output function	2 x normally open / normally closed;(parameterisable)
Max. current load per output [mA]	100
Switching frequency DC [Hz]	11
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	< 1500
Max. light spot diameter [mm]	5
Light spot dimensions refer to	at maximum range
Background suppression [m]	< 20

Measuring/setting range

Measuring range [m]	0.08...1.5
Setting range distance [m]	0.085...1.5
Setting range object reflectivity [%]	6...900;(reflectivity; 6 % black paper; 100 % white paper)
Sampling rate [Hz]	33

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	5
IO-Link process data (cyclical)	function bit length process value 2 x 16 device status 4 binary switching information 2
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter
Supported DeviceIDs	Type of operation DeviceID default 926
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...60
Note on ambient temperature	In ambient temperatures < -10 °C a warm-up time is necessary. Laser is off.
Storage temperature [°C]	-30...80
Protection	IP 65; IP 67

Tests / approvals

Laser protection class	1
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	217
UL approval	Ta -20...60 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	229.15
Housing	rectangular with M18 thread
Dimensions [mm]	61.7 x 22.5 x 45.2
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 2 x LED, yellow 1 x alphanumeric display, 3-digit
Operating elements	3 pushbutton

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

hysteresis curve for object reflectivity

hysteresis curve for distance measurement

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]
