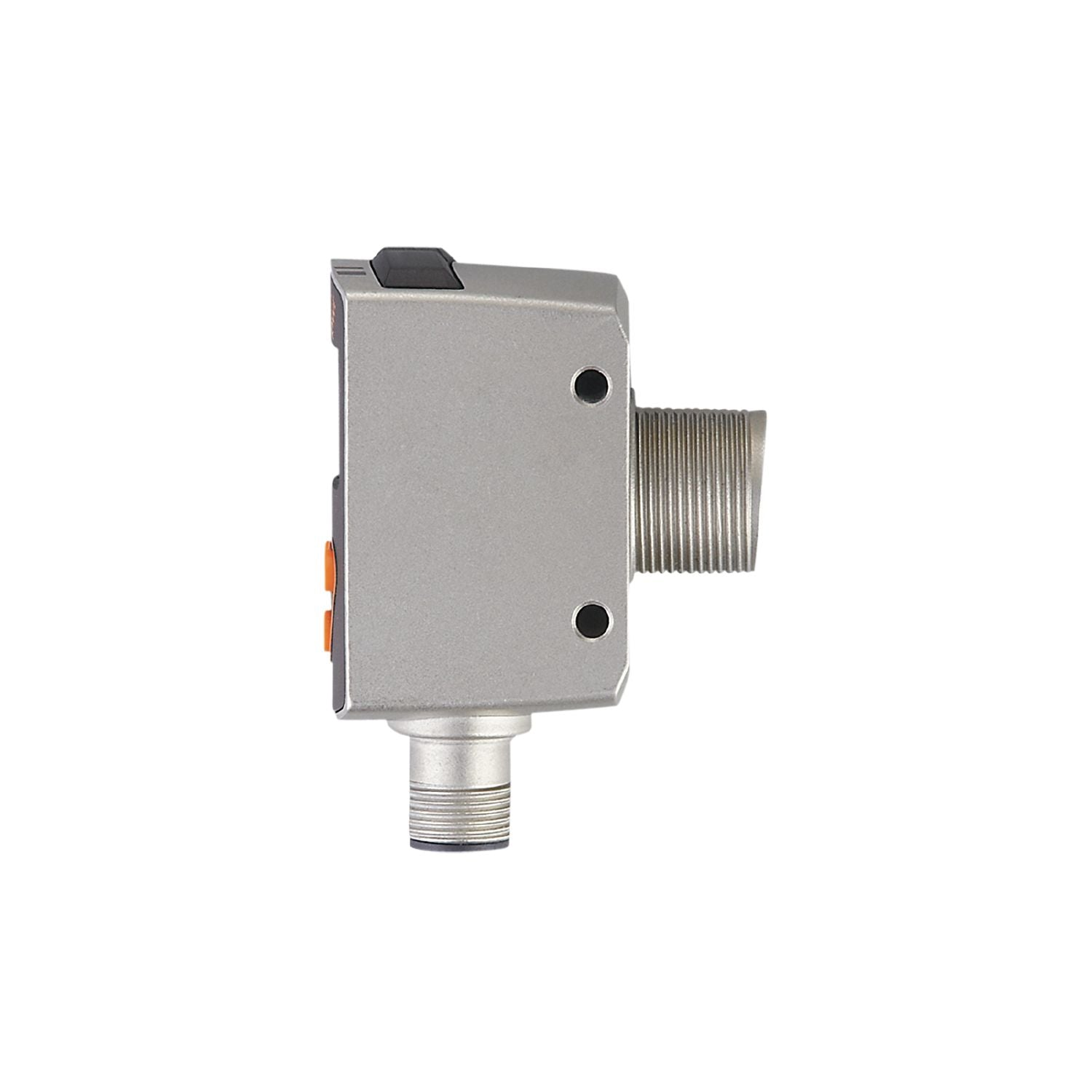

IFM OGD585 - Photoelectric distance sensor OGDLFPKG/IO-LINK/US

Small compact design with standard M18 thread and PMD time-of-flight technology.
Long range.
Colour-independent range.
Sensors with laser protection class 1 - e.g. for the automotive industry

Type of light	red light
Laser protection class	1
Housing	rectangular with M18 thread

Application [m]	0.03...1.5

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 75;(24 V)
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	650
Typ. lifetime [h]	50000

Outputs

Electrical design	PNP
Output function	2 x normally open / normally closed;(parameterisable)
Permanent current rating of switching output DC [mA]	100;(per output)
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	1500
Max. light spot width [mm]	5
Max. light spot height [mm]	5
Light spot dimensions refer to	at maximum range
Background suppression [m]	0.03...20

Measuring/setting range

Measuring range [m]	0.025...1.5
Sampling rate [Hz]	33

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode	yes
Required master port type	A
Process data analogue	2
Process data binary	2
Min. process cycle time [ms]	6
Supported DeviceIDs	Type of operation DeviceID default 1065

Operating conditions

Ambient temperature [°C]	-25...60
Note on ambient temperature	In ambient temperatures < -10 °C a warm-up time is necessary. Laser is off.
Storage temperature [°C]	-30...80
Protection	IP 65; IP 67

Tests / approvals

EMC	EN 60947-5-2
Laser protection class	1
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	171

Weight [g]	205.5
Housing	rectangular with M18 thread
Dimensions [mm]	61.7 x 22.5 x 45.2
Thread designation	M18 x 1
Materials	housing: stainless steel (1.4404 / 316L); PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: glass
Lens alignment	side lens

Displays / operating elements

Display	switching status 2 x LED, yellow 1 x alphanumeric display, 3-digit

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

hysteresis curve for distance measurement	x: distance sensor/object [mm] y: min. distance object/background [mm] 1 = background (black 6 % remission) 2 = background white (90 % remission)

	a: sensor b: object c: background x: distance sensor/object [mm] y: min. distance object/background [mm]
