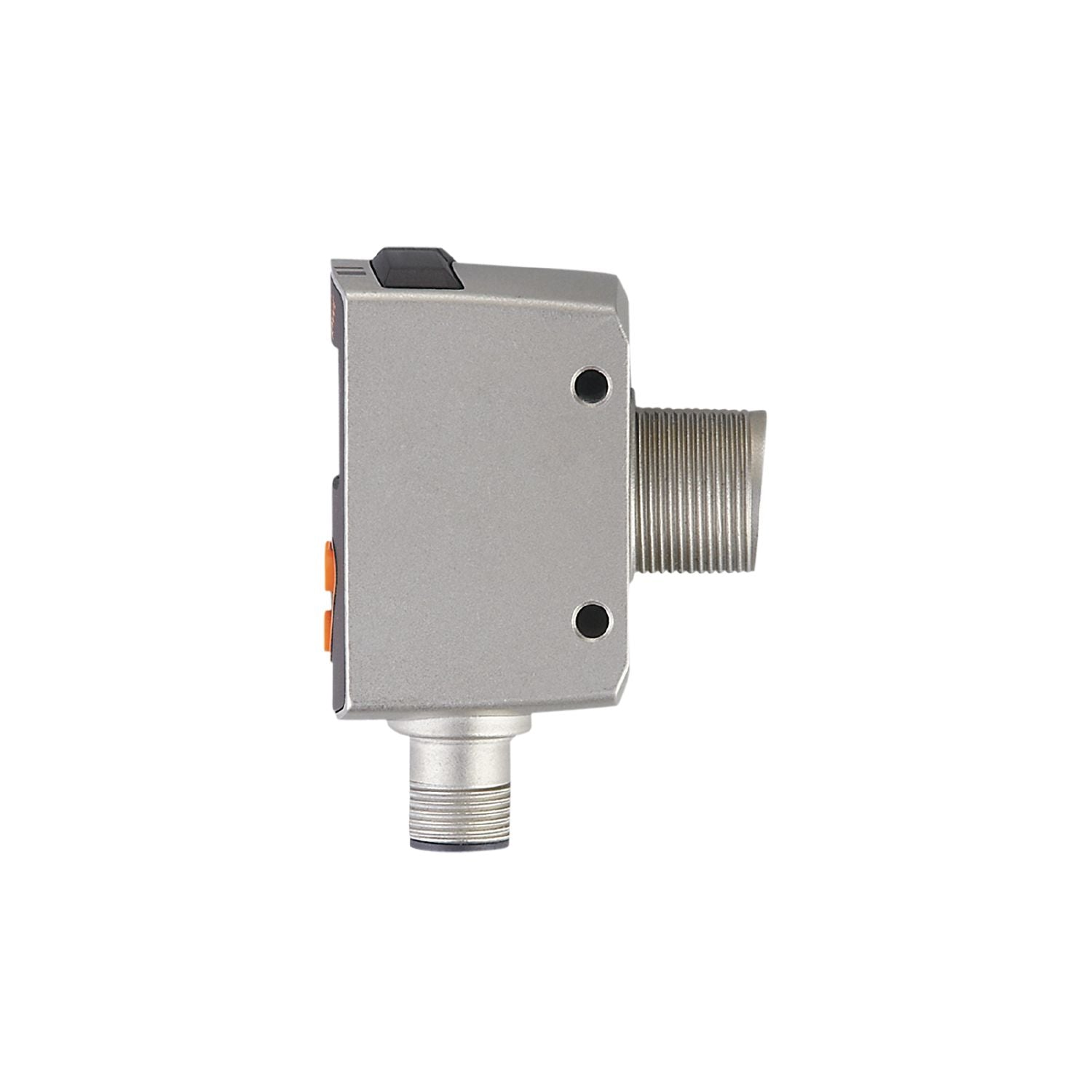

Small compact design with standard M18 thread and PMD time-of-flight technology. Measurement to the nearest millimetre and monitoring of distances in the running process. Easy setting with 3 buttons or IO-Link
Type of light
red light
Laser protection class
1
Housing
rectangular with M18 thread
Application [m]
0.03...0.3
Operating voltage [V]
10...30 DC;("supply class 2" to cULus)
Current consumption [mA]
< 75;(24 V)
Protection class
III
Reverse polarity protection
yes
Type of light
red light
Wave length [nm]
650
Typ. lifetime [h]
50000
Outputs
Electrical design
PNP
Output function
2 x normally open / normally closed;(parameterisable)
Permanent current rating of switching output DC [mA]
100;(per output)
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Max. light spot width [mm]
3
Max. light spot height [mm]
3
Light spot dimensions refer to
at maximum range
Background suppression [m]
0.03...19.2
Measuring/setting range
Measuring range [m]
0.025...0.3
Sampling rate [Hz]
33
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis
SIO mode
yes
Required master port type
A
Process data analogue
2
Process data binary
2
Min. process cycle time [ms]
6
Supported DeviceIDs
Type of operation
DeviceID
default
1012
Operating conditions
Ambient temperature [°C]
-25...50
Note on ambient temperature
In ambient temperatures < -10 °C a warm-up time is necessary.
Laser is off.
Storage temperature [°C]
-30...80
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN / IEC60825-1:2007
EN / IEC60825-1:2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Diagrams and graphs
hysteresis graph
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
1 =
background (black 6 % remission)
2 =
background white (90 % remission)
a:
sensor
b:
object
c:
background
x:
distance sensor/object [mm]
y:
min. distance object/background [mm]
Other data
Parameter
Setting range
Factory setting
Uni
mm, inch
mm
OU1
Hno, Hnc, Fno, Fnc, OFF
Hno
SP1 [mm]
30...300
300
nP1 [mm]
30...300
90
FP1 [mm]
30...300
110
OU2
Hno, Hnc, Fno, Fnc, OFF
Hno
SP2 [mm]
30...300
30
nP2 [mm]
30...300
190
FP2 [mm]
30...300
210
dS1 [s]
0...0.1...5
0
dr1 [s]
0...0.1...5
0
dS2 [s]
0...0.1...5
0
dr2 [s]
0...0.1...5
0
dFo [s]
0...0.1...5
0.1
dIS
ON / OFF
ON
Repeatability: 6 σ
repeatability of the measured values
distance
white (90 % remission)
black (6 %...90 % remission)
25...300 mm
2.0 mm
5.0 mm
The values apply at
Extraneous light on the object
< 10 klx
constant ambient conditions
23 °C / 960 hPa
minimum power-on time in minutes
15
