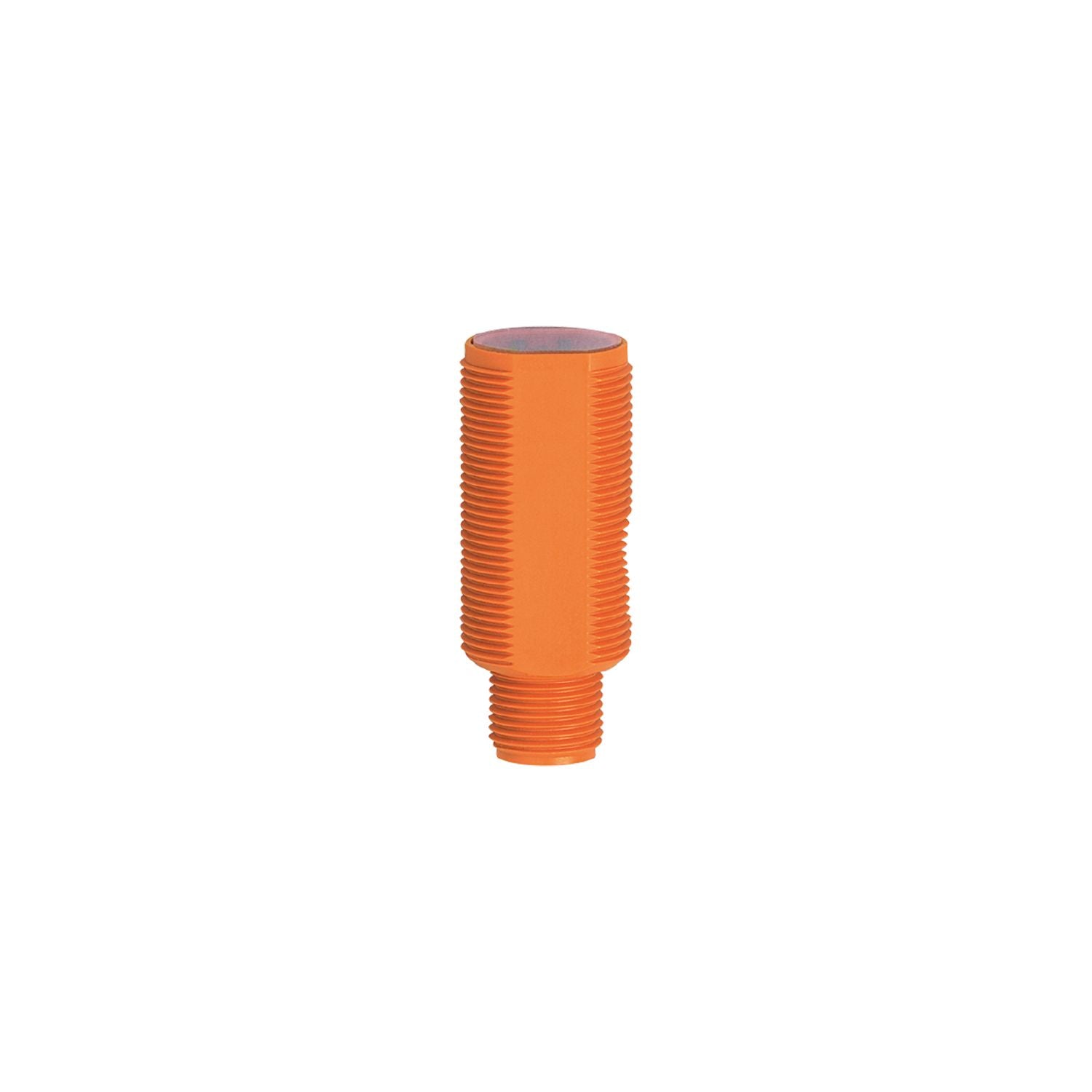

IFM OGS100 - Through-beam sensor transmitter OGS-OOKG/US

Very long range.
For use in conveying and materials handling.
Ready for operation immediately thanks to fixed setting.
Excellent price/performance ratio.
Low-cost alternative to units with metal housing

Type of light	red light
Housing	threaded type

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	20
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	645

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 8
Range adjustable	no
Max. light spot diameter [mm]	600
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67;(in conjunction with a corresponding connector)

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	1899

Weight [g]	14.3
Housing	threaded type
Dimensions [mm]	M18 x 1 / L = 44
Thread designation	M18 x 1
Materials	housing: ABS
Lens material	PMMA

Displays / operating elements

Display	operation 1 x LED, green

Accessories

Items supplied	lock nuts: 2

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
