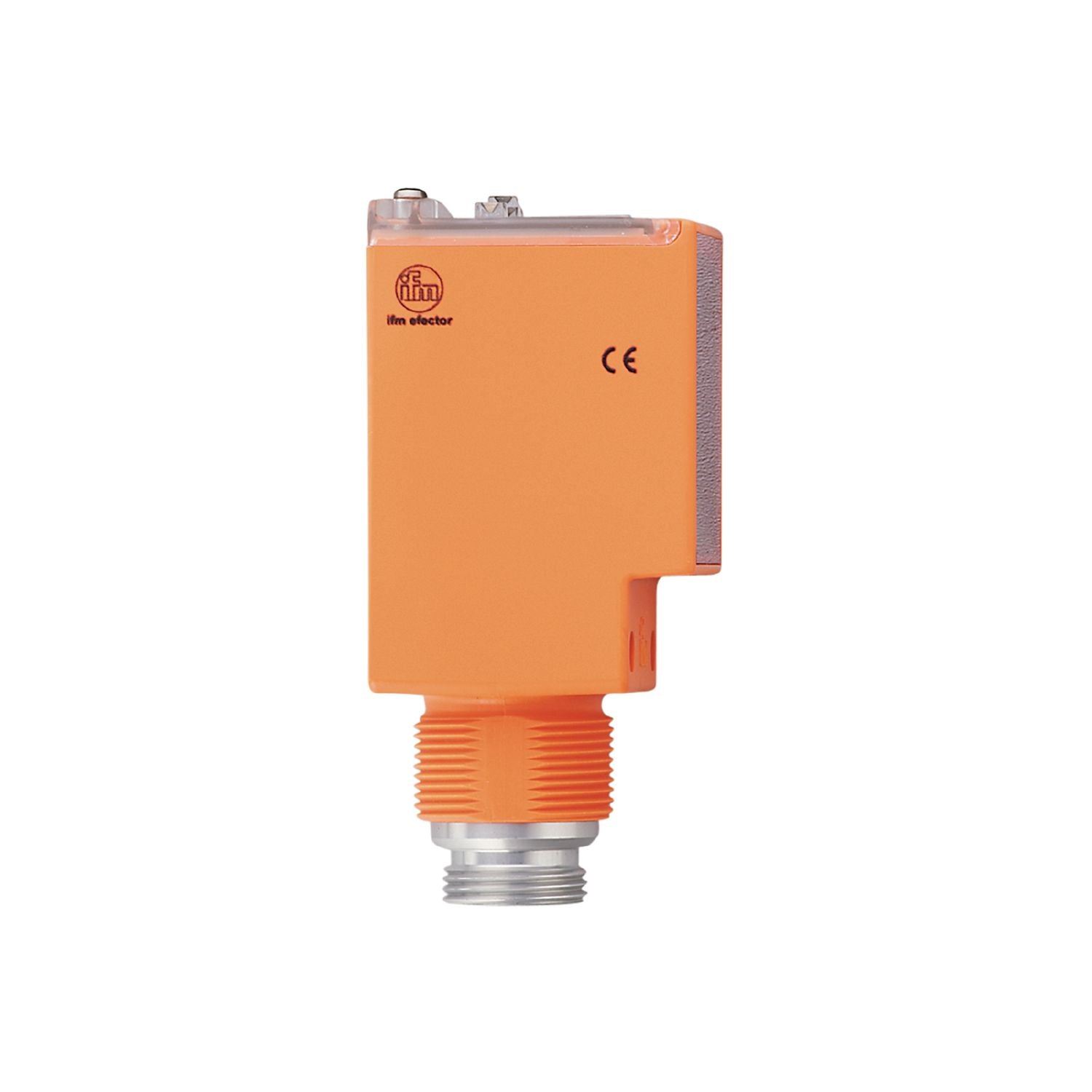

IFM OM0008 - Through-beam sensor receiver OME-FKOW/T/LS-500

Very long range.
Programmable light-on/dark-on mode via pushbutton.
With combined AC/DC output and relay output.
LED display to check operation, switching status and function.
Robust housing for use in harsh industrial environments

Housing	rectangular

Function principle	Through-beam sensor

Frequency AC [Hz]	47...63
Operating voltage [V]	24...240 AC/DC
Max. power consumption [VA]	6
Protection class	II

Outputs

Electrical design	relay
Output function	light-on/dark-on mode;(programmable)
Contact rating	3A / 250 V AC
Switching frequency AC [Hz]	10
Switching frequency DC [Hz]	10
Short-circuit protection	no
Time function [s]	0 / 1 / 5 / 10 / 14

Detection zone

Transmitter / receiver	receiver
Range [m]	< 50
Range adjustable	yes

Response times

Response time [s]	< 10

Operating conditions

Ambient temperature [°C]	-25...40
Protection	IP 67

Weight [g]	204.12
Housing	rectangular
Dimensions [mm]	73 x 45 x 49
Materials	ABS glass fibre reinforced
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green unsafe zone 1 x LED, red

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x 7/8"; coding: A; Locking: aluminium, uncoloured anodised
