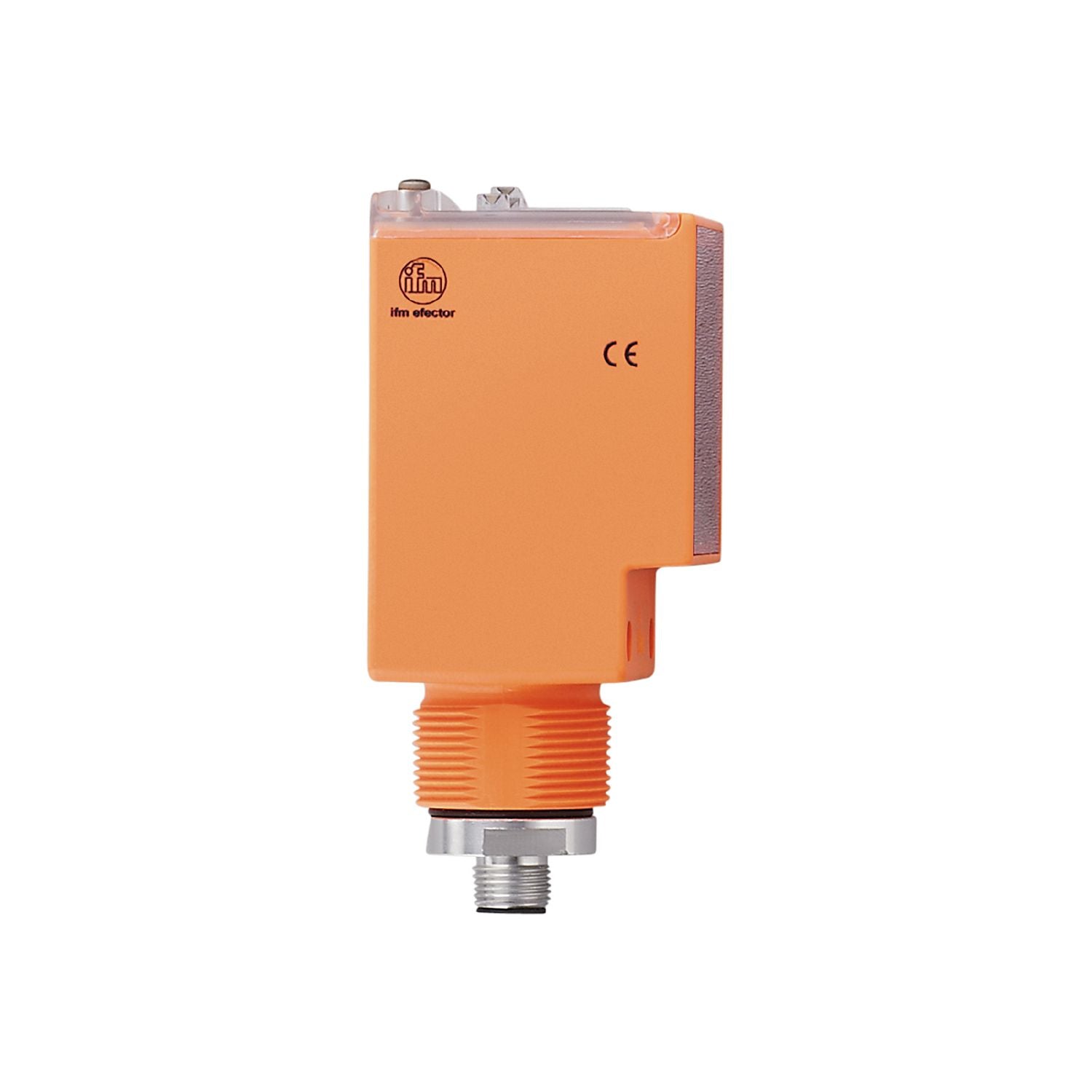

IFM OM5002 - Through-beam sensor receiver OME-FCKG/US-100

Very long range.
Programmable light-on/dark-on mode via pushbutton.
Intuitive setting of the sensitivity via potentiometer.
Robust housing for use in harsh industrial environments.
LED display to check operation, switching status and function

Housing	rectangular

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 80
Protection class	II
Reverse polarity protection	yes

Outputs

Electrical design	PNP/NPN
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2
Max. voltage drop of function check output [V]	2
Max. current load for function check output [mA]	100
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	500
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	< 50
Range adjustable	yes

Response times

Response time [s]	< 1

Operating conditions

Ambient temperature [°C]	-25...40
Protection	IP 67

Tests / approvals

EMC	IEC 1000-4-2/3/4/5/6

Weight [g]	181.2
Housing	rectangular
Dimensions [mm]	73 x 45 x 49
Materials	ABS glass fibre reinforced
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, red

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A; Locking: aluminium, uncoloured anodised

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OM5002-00 — 05.11.2020 —
