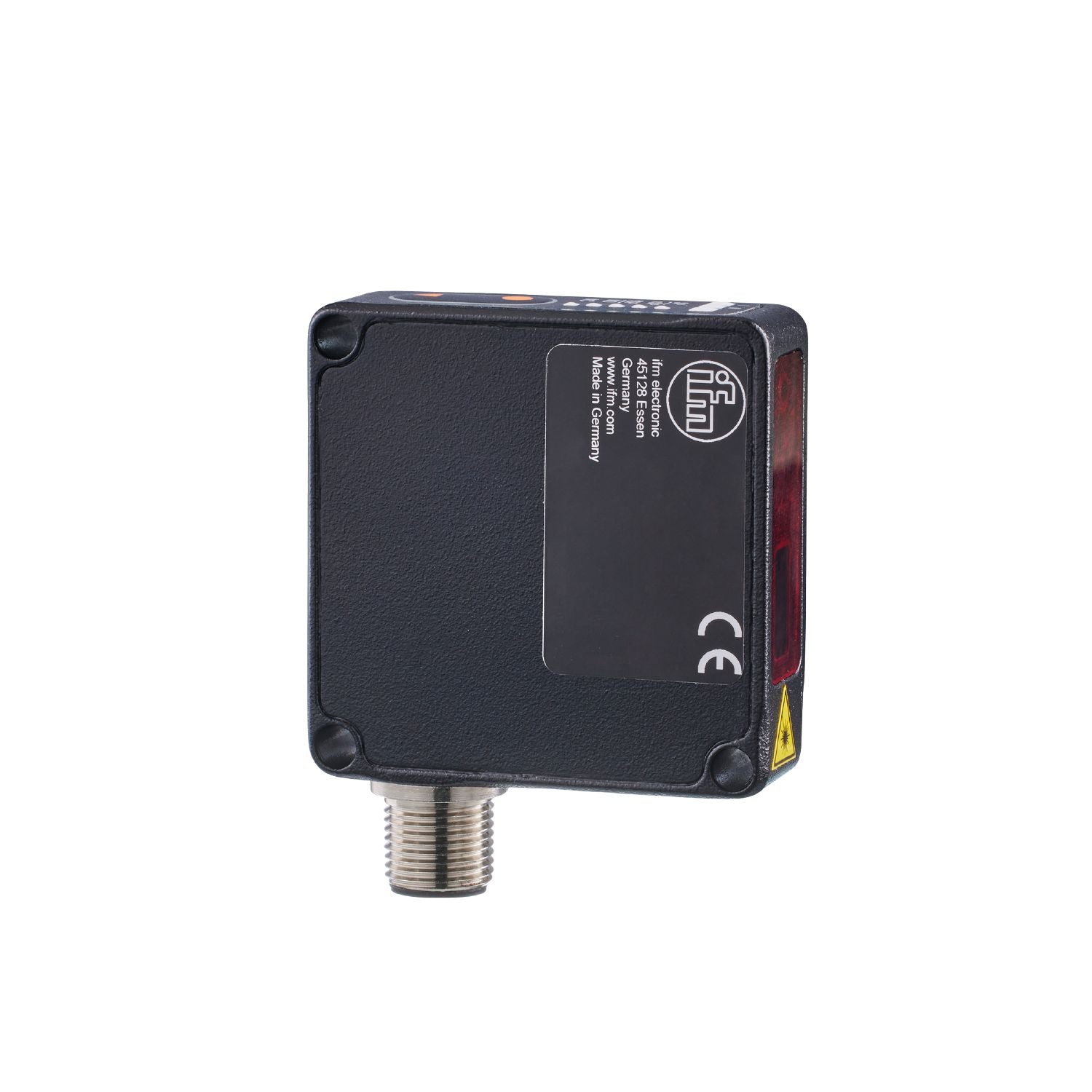

Optical distance measurement in the micrometre range. Two switching outputs. Suitable for high-frequency applications. Three operating modes and a robust, compact design enable a wide range of applications
Type of light
red light
Laser protection class
1
Housing
rectangular
Operating voltage [V]
10...30 DC;("supply class 2" to cULus)
Current consumption [mA]
< 60
Protection class
III
Reverse polarity protection
yes
Power-on delay time [s]
< 0.3
Type of light
red light
Wave length [nm]
630
Typ. lifetime [h]
50000
Inputs / outputs
Number of inputs and outputs
Number of digital inputs: 1; Number of digital outputs: 2
Inputs
Inputs
Laser On/ Off
Number of digital inputs
1
Outputs
Total number of outputs
2
Electrical design
PNP/NPN;(parameterisable)
Number of digital outputs
2
Output function
normally open / normally closed;(parameterisable)
Max. voltage drop switching output DC [V]
2.2
Permanent current rating of switching output DC [mA]
100
Switching frequency DC [Hz]
200
Notes on switching frequency [Hz]
standard
Short-circuit protection
yes
Overload protection
yes
Detection zone
Range adjustable
yes
Max. light spot diameter [mm]
1
Light spot dimensions refer to
at maximum range
Measuring/setting range
Measuring range [m]
0.05...0.2;(6...90% remission)
Accuracy / deviations
Temperature compensation
yes
Repeatability [mm]
0.1
Resolution [mm]
0,05
Notes on the accuracy / deviation
The indicated values are reached after a warm-up time of 20 minutes.
Software / programming
Parameter setting options
hysteresis / window / 2-point; Switch-on and switch-off delay; switch-on operations; Teach function; filter; light-on/dark-on mode; laser switch-off; Type of operation
Interfaces
Communication interface
IO-Link
Transmission type
COM2 (38,4 kBaud)
IO-Link revision
1.1
SDCI standard
IEC 61131-9
Profiles
Measuring and Switching Sensor, 1 channel, Identification and Diagnosis, Sensor Control, Teach two value, Locator, ProductURI
SIO mode
yes
Required master port type
A
Min. process cycle time [ms]
3.2
IO-Link process data (cyclical)
function
bit length
process value
16
device status
4
binary switching information
2
IO-Link functions (acyclical)
application specific tag; operating hours counter
Supported DeviceIDs
Type of operation
DeviceID
default
1607
Note
For further information please see the IODD PDF file under "Downloads"
Operating conditions
Ambient temperature [°C]
0...60
Storage temperature [°C]
-10...65
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD
4 kVCD / plastics
8 kV AD / metal
EN 61000-4-3 HF radiated
10 V/m
EN 61000-4-6 HF conducted
10 V
EN 61000-4-4 Burst
2 kV
EN 55011
class B
Vibration resistance
EN 60068-2-6 Fc
(10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance
EN 60068-2-27 Ea
30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Laser protection class
1
Notes on laser protection
Caution:
laser light
laser class:
1
EN/IEC 60825-1 2007
EN/IEC 60825-1 2014
Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]
572
UL approval
power supply
Class 2
Weight [g]
127
Housing
rectangular
Dimensions [mm]
51 x 51 x 17
Materials
housing: diecast zinc; front pane: plastics
Tightening torque [Nm]
5
Displays / operating elements
Display
switching status
2 LED, yellow
supply voltage
1 LED, green
Operating mode
5 LED, white
Teach function
yes
Remarks
operating voltage "supply class 2" according to cULus
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OMH552-00 — 08.11.2022 —
