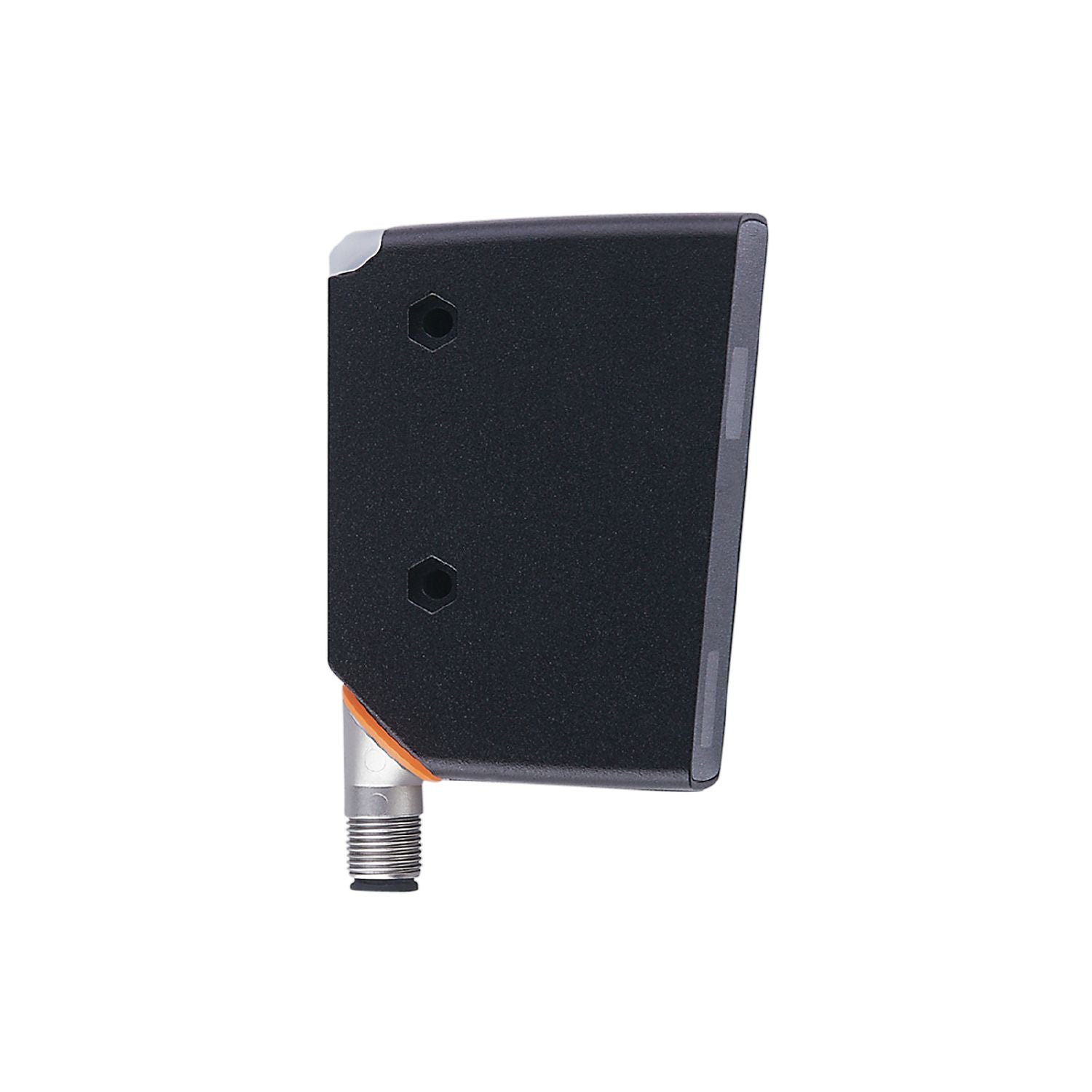

IFM OPD101 - profile sensor OPDLFPKG

Inline quality control checks to ensure correct assembly of parts.
Quick set-up without software.
Universal use due to colour independence and insensitivity to extraneous light.
Software-supported fault analysis with profile visualisation and measured values.
Up to 10 selectable profiles offer increased flexibility

Type of light	red light
Laser protection class	1

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Current consumption [mA]	< 200;(10 V)
Protection class	III
Reverse polarity protection	yes
Power-on delay time [s]	2
Type of light	red light
Wave length [nm]	650

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 1; Number of digital outputs: 2

Inputs

Trigger	external
Number of digital inputs	1

Outputs

Electrical design	PNP/NPN;(parameterisable)
Number of digital outputs	2
Output function	2 x normally open / normally closed;(parameterisable)
Max. current load per output [mA]	100
Type of short-circuit protection	pulsed
Overload protection	yes

Measuring/setting range

Measuring distance (Z-direction) [mm]	150...300
Width of the measuring range (X-direction) at min. measuring distance [mm]	45;(distance = 150mm)
Width of the measuring range (X-direction) at max. measuring distance [mm]	90;(distance = 300mm)
Sampling rate [Hz]	5

Accuracy / deviations

Measured value resolution	Z-direction 200 µm X-direction 250 µm
Accuracy	Z-direction ± 500 µm X-direction ± 500 µm background white (90 % remission)

Software / programming

Number of profiles which can be stored	10
Number of regions of interest	2

Interfaces

Communication interface	IO-Link
Transmission type	COM3 (230,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	2.3
IO-Link process data (cyclical)	function bit length process value 16 device status 4 binary switching information 1
IO-Link functions (acyclical)	operating hours counter; number of trigger events; ROI setting
Supported DeviceIDs	Type of operation DeviceID default 1260
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-10...55
Storage temperature [°C]	-40...60
Protection	IP 65
Max. immunity to extraneous light [klx]	20

Tests / approvals

EMC	EN 60947-5-2
Laser protection class	1
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	155
UL approval	Ta -10...55 °C Enclosure type Type 1 power supply Class 2 File number UL E174191

Weight [g]	534.5
Dimensions [mm]	88 x 65 x 28.5
Materials	housing: diecast zinc; PPSU; ABS; PMMA; PBT / PC; EPDM; front pane: PMMA

Displays / operating elements

Display	switching status 1 x LED, yellow Display operation 1 x LED, green colour display

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

	1 X-direction 2 Z-direction 3 laser beam aperture 4 receiver

Other data
