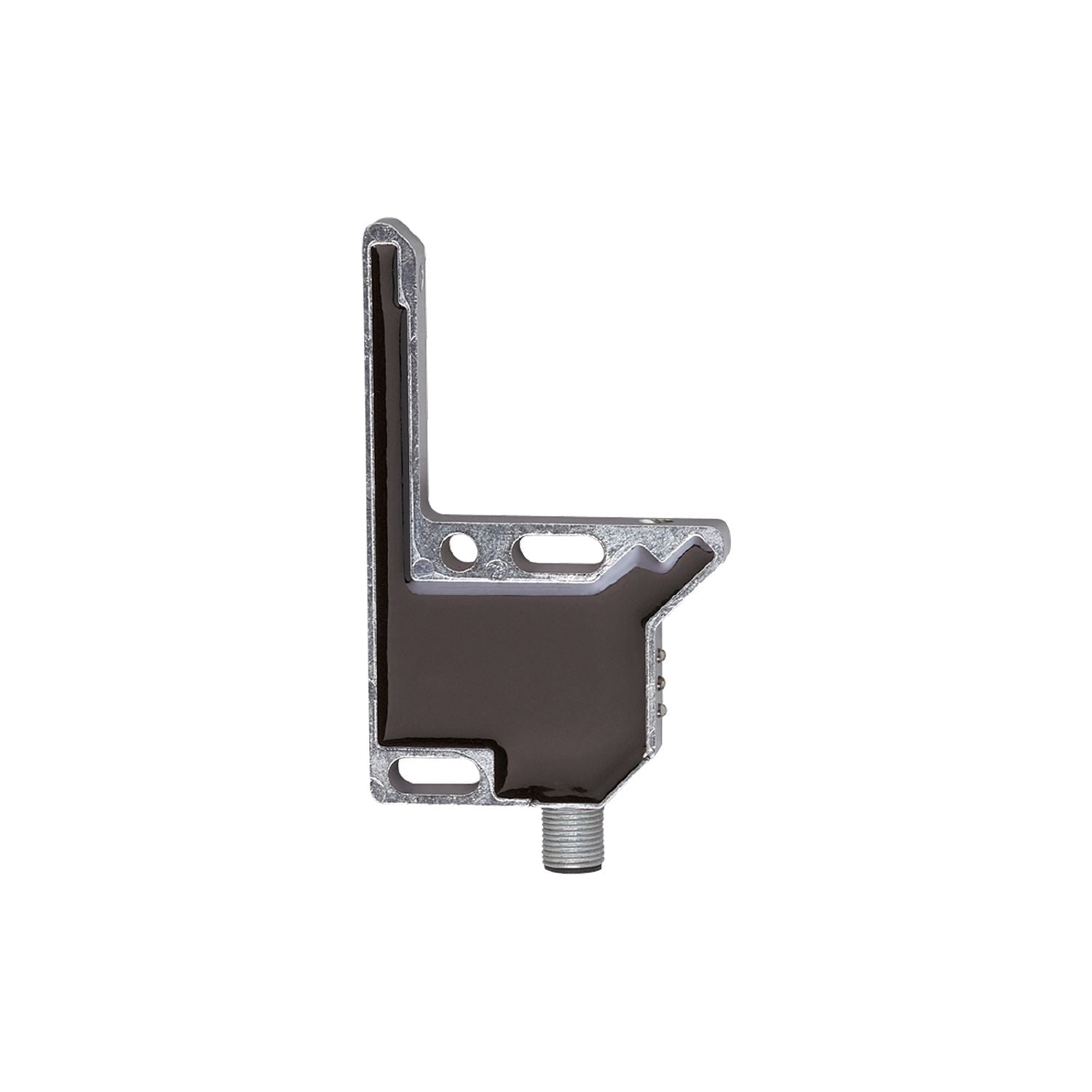

IFM OPL204 - Photoelectric angle sensor OPL-DPKG/US

Quick set-up: no need to align transmitter and receiver.
Fine and precise light beam across the whole fork width.
Metal housing reduces distortion.
Light-on/dark-on mode selectable via rotary switch.
Intuitive setting of the sensitivity via potentiometer

Type of light	red light

Special feature	Function check output

Operating voltage [V]	10...35 DC;("supply class 2" to cULus)
Current consumption [mA]	< 45
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Electrical design	PNP
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2
Function check output	yes
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	200
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2
MTTF [years]	919

Weight [g]	150
Dimensions [mm]	65 x 10 x 106
Side length X [mm]	54
Side length Y [mm]	55
Sensor width Z [mm]	60.46
Materials	housing: diecast zinc; lens: glass

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green function 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
