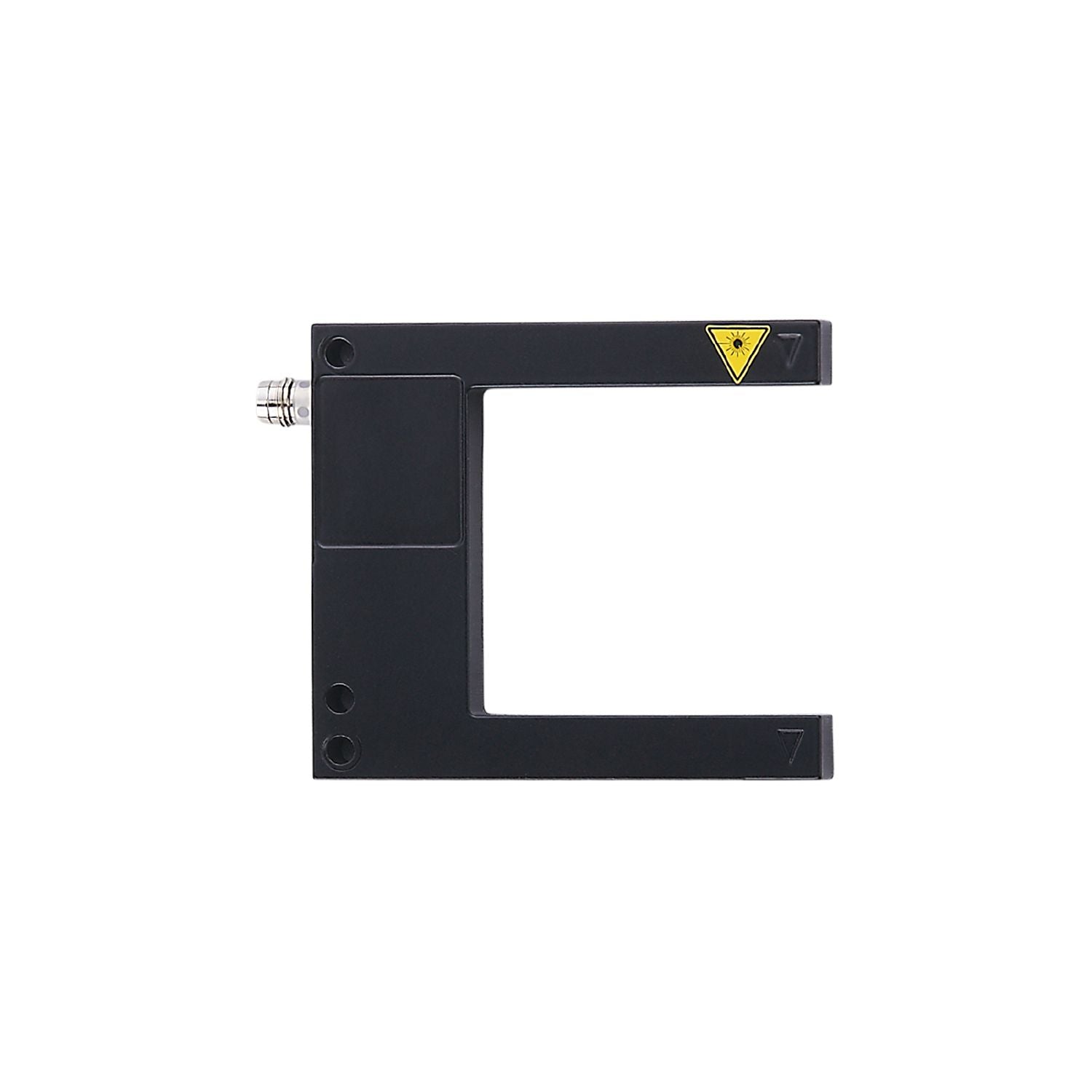

IFM OPU701 - Photoelectric fork sensor OPULFPKG/IO-Link/AS

Reliable detection of tiny objects.
Quick set-up: no need to align transmitter and receiver.
Soiling is signalled by permanent monitoring of the quantity of light.
Operating modes can be set in accordance with the specific application

Type of light	red light
Laser protection class	1

Function principle	Through-beam sensor

Operating voltage [V]	10...30 DC;("supply class 2" to cULus)
Insulation rating [V]	500
Current consumption [mA]	< 30
Protection class	III
Reverse polarity protection	yes
Max. power-on delay time [ms]	150
Type of light	red light
Wave length [nm]	655

Outputs

Electrical design	PNP/NPN;(parameterisable)
Output function	light-on/dark-on mode;(selectable)
Max. voltage drop switching output DC [V]	1
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	5000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Diameter of the smallest detectable object [mm]	0.05

Accuracy / deviations

Repeatability [mm]	0.01

Interfaces

Communication interface	IO-Link
Transmission type	COM2 (38,4 kBaud)
IO-Link revision	1.1
SDCI standard	IEC 61131-9
Profiles	Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel; Process Data Variable
SIO mode	yes
Required master port type	A
Min. process cycle time [ms]	3.2
IO-Link process data (cyclical)	function bit length process value 16 device status 4 binary switching information 1
IO-Link functions (acyclical)	application specific tag; operating hours counter; switching cycles counter; Min./Max. Signalspeicher; Operating mode
Supported DeviceIDs	Type of operation DeviceID default 1209
Note	For further information please see the IODD PDF file under "Downloads"

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	DIN EN 61000-4-2 ESD 4 kV CD / 8 kV AD DIN EN 61000-4-3 HF radiated 10 V/m DIN EN 61000-4-4 Burst 2 kV DIN EN 61000-4-6 HF conducted 10 V DIN EN 55011 Class A
Vibration resistance	EN 60068-2-6 Fc (10-55) Hz 1 mm amplitude, oscillation period 5 min., 30 min. per axis at resonance or 55 Hz
Shock resistance	EN 60068-2-27 Ea 30 g 11 ms half-sine; 3 shocks each in every direction of the 3 coordinate axes
Laser protection class	1
Notes on laser protection	Caution: laser light laser class: 1 EN / IEC60825-1:2007 EN / IEC60825-1:2014 Complies with 21 CFR 1040 except for deviations pursuant to Laser Notice No. 50, dated June 2007.
MTTF [years]	548

Weight [g]	131
Dimensions [mm]	70 x 10 x 80
Fork depth D [mm]	55
Fork width W [mm]	50
Materials	housing: diecast zinc powder-coated; lens: glass

Displays / operating elements

Display	switching status 1 x LED, yellow

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A
