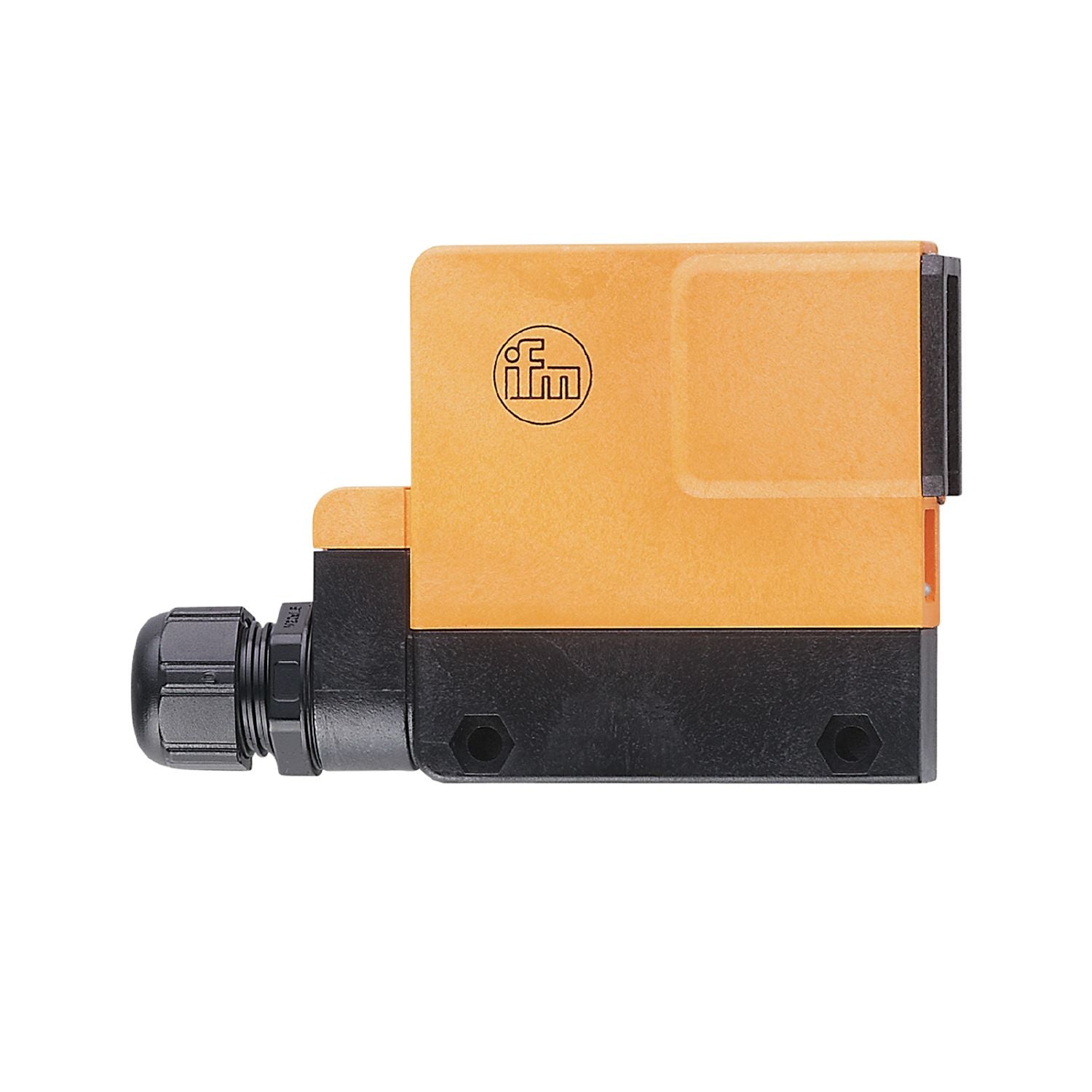

Very long range. Programmable light-on/dark-on mode. With combined AC/DC output and two-wire technology. Robust housing for use in harsh industrial environments. Intuitive setting of the sensitivity via potentiometer
Type of light
infrared light
Housing
rectangular
Function principle
Diffuse reflection sensor
Operating voltage [V]
20...250 AC/DC
Protection class
II
Reverse polarity protection
no
Type of light
infrared light
Wave length [nm]
880
Outputs
Output function
light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]
10.5
Max. voltage drop switching output AC [V]
10.5
Minimum load current [mA]
15
Max. leakage current [mA]
6
Permanent current rating of switching output AC [mA]
250;(350 (...50 °C))
Permanent current rating of switching output DC [mA]
250;(350 (...50 °C))
Short-time current rating of switching output [mA]
2200;(10 ms / 0,5 Hz)
Switching frequency AC [Hz]
25
Switching frequency DC [Hz]
25
Short-circuit proof
no
Overload protection
no
Detection zone
Range [mm]
< 1000;(white paper 200 x 200 mm)
Range adjustable
yes
Operating conditions
Ambient temperature [°C]
-25...80
Protection
IP 65
Tests / approvals
EMC
EN 60947-5-2
EN 55011
class B
MTTF [years]
302
Weight [g]
277
Housing
rectangular
Dimensions [mm]
80 x 28 x 95
Materials
PPO modified
Lens material
glass
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories
Items supplied
Angle bracket: 1, E20210
screwdrivers
Remarks
Recommendation: Check the safe functioning of the unit after a short circuit.
Pack quantity
1 pcs.
Electrical connection
Connection
terminals: ...1.5 mm²; Cable gland: M20 X 1.5
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OS0026-00 — 13.04.2023 —
