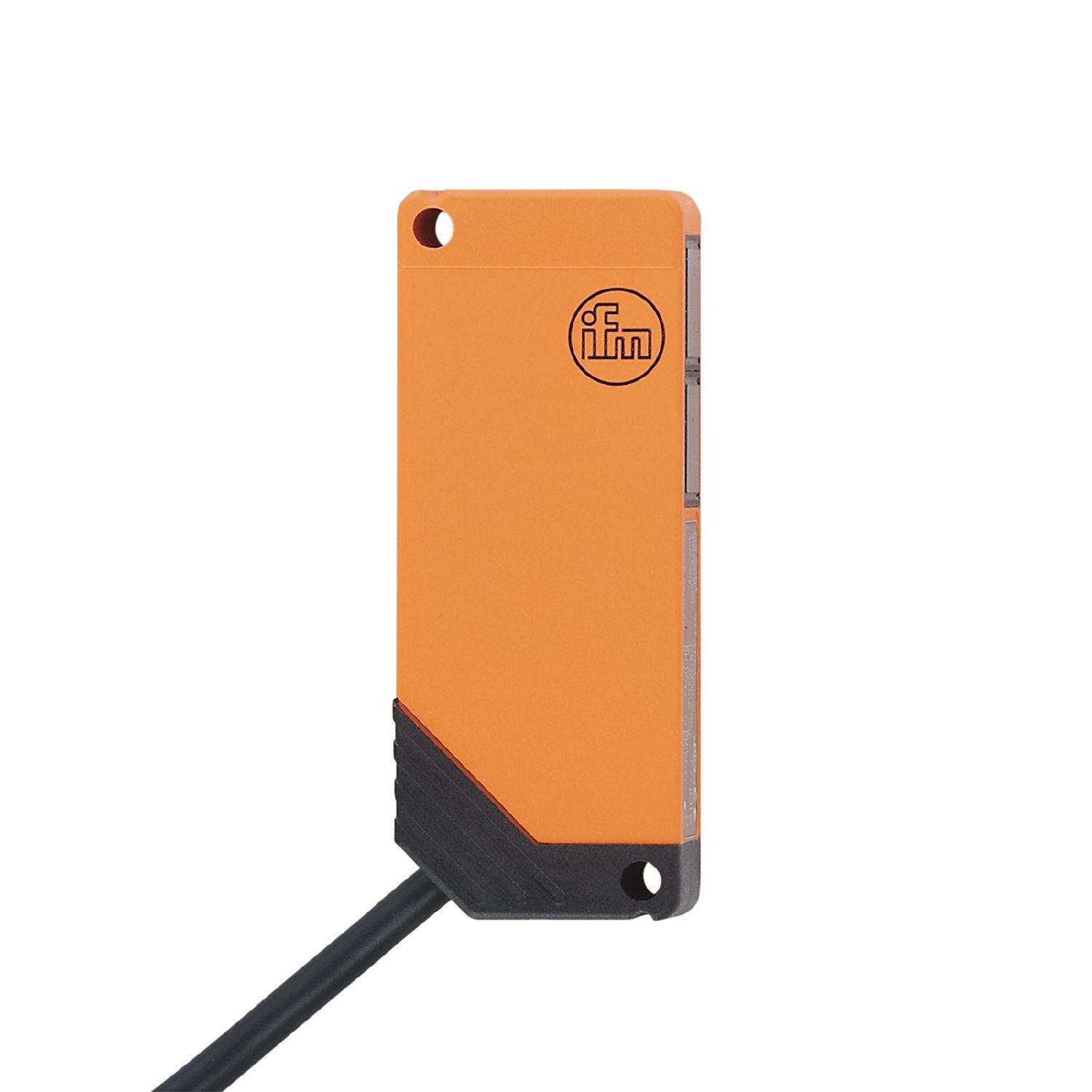

IFM OT5001 - Diffuse reflection sensor OTT-FPKG

Compact housing for use where space is restricted.
Programmable light-on/dark-on mode.
Intuitive setting of the sensitivity via potentiometer.
For use at short range.
LED display to check switching status and operation

Type of light	infrared light
Housing	rectangular

Function principle	Diffuse reflection sensor

Operating voltage [V]	10...55 DC
Current consumption [mA]	40;((24 V))
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode;(programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	150
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	4...200;(white paper 200 x 200 mm)
Range adjustable	yes
Max. light spot diameter [mm]	187
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC	EN 60947-5-2 EN 55011 class B
MTTF [years]	583

Weight [g]	200.5
Housing	rectangular
Dimensions [mm]	75 x 19 x 30
Materials	PBT
Lens material	PMMA
Lens alignment	side lens

Displays / operating elements

Display	switching status 1 x LED, yellow operation 1 x LED, green

Accessories

Items supplied	Angle bracket: 1, E20441 screwdrivers

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.34 mm²

Diagrams and graphs

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OT5001-00 — 13.04.2023 —
