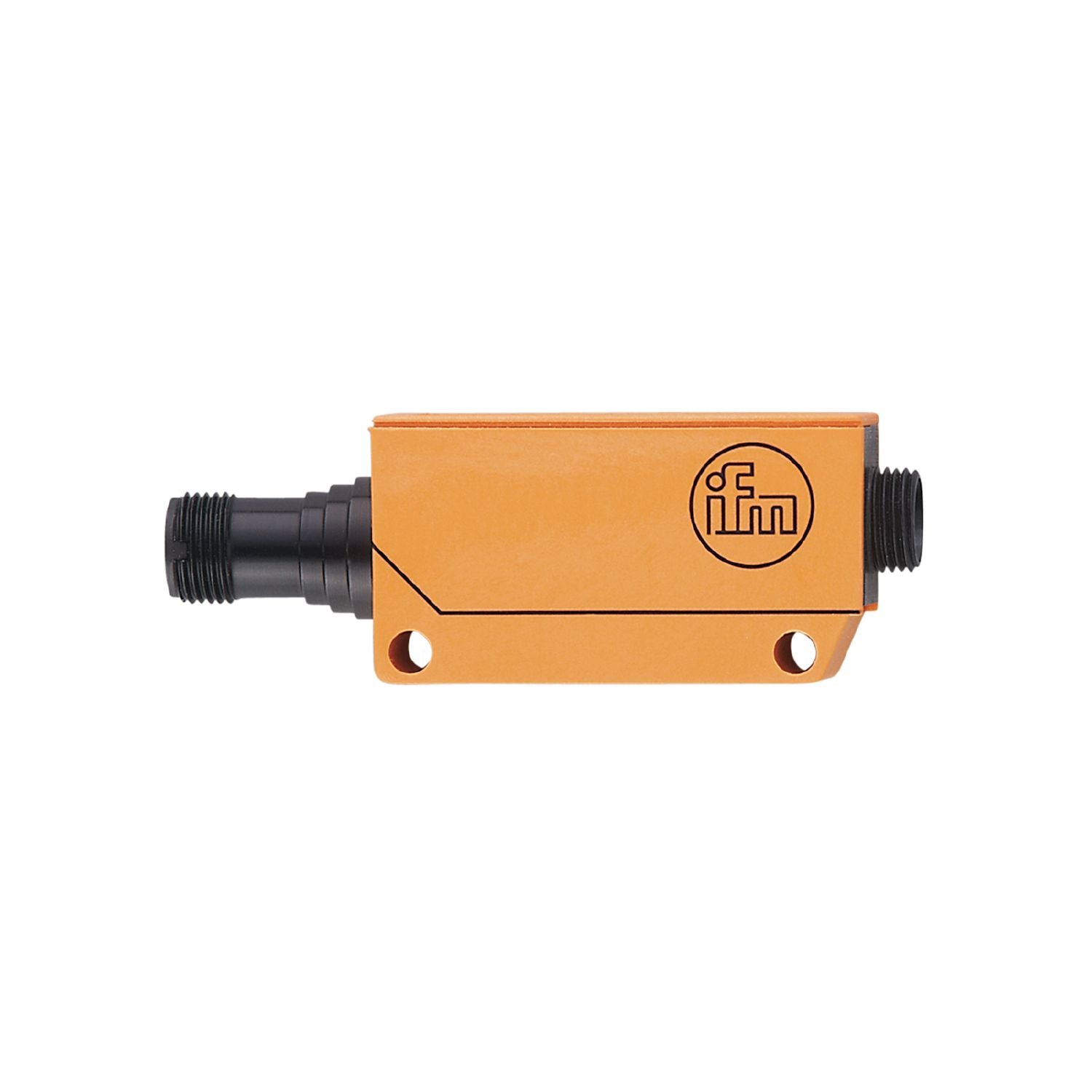

Simple connection of the fibre optics to an amplifier. Operation with inexpensive acrylic fibre optics or high-quality glass fibre optics. Clearly visible indication of the switching status. Intuitive setting of the sensitivity via potentiometer. Compact housing for use where space is restricted
Type of light
infrared light
Housing
rectangular
Operating voltage [V]
10...36 DC
Current consumption [mA]
35;((24 V))
Protection class
III
Reverse polarity protection
yes
Type of light
infrared light
Wave length [nm]
880
Outputs
Electrical design
PNP
Output function
dark-on mode
Max. voltage drop switching output DC [V]
2.5
Permanent current rating of switching output DC [mA]
250
Switching frequency DC [Hz]
100
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
Detection zone
Range [m]
0...0.12;(Through-beam sensor)
Range [mm]
0...40;(Diffuse reflection sensor)
Range adjustable
yes
Operating conditions
Ambient temperature [°C]
-25...80
Protection
IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years]
583
Weight [g]
75
Housing
rectangular
Dimensions [mm]
28 x 16 x 56
Materials
PPO modified
Lens material
glass
Lens alignment
side lens
Displays / operating elements
Display
switching status
1 x LED, yellow
Accessories
Items supplied
Angle bracket: 1, E20211
screwdrivers
Remarks
dark-on mode corresponds to the NO output function for through-beam fibre optics
corresponds to the NC output function for diffuse-reflection fibre optics
Pack quantity
1 pcs.
Electrical connection
Connection
Connector: 1 x M12; coding: A
Diagrams and graphs
excess gain graph
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OU5044-01 — 13.04.2023 —
